Product Overview
The Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount) delivers visually lossless 4K60 wireless video transmission up to 5,000 feet line of sight with less than 1ms of latency. Designed for large-scale broadcast productions, film sets, and live events where extreme range and signal reliability are required, this kit pairs a Gold Mount battery plate on both transmitter and receiver for untethered deployment powered by professional Anton/Bauer-style batteries. The 4.9–6.0 GHz operating band, AES-256 encryption, and cross-compatibility with Bolt 4K series equipment make this a production-grade long-range wireless video solution.
Product Description

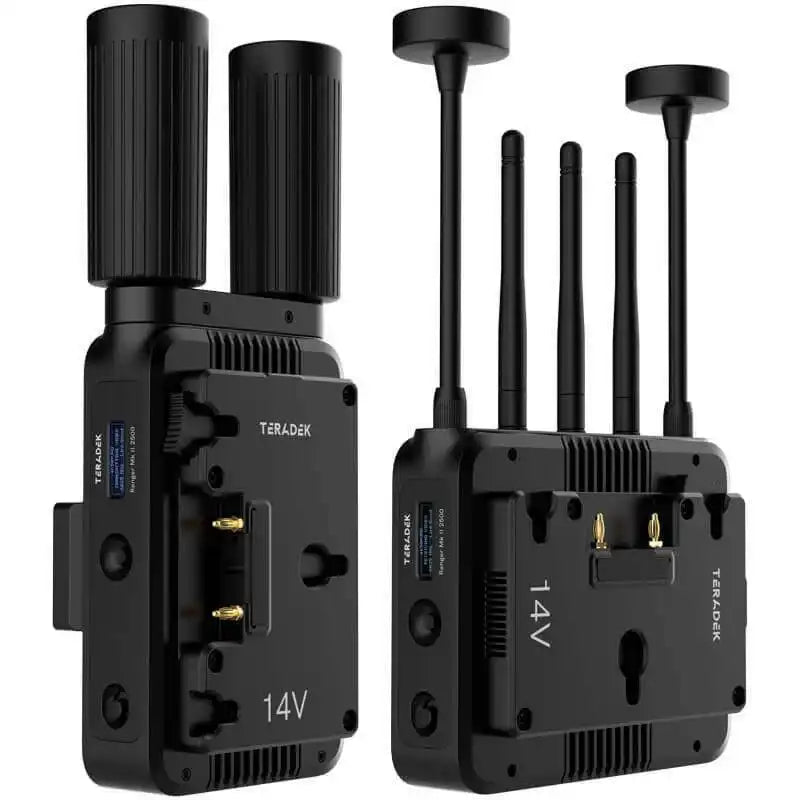

The Ranger MK II 5000 Gold Mount kit transmits uncompressed 4K60 HDR video in 10-bit 4:2:2 with Rec. 2020 color gamut support across distances up to 5,000 feet line of sight. The transmitter accepts 12G-SDI and HDMI 2.0 inputs, provides a 12G-SDI loop output, and sends video to up to six receivers simultaneously — enabling multi-monitor video village setups without additional distribution. The receiver delivers dual 12G-SDI and HDMI outputs for feeding monitors, multiviewers, or broadcast switchers directly.

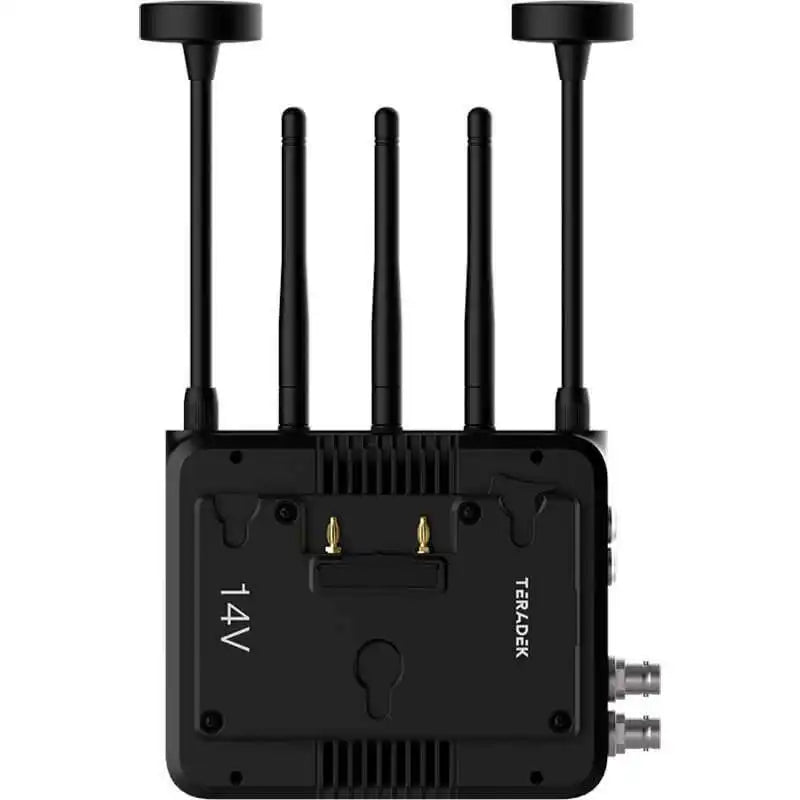

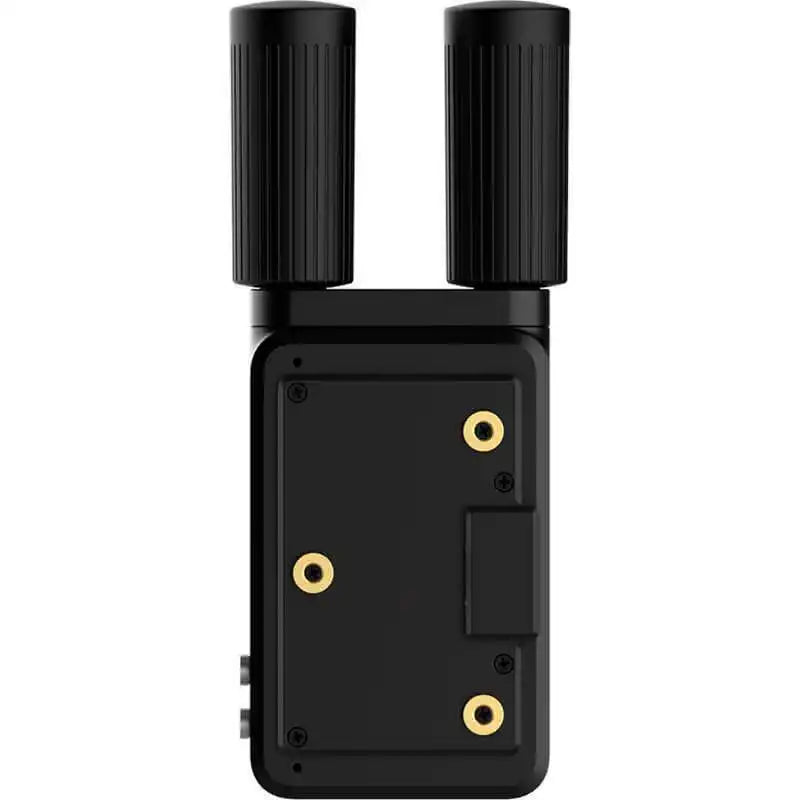

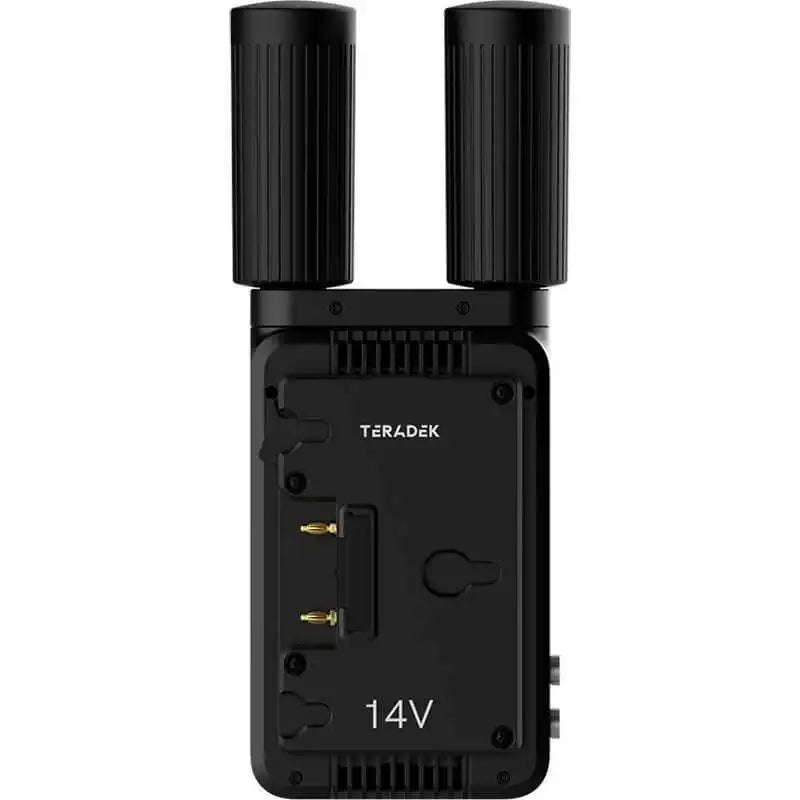

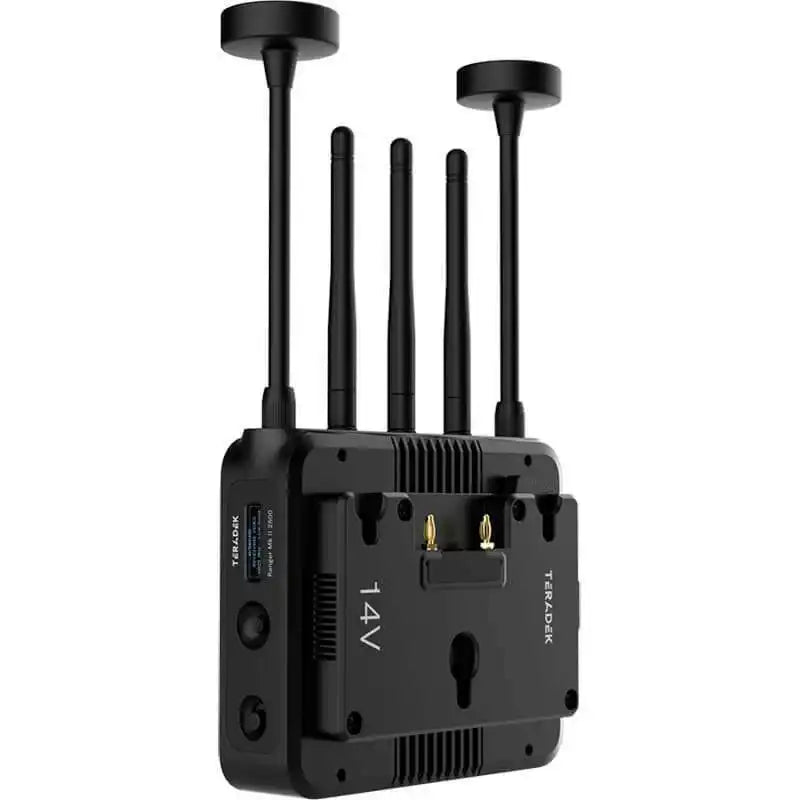

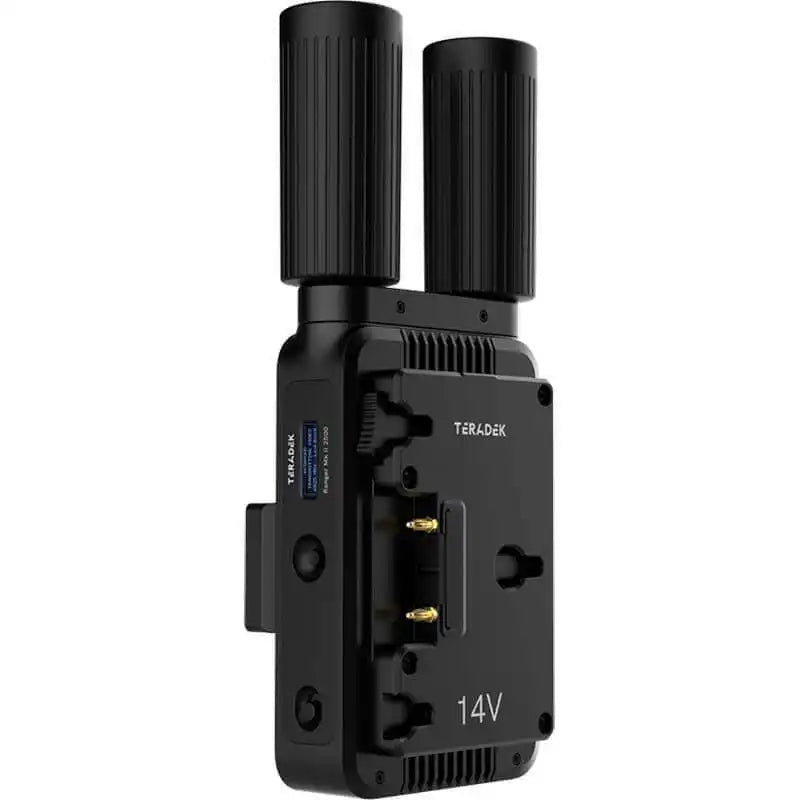

Gold Mount battery plates on both units enable hours of untethered runtime using standard professional Gold Mount batteries, making this configuration well-suited for camera-back and remote monitor deployments where DC cabling is impractical. The system operates across the 4.9–6.0 GHz frequency range with automatic and manual channel selection, noise rejection that allows up to six sets to run simultaneously alongside Wi-Fi infrastructure, and AES-256 encryption with RSA-1024 key exchange for secure video links. Timecode, start/stop flags, and camera metadata pass through the wireless link from most major camera manufacturers. The Bolt Manager app for iOS, Android, macOS, and Windows connects via Bluetooth for spectrum analysis and remote configuration.
Key Features
- 5,000 ft Line-of-Sight Range — Longest-range Ranger MK II configuration for stadium, arena, and large-venue productions.
- 4K60 10-bit 4:2:2 HDR — Visually lossless transmission with Rec. 2020 HDR and sub-1ms latency.
- 12G-SDI and HDMI 2.0 I/O — Full 4K signal chain with loop output on TX and dual 12G-SDI plus HDMI on RX.
- Integrated Gold Mount Battery Plates — Both TX and RX include Gold Mount plates for battery-powered deployment.
- Multicast to 6 Receivers — One transmitter feeds up to six receivers simultaneously for multi-monitor video village.
- AES-256 Encryption — RSA-1024 key exchange secures the wireless link end to end.
- Camera Metadata Pass-Through — Transmits timecode, start/stop flags, and ancillary data from supported cameras.
- Bolt Manager App — Bluetooth-connected spectrum analyzer and remote configuration for iOS, Android, macOS, and Windows.
- Cross-Compatible with Bolt 4K — Interoperates with Bolt 4K series over 5 GHz for mixed fleet deployments.
Typical Applications
- Feature film and commercial video village
- Large-scale live event and sports broadcast
- Auditorium and arena production
- Government and military video operations
- House of worship multi-camera production
- Broadcast studio and remote field production
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 5,000 ft line of sight |
| Video Latency | <1ms |
| Max Resolution | 4K DCI / UHD at 60fps |
| Color Sampling | 10-bit 4:2:2, Rec. 2020 HDR |
| TX Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| TX Loop Output | 1x 12G-SDI |
| RX Outputs | 2x 12G-SDI, 1x HDMI |
| Operating Frequency | 4.9–6.0 GHz |
| Encryption | AES-256, RSA-1024 key exchange |
| Battery Mount | Gold Mount (both TX and RX) |
| Power Input | 2-pin LEMO-type |
| Audio | 48kHz 24-bit PCM embedded |
| App | Bolt Manager (iOS, Android, macOS, Windows) |
Frequently Asked Questions
- How does the Gold Mount version differ from the V-Mount version?
- The Gold Mount version includes Anton/Bauer-style Gold Mount battery plates on both transmitter and receiver instead of V-Mount plates. All other specifications, range, and video performance are identical.
- Can this kit transmit to Bolt 4K receivers?
- Yes. The Ranger MK II is cross-compatible with Bolt 4K series receivers over the 5 GHz band. Range is limited by the shorter-range device in the pair.
- How many receivers can one transmitter feed?
- One transmitter can simultaneously feed up to six receivers, enabling multi-position video village setups on large productions.
- Does the system support HDR workflows?
- Yes. The Ranger MK II 5000 supports 10-bit 4:2:2 with Rec. 2020 HDR, compatible with HLG, PQ, and HDR-10 production workflows.
- What is the warranty on this product?
- Teradek provides a standard limited warranty. Contact Creation Networks for warranty registration, support options, and extended service plans.
- Can camera timecode and metadata pass through the wireless link?
- Yes. Timecode, start/stop flags, and ancillary metadata from most major camera manufacturers transmit wirelessly through the link.
- What configuration tools are available?
- The Bolt Manager desktop app for macOS and Windows, and the Bolt Manager mobile app for iOS and Android, connect via Bluetooth for spectrum analysis, channel selection, and remote configuration.
