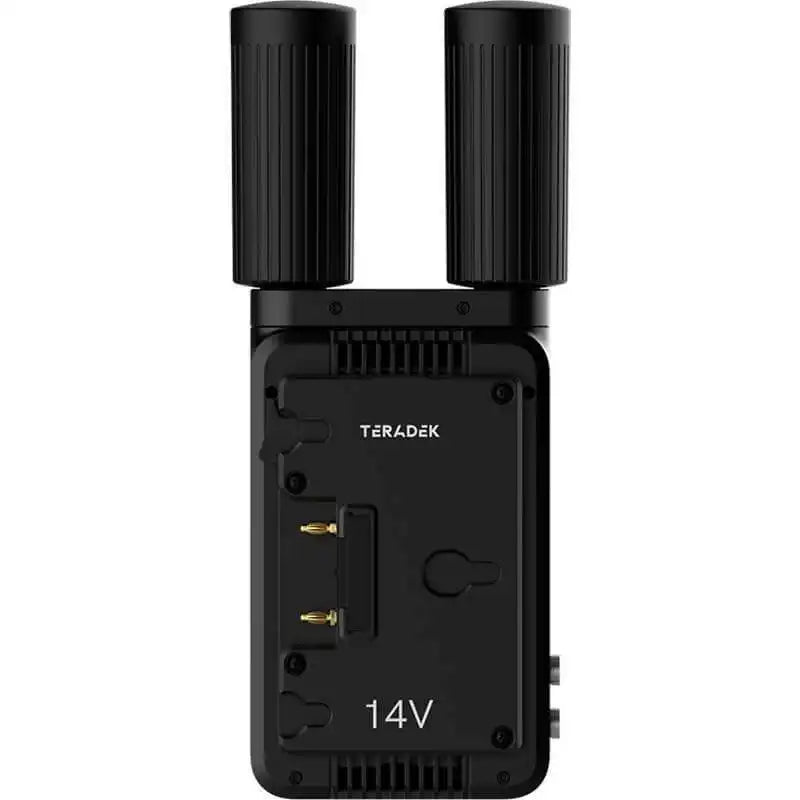

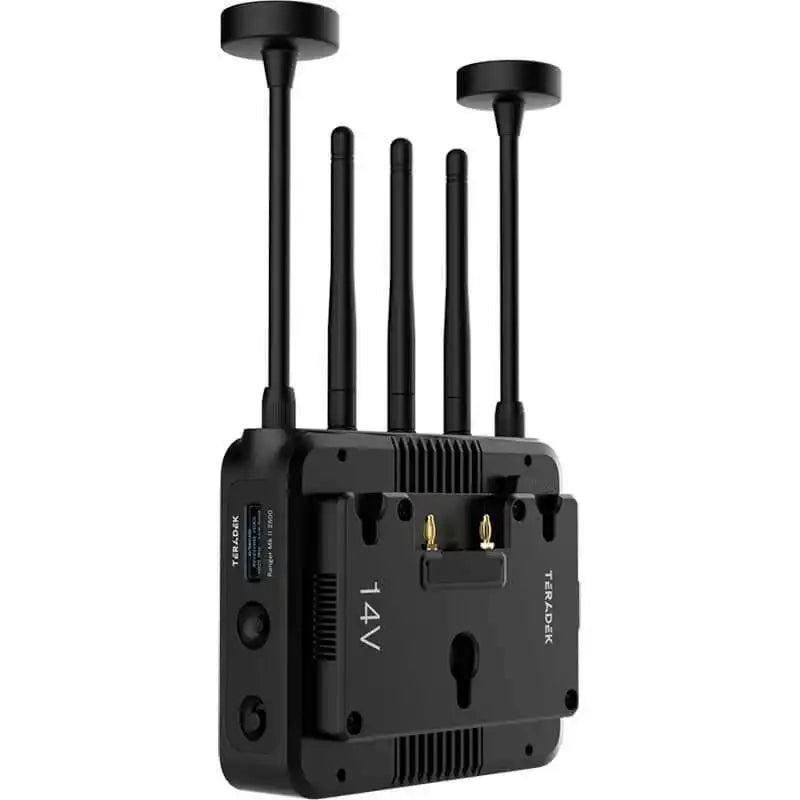

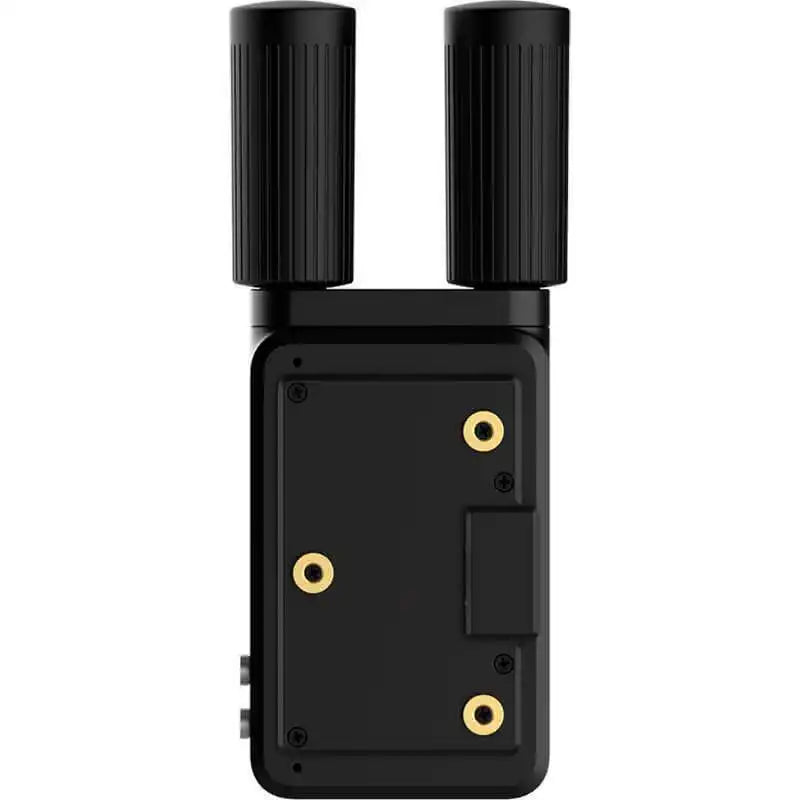

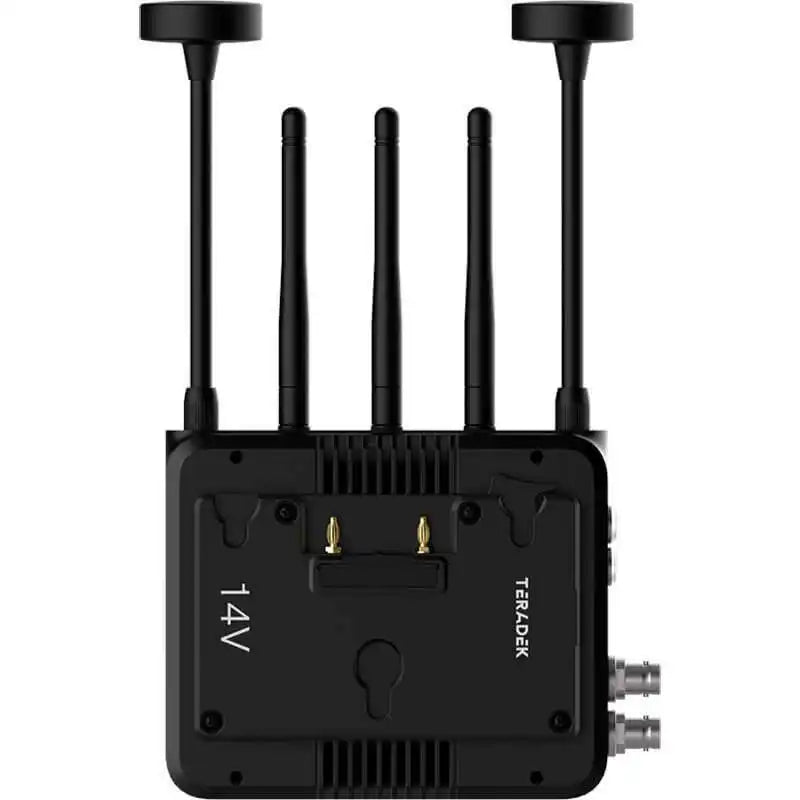

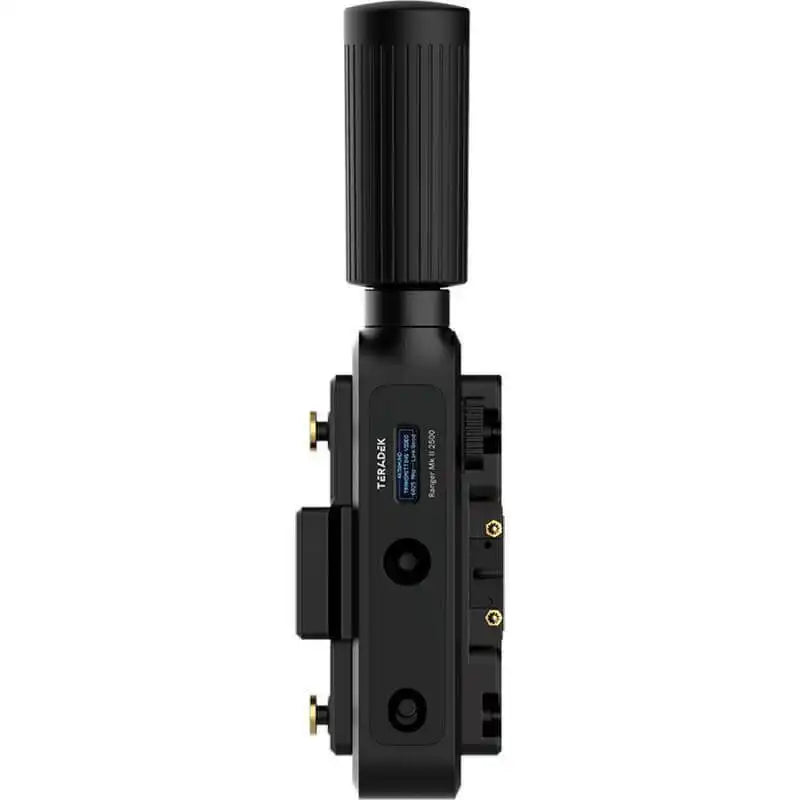

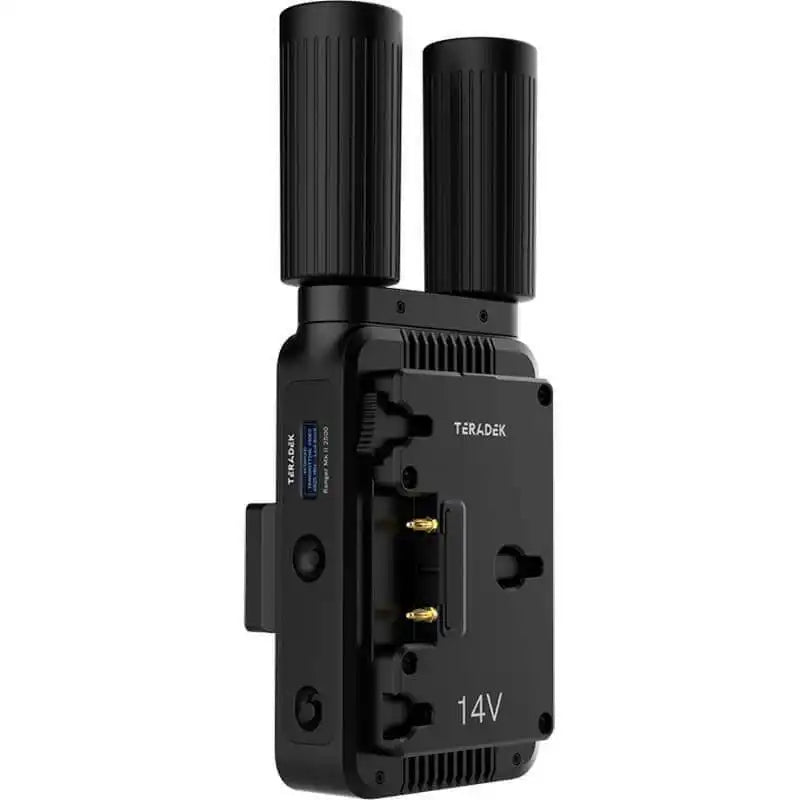

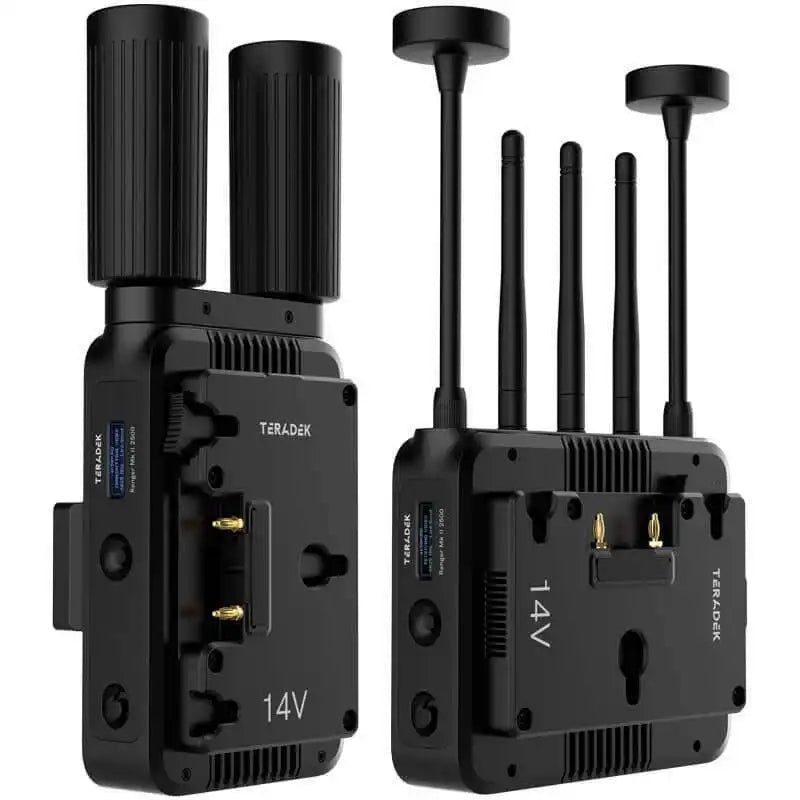

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount)
Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receive...
Product Overview
The Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless TX/RX Set (V-Mount) transmits visually lossless 4K60 video up to 2,500 feet line of sight across 4.9–6.0 GHz. Featuring integrated V-Mount battery plates on both transmitter and receiver, this kit enables professional battery-powered deployment for feature films, broadcast productions, and large-venue live events. The 12G-SDI and HDMI signal chain, AES-256 encryption, and Bolt 4K cross-compatibility make this a production-ready mid-to-long-range wireless video solution.
Product Description
The Ranger MK II 2500 V-Mount set delivers uncompressed 4K60 10-bit 4:2:2 HDR wireless video transmission with less than 1ms latency across distances up to 2,500 feet line of sight. V-Mount plates on both transmitter and receiver support hours of untethered operation on standard professional V-mount batteries. The transmitter accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output; the receiver delivers dual 12G-SDI and HDMI outputs for flexible signal distribution to video village monitors and broadcast equipment.
Operating across 4.9–6.0 GHz with auto/manual channel selection, the system features AES-256 encryption with RSA-1024 key exchange and supports multiple sets running simultaneously alongside Wi-Fi infrastructure. Camera timecode, start/stop, and ancillary metadata transmit wirelessly through the link. The Bolt Manager app connects via Bluetooth for spectrum analysis and remote configuration on iOS, Android, macOS, and Windows.
Key Features
- 2,500 ft Line-of-Sight Range — Mid-to-long-range wireless 4K video for broadcast and film production.
- 4K60 10-bit 4:2:2 HDR — Visually lossless transmission with Rec. 2020 HDR support.
- 12G-SDI and HDMI 2.0 I/O — Full 4K signal chain with loop output on TX and dual 12G-SDI plus HDMI on RX.
- V-Mount Battery Plates — Both TX and RX include V-Mount plates for untethered battery-powered operation.
- AES-256 Encryption — RSA-1024 key pairing for end-to-end wireless security.
- Camera Metadata Pass-Through — Timecode, start/stop, and ancillary data over the wireless link.
- Bolt Manager App — Bluetooth-connected spectrum analyzer and remote configuration.
Typical Applications
- Feature film and commercial video village
- Live event and broadcast production
- Auditorium and large-venue production
- Government video operations
- House of worship multi-camera production
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 2,500 ft line of sight |
| Video Latency | <1ms |
| Max Resolution | 4K DCI / UHD at 60fps |
| Color Sampling | 10-bit 4:2:2, Rec. 2020 HDR |
| TX Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| RX Outputs | 2x 12G-SDI, 1x HDMI |
| Operating Frequency | 4.9–6.0 GHz |
| Encryption | AES-256, RSA-1024 key exchange |
| Battery Mount | V-Mount (both TX and RX) |
Frequently Asked Questions
- How does the V-Mount version differ from the Gold Mount version?
- The V-Mount version uses V-mount battery plates on both units instead of Gold Mount plates. All video performance specifications are identical.
- Is this cross-compatible with Bolt 4K hardware?
- Yes. The Ranger MK II interoperates with Bolt 4K series devices over 5 GHz.
- How many receivers can one transmitter feed?
- One transmitter simultaneously feeds up to six receivers.
- What is the warranty?
- Teradek provides a standard limited warranty. Contact Creation Networks for details.
