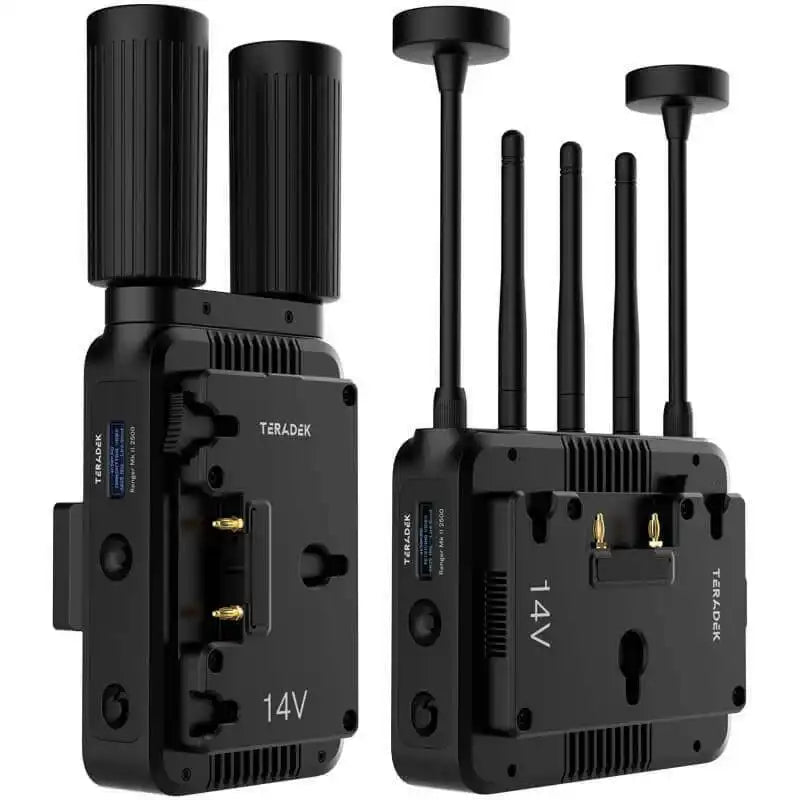

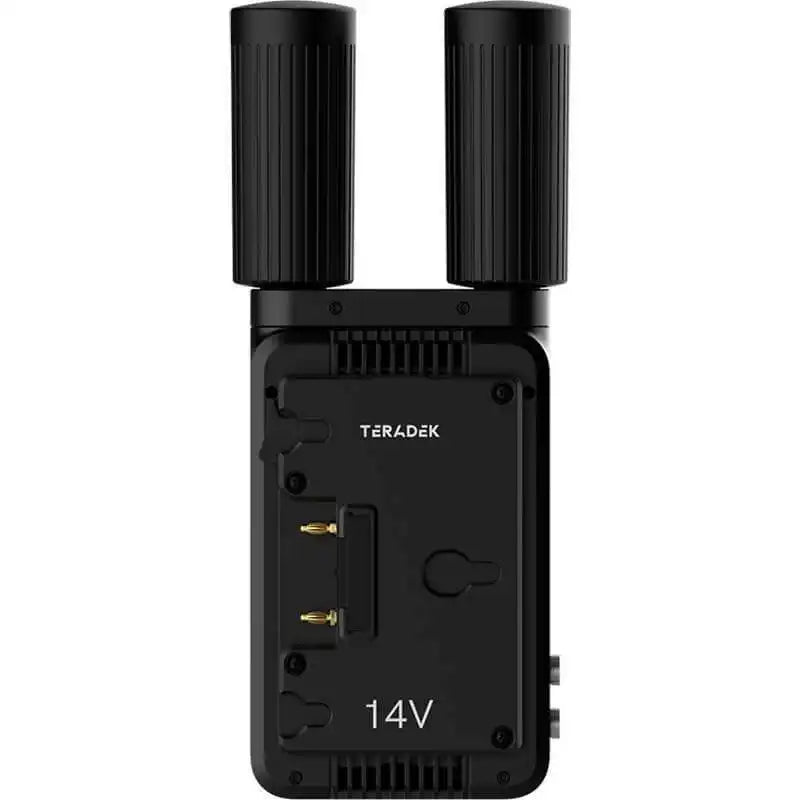

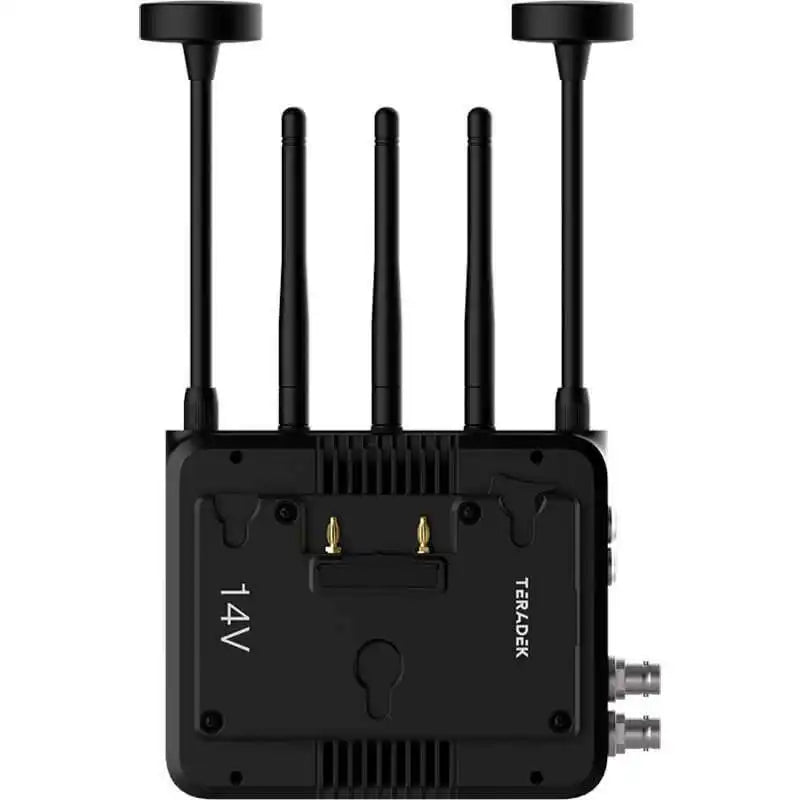

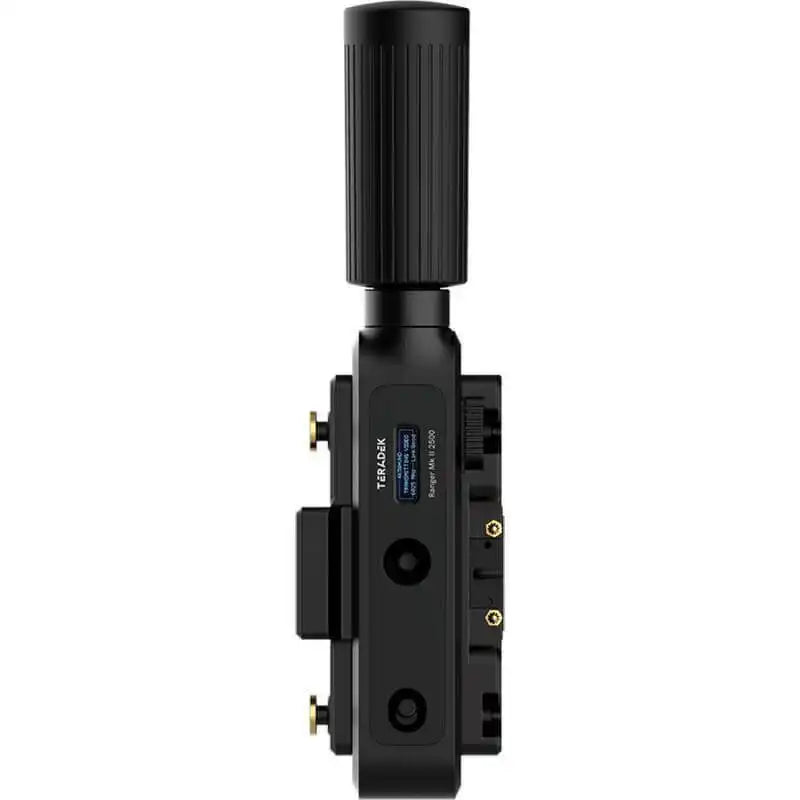

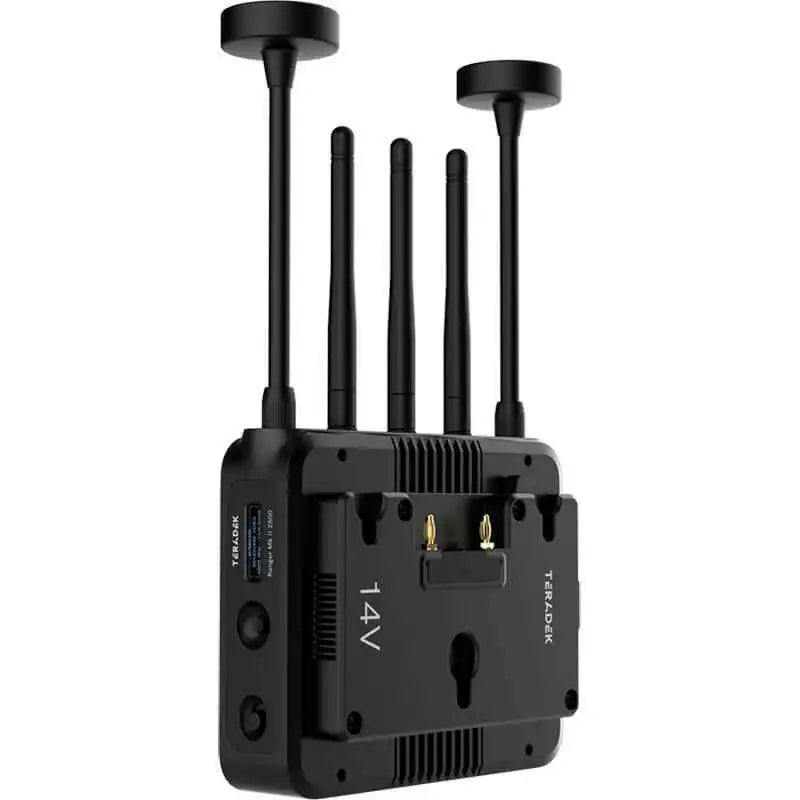

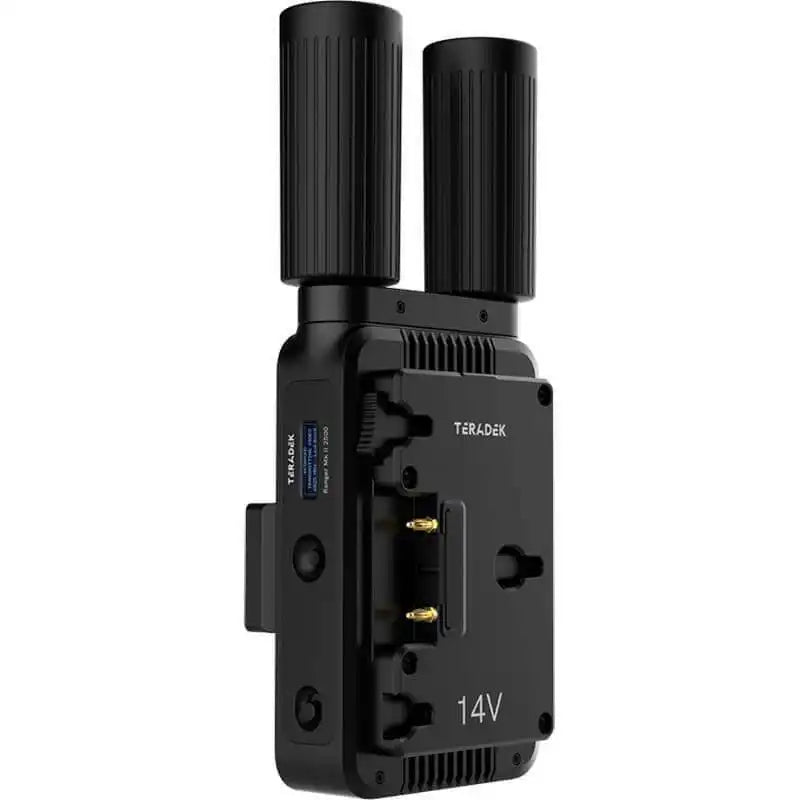

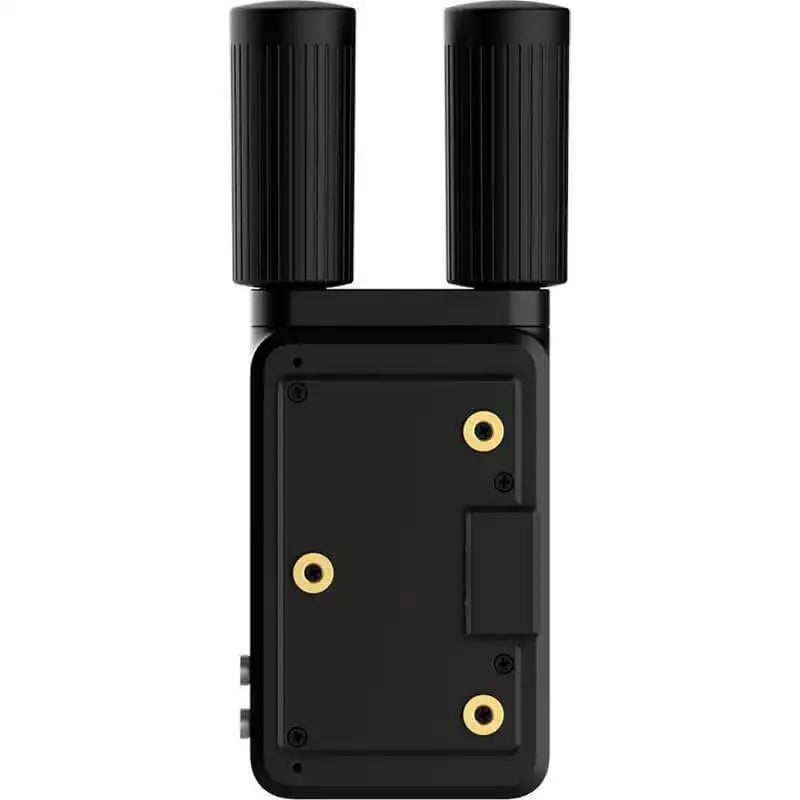

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount)
Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (Gold Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receive...
Product Overview
The Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless TX/RX Set (Gold Mount) transmits visually lossless 4K60 video up to 2,500 feet line of sight across the 4.9–6.0 GHz frequency band. Designed for broadcast productions, feature films, and large-venue live events, this kit includes integrated Gold Mount battery plates on both transmitter and receiver for untethered professional battery-powered deployment. With 12G-SDI and HDMI I/O, AES-256 encryption, and cross-compatibility with Bolt 4K series devices, the Ranger MK II 2500 delivers reliable mid-to-long-range wireless video for demanding production workflows.
Product Description
The Ranger MK II 2500 Gold Mount set transmits uncompressed 4K60 HDR video in 10-bit 4:2:2 with less than 1ms of delay across distances up to 2,500 feet line of sight. The transmitter accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output, while the receiver delivers dual 12G-SDI and HDMI outputs for direct connection to monitors, multiviewers, or broadcast switchers. Gold Mount battery plates on both units provide hours of untethered operation using Anton/Bauer-compatible professional batteries.
The system operates across 4.9–6.0 GHz with automatic and manual channel selection. AES-256 encryption with RSA-1024 key exchange secures the wireless link, and noise rejection supports multiple sets running simultaneously alongside Wi-Fi infrastructure. Timecode, start/stop flags, and camera metadata transmit wirelessly through the link. The Bolt Manager app for iOS, Android, macOS, and Windows connects via Bluetooth for spectrum analysis and remote configuration.
Key Features
- 2,500 ft Line-of-Sight Range — Mid-to-long-range wireless video for broadcast and film production.
- 4K60 10-bit 4:2:2 HDR — Visually lossless transmission with Rec. 2020 HDR and sub-1ms latency.
- 12G-SDI and HDMI 2.0 I/O — TX accepts both; RX outputs dual 12G-SDI and HDMI.
- Gold Mount Battery Plates — Both TX and RX include integrated Gold Mount plates for battery-powered operation.
- 4.9–6.0 GHz Operation — Wide frequency band with auto/manual channel selection.
- AES-256 Encryption — RSA-1024 key pairing for end-to-end wireless security.
- Camera Metadata Pass-Through — Timecode, start/stop, and ancillary data over the wireless link.
- Bolt Manager App — iOS/Android/macOS/Windows Bluetooth app for spectrum analysis and configuration.
Typical Applications
- Feature film and commercial video village
- Live event and broadcast production
- Auditorium and large-venue production
- Government and public safety video operations
- House of worship multi-camera production
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 2,500 ft line of sight |
| Video Latency | <1ms |
| Max Resolution | 4K DCI / UHD at 60fps |
| Color Sampling | 10-bit 4:2:2, Rec. 2020 HDR |
| TX Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| TX Loop Output | 1x 12G-SDI |
| RX Outputs | 2x 12G-SDI, 1x HDMI |
| Operating Frequency | 4.9–6.0 GHz |
| Encryption | AES-256, RSA-1024 key exchange |
| Battery Mount | Gold Mount (both TX and RX) |
| Audio | 48kHz 24-bit PCM embedded |
Frequently Asked Questions
- Is the Ranger MK II 2500 compatible with Bolt 4K devices?
- Yes. The Ranger MK II is cross-compatible with Bolt 4K series devices over the 5 GHz band.
- What Gold Mount batteries are compatible?
- Standard professional Gold Mount batteries from Anton/Bauer and other manufacturers are compatible. Batteries are sold separately.
- How many receivers can one transmitter feed?
- One transmitter can simultaneously feed up to six receivers.
- Does the system pass camera timecode?
- Yes. Timecode, start/stop flags, and ancillary metadata transmit wirelessly from most major camera manufacturers.
- What is the warranty?
- Teradek provides a standard limited warranty. Contact Creation Networks for registration and extended service options.
