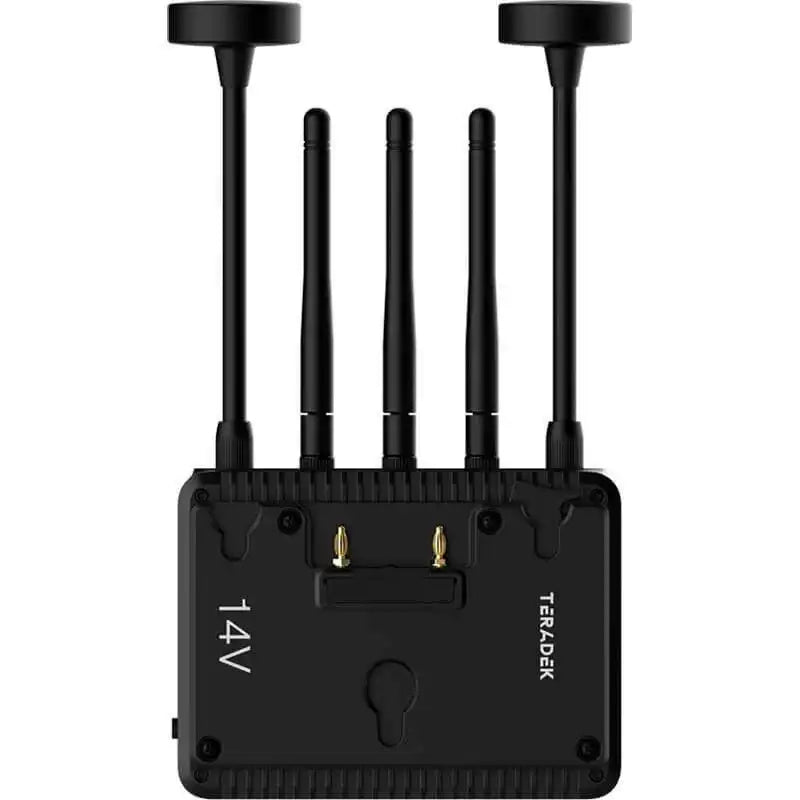

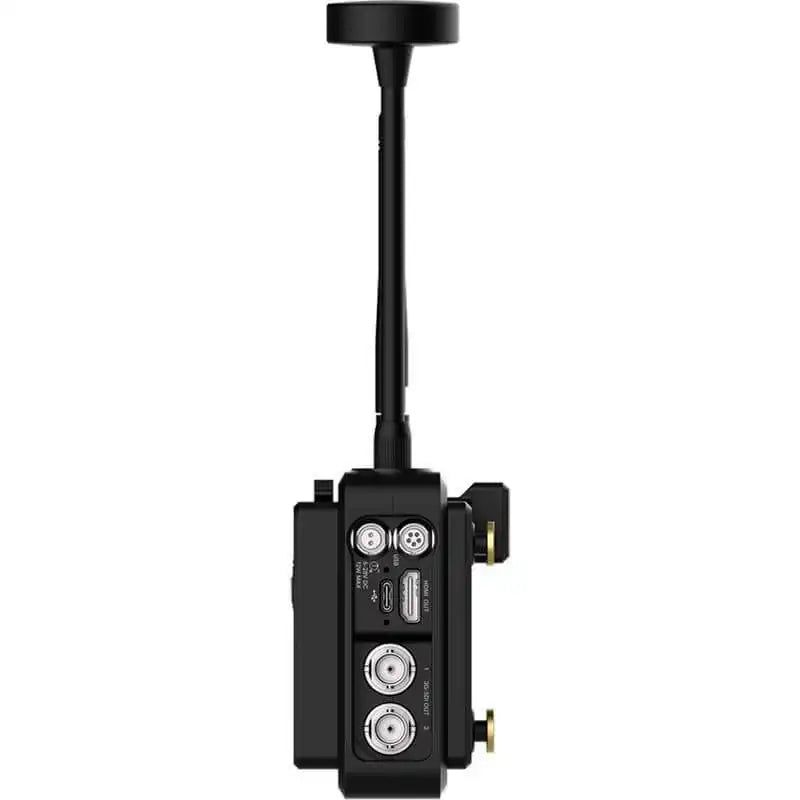

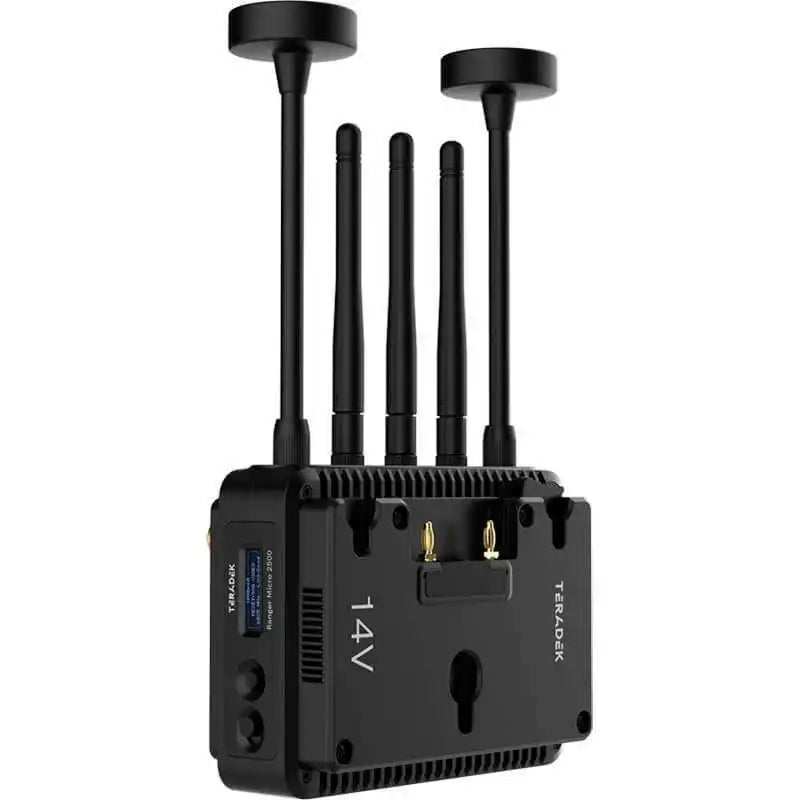

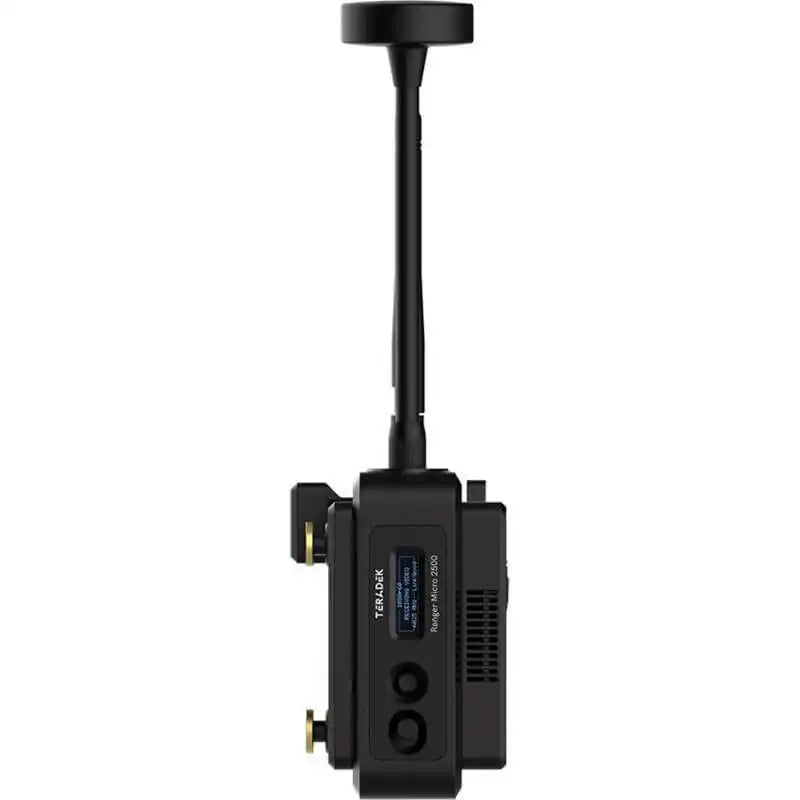

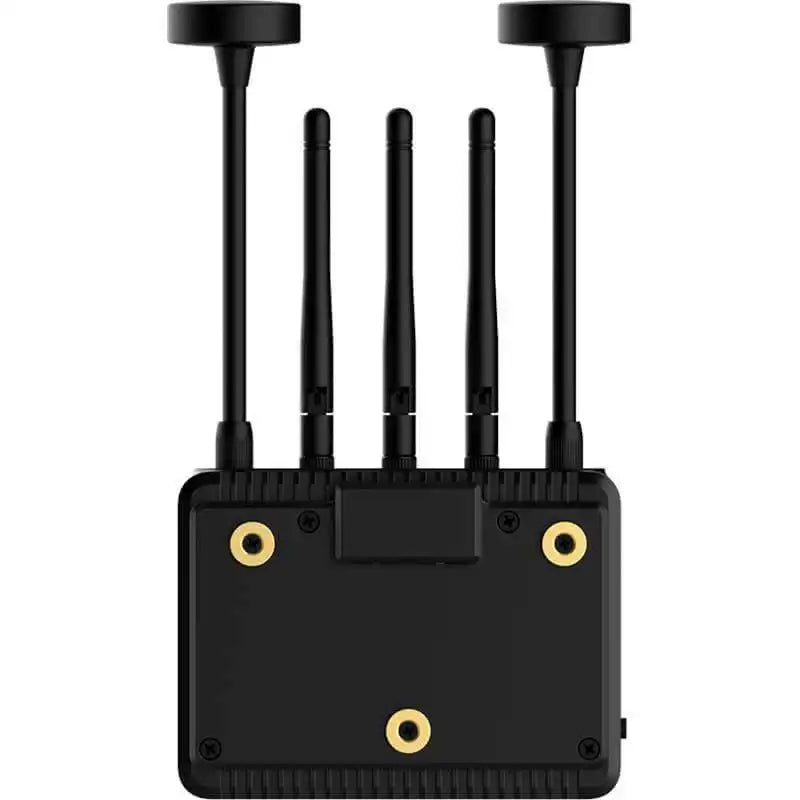

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (Gold Mount)
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (Gold Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter/Receiver ...
Product Overview
The Teradek Ranger Micro 750 3G-SDI/HDMI Wireless TX/RX Kit (Gold Mount) delivers professional HD wireless video transmission up to 750 feet line of sight across 4.9–6.0 GHz. Compact and lightweight with integrated Gold Mount battery plates on both transmitter and receiver, this kit is designed for ENG, documentary, and live event productions requiring portable, battery-powered wireless HD video in a smaller form factor than the Ranger MK II series.
Product Description
The Ranger Micro 750 Gold Mount kit transmits and receives 3G-SDI and HDMI video up to 750 feet with visually lossless compression and sub-1ms latency. Gold Mount plates on both TX and RX enable untethered operation using Anton/Bauer-compatible batteries. AES-256 encryption and RSA-1024 key exchange secure the link. Camera timecode, start/stop, and metadata transmit wirelessly. Bolt Manager app connects via Bluetooth for spectrum analysis and configuration.
Key Features
- 750 ft Line-of-Sight Range — Compact short-range HD wireless video kit.
- 3G-SDI and HDMI I/O — HD signal compatibility for ENG and live event workflows.
- Gold Mount Battery Plates — Both TX and RX include integrated Gold Mount plates.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
- Compact Ranger Micro Form Factor — Lightweight design for ENG and documentary production.
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 750 ft line of sight |
| Video I/O | 3G-SDI, HDMI (TX and RX) |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | Gold Mount (both TX and RX) |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- How does the Ranger Micro differ from the Ranger MK II?
- The Ranger Micro has a more compact form factor and supports 3G-SDI (HD) rather than 12G-SDI (4K). The Ranger MK II supports 4K via 12G-SDI.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for support.
