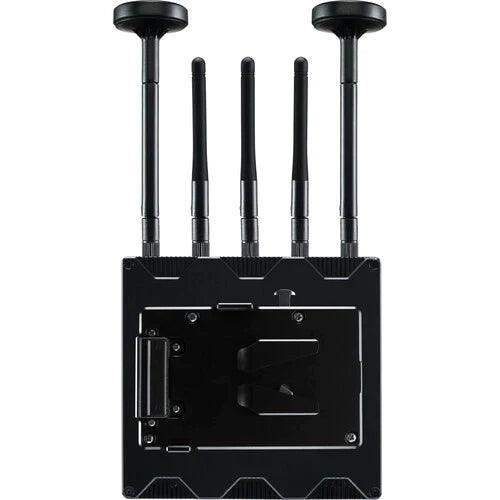

Teradek Ranger HD Wireless Transmitter/Receiver Set (V-Mount)
Product Overview
The Teradek Ranger HD Wireless Transmitter/Receiver Set (V-Mount) delivers reliable HD wireless video transmission up to 1,500 feet line of sight across the 4.9–6.0 GHz frequency band. Designed for broadcast ENG, documentary, and live event productions working in HD, this kit includes integrated V-Mount battery plates on both transmitter and receiver for professional battery-powered deployment. Compatible with Teradek Core cloud management and the Bolt Manager app.
Product Description
The Ranger HD V-Mount set transmits HD video via 3G-SDI and HDMI inputs and outputs with visually lossless compression and sub-1ms latency. V-Mount battery plates on both TX and RX units enable untethered operation on standard professional batteries. The system operates across 4.9–6.0 GHz with AES-256 encryption, RSA-1024 key exchange, and support for multiple sets operating simultaneously alongside Wi-Fi infrastructure. Camera timecode, start/stop flags, and ancillary metadata transmit wirelessly through the link. The Bolt Manager app for iOS and Android connects via Bluetooth for spectrum analysis and remote configuration.
Key Features
- 1,500 ft Line-of-Sight Range — Mid-range HD wireless video for broadcast and live event production.
- 3G-SDI and HDMI I/O — HD signal compatibility for broadcast ENG and live event workflows.
- V-Mount Battery Plates — Both TX and RX include integrated V-Mount plates for battery-powered deployment.
- 4.9–6.0 GHz Operation — Wide frequency band with auto/manual channel selection.
- AES-256 Encryption — RSA-1024 key exchange for end-to-end wireless security.
- Camera Metadata Pass-Through — Timecode, start/stop, and ancillary data over the wireless link.
- Bolt Manager App — iOS/Android Bluetooth app for spectrum analysis and configuration.
Typical Applications
- Broadcast ENG and field production
- Documentary and live event production
- Government and public safety video operations
- House of worship multi-camera production
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 1,500 ft line of sight |
| Video I/O | 3G-SDI, HDMI (TX and RX) |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | V-Mount (both TX and RX) |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- Does the Ranger HD support 4K video?
- No. The Ranger HD is designed for HD (up to 1080p) production workflows. For 4K, see the Ranger 4K or Ranger MK II series.
- What batteries are compatible?
- Standard professional V-mount batteries. Sold separately.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for support.
