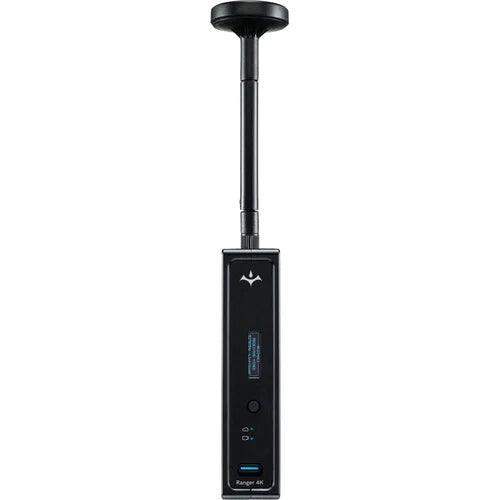

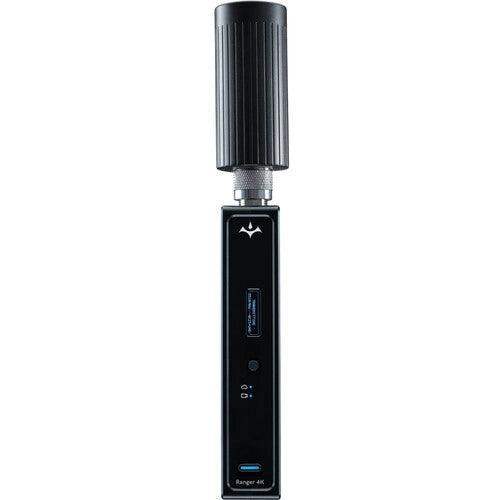

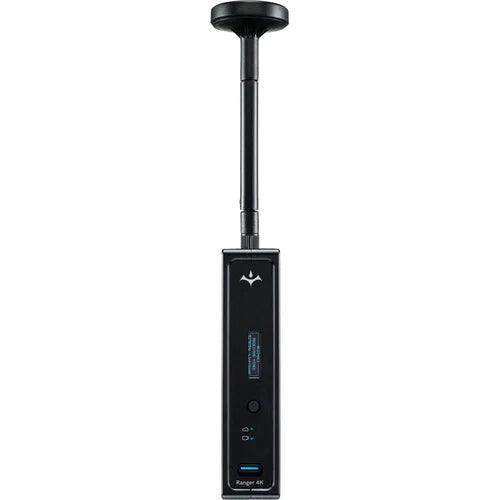

Teradek Ranger 4K Wireless TX Transmitter (V-Mount)
Product Overview
The Teradek Ranger 4K Wireless TX Transmitter (V-Mount) is the standalone transmitter from the Ranger 4K series, delivering visually lossless 4K wireless video up to 3,000 feet with standard antennas and 5,000 feet with the panel antenna array. The integrated V-Mount battery plate enables professional camera-back or rig-mounted battery-powered deployment for film and broadcast productions. Pairs with any Ranger 4K or Bolt 4K series receiver.
Product Description
The Ranger 4K TX V-Mount accepts 12G-SDI and HDMI inputs with an SDI loop output, transmitting 4K HDR video across 4.9–6.0 GHz with less than 1ms latency. V-Mount battery plate powers the unit via standard professional batteries. AES-256 encryption with RSA-1024 key pairing secures the link; one TX feeds up to six receivers simultaneously. Bolt Manager app connects via Bluetooth for spectrum analysis and configuration.
Key Features
- Up to 5,000 ft TX Range — 3,000 ft standard; 5,000 ft with panel array.
- 4K HDR 10-bit 4:2:2 — Visually lossless zero-delay wireless transmission.

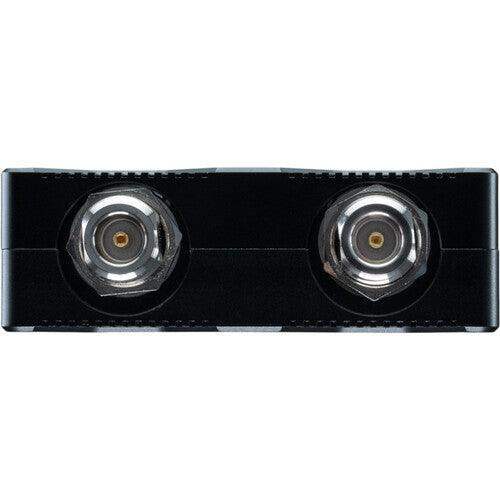

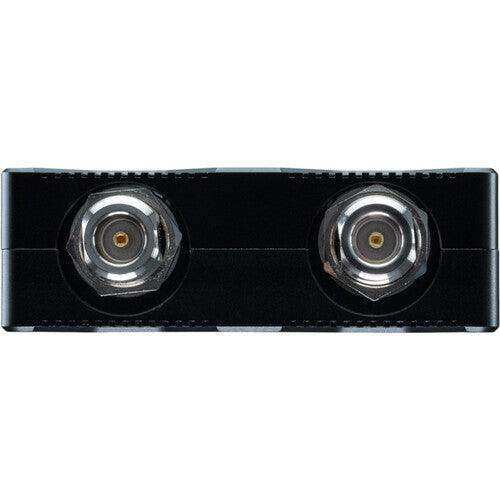

- 12G-SDI and HDMI Inputs — With SDI loop-through output.

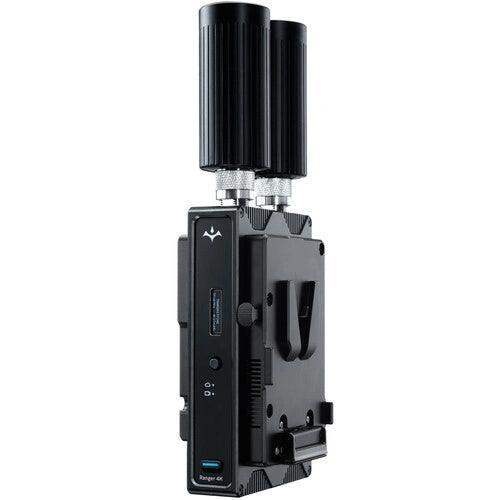

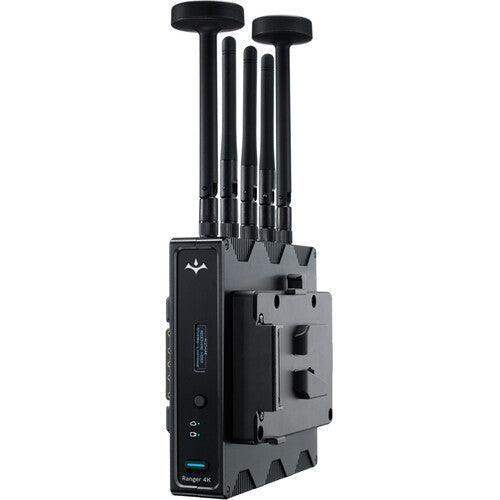

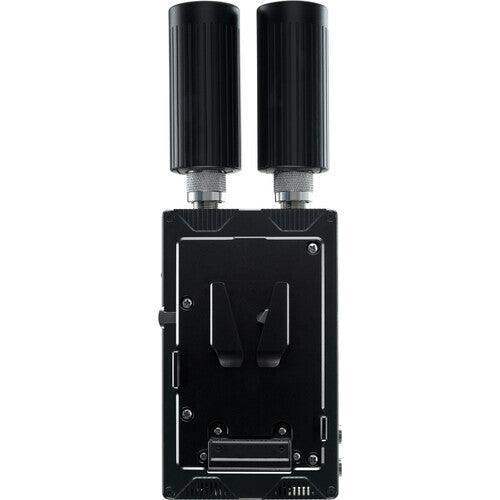

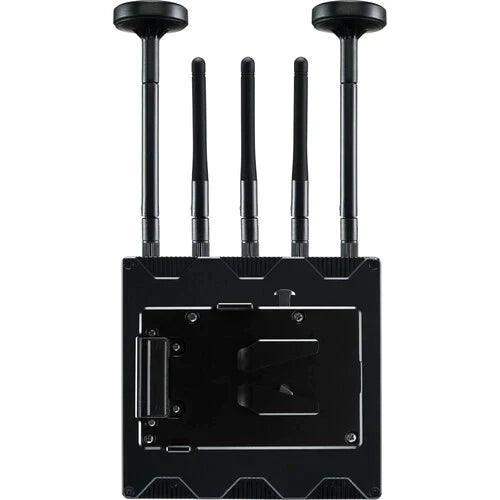

- V-Mount Battery Plate — Integrated for battery-powered camera-back operation.
- Multicast to 6 Receivers — One TX feeds up to six RX units.
- AES-256 Encryption — RSA-1024 key pairing for security.
Typical Applications
- Feature film camera-back transmitter
- Large-scale broadcast and live event production
- Stadium and auditorium production
Technical Specifications
| Specification | Value |
|---|---|
| TX Range | Up to 3,000 ft (5,000 ft with panel array) |
| Inputs | 12G-SDI, HDMI |
| Loop Output | 12G-SDI |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | V-Mount |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receivers pair with this transmitter?
- Ranger 4K receivers and Bolt 4K series receivers over 5 GHz. Browse at creationnetworks.net.
- How does the V-Mount version differ from Gold Mount?
- Uses V-mount battery plates. All video specs are identical.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks.
