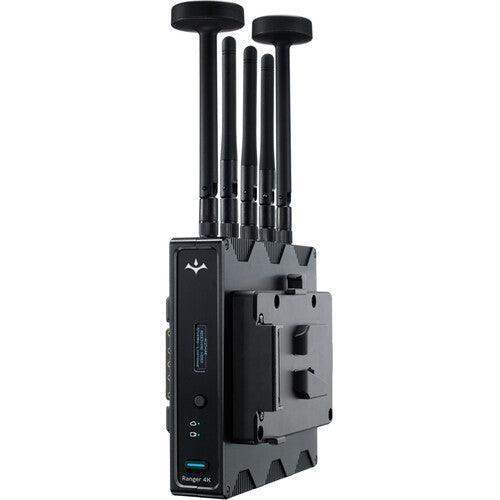

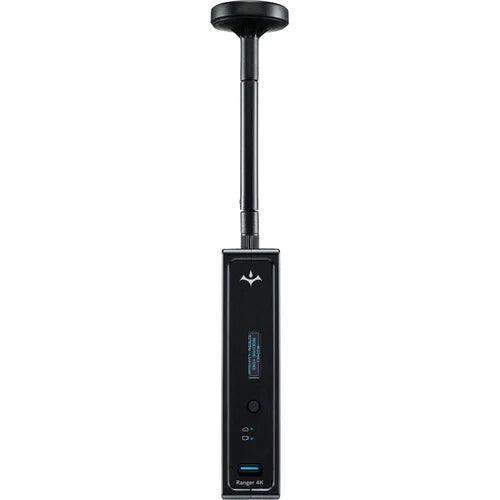

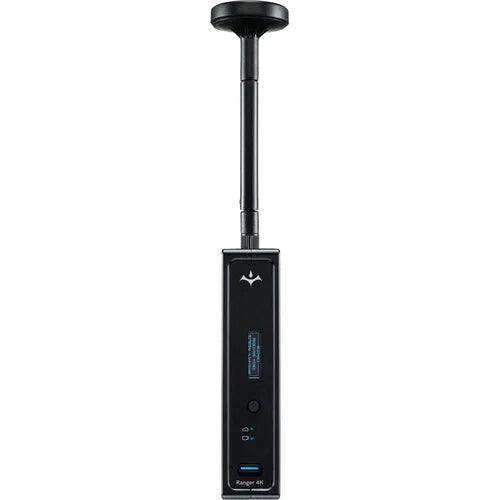

Teradek Ranger 4K Wireless TX Transmitter (Gold Mount)
Product Overview
The Teradek Ranger 4K Wireless TX Transmitter (Gold Mount) is the standalone transmitter unit from the Ranger 4K series, delivering visually lossless 4K wireless video transmission up to 3,000 feet with standard antennas and up to 5,000 feet with the included panel antenna array. The integrated Gold Mount battery plate enables professional camera-back or rig-mounted battery-powered deployment. Pairs with any Ranger 4K or Bolt 4K series receiver.
Product Description
The Ranger 4K TX Gold Mount accepts 12G-SDI and HDMI inputs and provides an SDI loop output, transmitting 4K HDR video across 4.9–6.0 GHz with less than 1ms latency. The Gold Mount battery plate powers the unit via Anton/Bauer-compatible batteries. AES-256 encryption with RSA-1024 key pairing secures the wireless link, and one TX feeds up to six receivers simultaneously. The Bolt Manager app for iOS and Android connects via Bluetooth for spectrum analysis, channel selection, and configuration.
Key Features
- Up to 5,000 ft TX Range — 3,000 ft standard antennas; 5,000 ft with panel array.
- 4K HDR 10-bit 4:2:2 — Visually lossless zero-delay wireless video.
- 12G-SDI and HDMI Inputs — With SDI loop-through output.

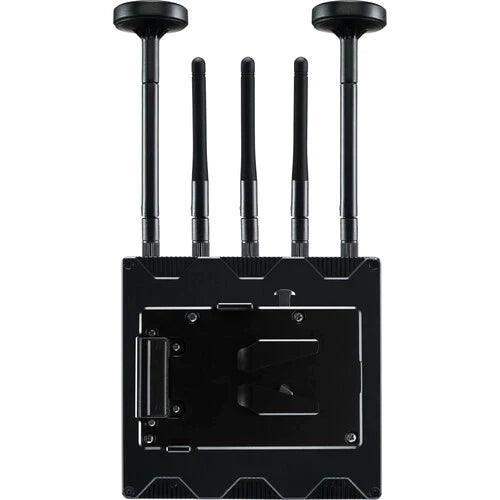

- Gold Mount Battery Plate — Integrated for camera-back battery-powered operation.
- 4.9–6.0 GHz Operation — Wide band with auto/manual channel selection.
- Multicast to 6 Receivers — Single TX feeds up to six RX units.
- AES-256 Encryption — RSA-1024 key pairing for wireless security.
Typical Applications
- Feature film camera-back transmitter
- Large-scale broadcast and live event production
- Auditorium and stadium video production
Technical Specifications
| Specification | Value |
|---|---|
| TX Range | Up to 3,000 ft (5,000 ft with panel array) |
| Video Latency | <1ms |
| Inputs | 12G-SDI, HDMI |
| Loop Output | 12G-SDI |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | Gold Mount |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receivers are compatible with the Ranger 4K TX?
- Compatible with Ranger 4K receivers and Bolt 4K series receivers over 5 GHz. Browse at creationnetworks.net.
- Is the panel array included?
- Yes, for the TX/RX set. The standalone transmitter — confirm accessory inclusions at time of purchase.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for support.
