Teradek Ranger 4K Wireless Receiver RX (V-Mount)
Teradek Ranger 4K Wireless Receiver RX (V-Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Ranger 4K Wireless Receiver RX (V-Mount)
Product Overview

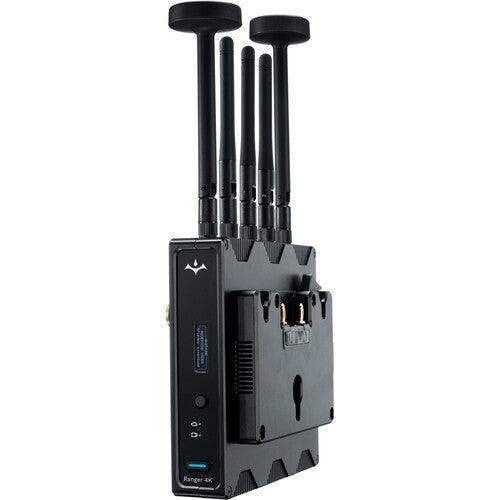

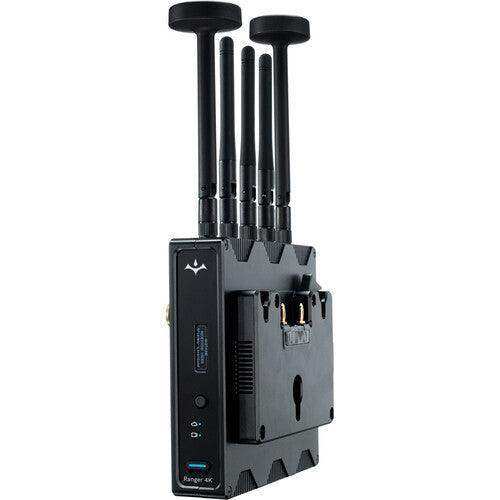

The Teradek Ranger 4K Wireless Receiver RX (V-Mount) is the standalone receiver from the Ranger 4K series, receiving visually lossless 4K HDR wireless video up to 3,000 feet with standard antennas and 5,000 feet with the panel antenna array. The integrated V-Mount battery plate enables professional battery-powered deployment at video village or remote monitor positions. Compatible with any Ranger 4K or Bolt 4K series transmitter.
Product Description
The Ranger 4K RX V-Mount delivers 4K HDR in 10-bit 4:2:2 via 12G-SDI and HDMI outputs, receiving over 4.9–6.0 GHz with less than 1ms latency. V-Mount battery plate enables untethered operation at monitor positions using standard professional batteries. AES-256 encryption with RSA-1024 key pairing secures the link. Compatible with all Bolt 4K series transmitters. Bolt Manager app connects via Bluetooth for spectrum analysis and configuration.
Key Features
- Up to 5,000 ft Receive Range — 3,000 ft standard; 5,000 ft with panel array.
- 4K HDR 10-bit 4:2:2 — Visually lossless zero-delay reception.

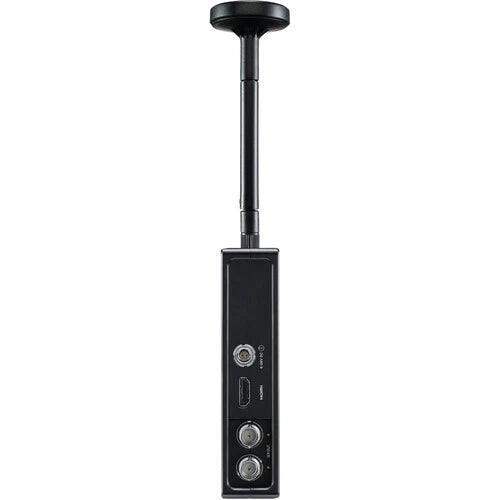

- 12G-SDI and HDMI Outputs — Dual outputs for monitors and broadcast equipment.

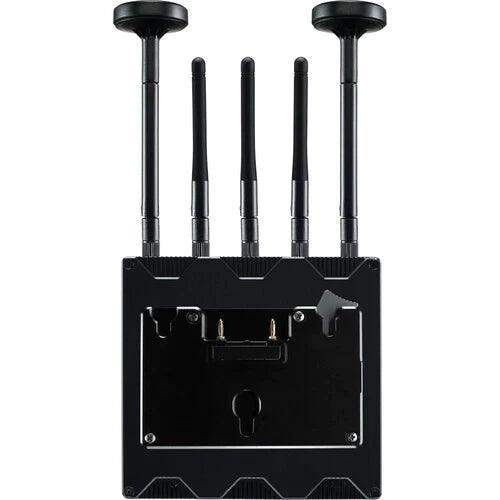

- V-Mount Battery Plate — Integrated for battery-powered video village deployment.
- AES-256 Encryption — RSA-1024 key pairing for wireless security.
Technical Specifications
| Specification | Value |
|---|---|
| Receive Range | Up to 3,000 ft (5,000 ft with panel array) |
| Outputs | 12G-SDI, HDMI |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | V-Mount |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What transmitters are compatible?
- Ranger 4K transmitters and all Bolt 4K series transmitters over 5 GHz. Browse at creationnetworks.net.
- How does V-Mount differ from Gold Mount?
- Uses V-mount battery plates instead of Gold Mount. All video specs are identical.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for support.
