Teradek Ranger 4K 12G-SDI/HDMI Wireless TX/RX Set (V-Mount)
Product Overview
The Teradek Ranger 4K 12G-SDI/HDMI Wireless TX/RX Set (V-Mount) transmits and receives visually lossless 4K video up to 5,000 feet line of sight using the 4.9–6.0 GHz frequency band. Purpose-built for high-end film production, broadcast, and large-venue live events, this kit includes a wireless transmitter and receiver with integrated V-Mount battery plates for untethered camera-back or monitor deployment. With 10-bit 4:2:2 HDR support, AES-256 encryption, and cross-compatibility with Bolt 4K series devices, the Ranger 4K is a reliable long-range wireless video solution for demanding production environments.
Product Description

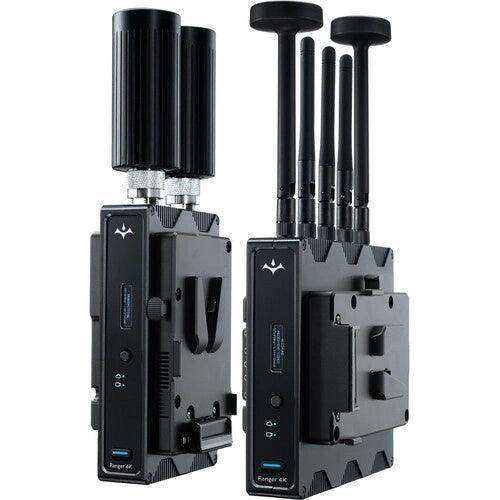

The Teradek Ranger 4K V-Mount set delivers zero-delay 4K wireless video transmission across distances up to 3,000 feet with the included standard antennas, expandable to 5,000 feet with the included panel antenna array. The transmitter accepts 12G-SDI and HDMI inputs, providing an SDI loop output, while the receiver outputs 4K via both 12G-SDI and HDMI — giving DPs and video engineers flexible signal routing options at base camp or video village.

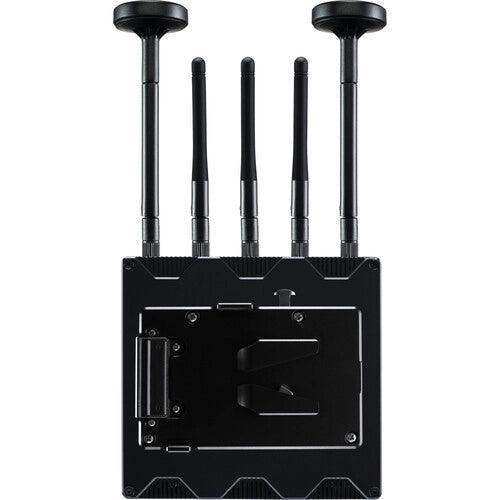

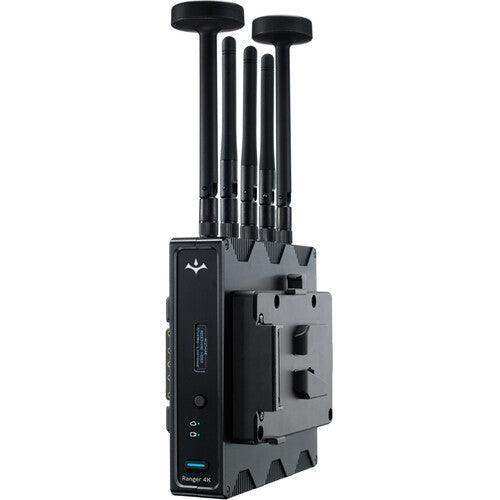

Both transmitter and receiver feature integrated V-Mount battery plates so the units run on standard professional V-mount batteries without DC cabling constraints. The 4.9–6.0 GHz operating range provides a wide, low-interference frequency environment. Built-in AES-256 encryption with RSA-1024 key pairing secures the wireless link, and the noise rejection system supports up to six Ranger 4K sets operating simultaneously in the same area. Timecode, start/stop flags, and ancillary metadata transmit wirelessly from most major camera manufacturers. The Bolt Manager app for iOS and Android connects via Bluetooth for spectrum analysis, channel selection, and remote configuration.
Key Features
- Up to 5,000 ft Range — 3,000 ft with standard antennas, 5,000 ft with included panel antenna array.
- 4K HDR 10-bit 4:2:2 — Visually lossless wireless video with zero delay and full HDR support.
- 12G-SDI and HDMI I/O — Transmitter inputs both 12G-SDI and HDMI; receiver outputs 4K via 12G-SDI and HDMI.
- V-Mount Battery Plates Included — Both TX and RX units ship with integrated V-Mount plates for battery-powered deployment.
- 4.9–6.0 GHz Operation — Wide frequency range with auto and manual channel selection for RF-dense environments.
- Multicast to 6 Receivers — One transmitter feeds up to six receivers simultaneously.
- AES-256 Encryption — RSA-1024 key pairing for secure wireless video links.
- Camera Metadata Pass-Through — Timecode, start/stop, and ancillary data over the wireless link.
- Bolt Manager App — iOS/Android Bluetooth app for spectrum analysis and remote configuration.
Typical Applications
- Feature film and commercial video village
- Large-scale live event and broadcast production
- Auditorium and stadium production
- Government and public safety video operations
- House of worship multi-camera live production
Technical Specifications
| Specification | Value |
|---|---|
| Range (standard antennas) | Up to 3,000 ft line of sight |
| Range (with panel array) | Up to 5,000 ft line of sight |
| Video Latency | <1ms |
| Operating Frequency | 4.9–6.0 GHz |
| Color Sampling | 10-bit 4:2:2 HDR |
| TX Inputs | 12G-SDI, HDMI |
| RX Outputs | 12G-SDI, HDMI |
| Encryption | AES-256, RSA-1024 |
| Battery | V-Mount (both TX and RX) |
| Power Input | 2-pin LEMO-type |
| Audio | 48kHz 24-bit PCM embedded |
| App | Bolt Manager (iOS, Android) |
Frequently Asked Questions
- What range can I expect from the Ranger 4K?
- With standard antennas, the Ranger 4K transmits up to 3,000 feet line of sight. With the included panel antenna array, range extends to 5,000 feet. Actual performance varies with RF environment and obstructions.
- Is the panel antenna array included in the kit?
- Yes. The Ranger 4K set includes both standard antennas and the panel antenna array for extended range deployments.
- Can I use this with existing Bolt 4K receivers?
- Yes. The Ranger 4K is cross-compatible with Bolt 4K series devices over the 5 GHz band, allowing mixed-fleet deployments.
- What batteries are compatible with the V-Mount plates?
- Standard professional V-mount batteries from Anton/Bauer, IDX, Sony, and other major manufacturers are compatible. Batteries are sold separately.
- How many receivers can one transmitter feed?
- One Ranger 4K transmitter can simultaneously feed up to six receivers.
- What HDR standards are supported?
- The Ranger 4K supports 10-bit 4:2:2 with Rec. 2020 HDR, compatible with HLG, PQ, and HDR-10 workflows.
- What is the warranty coverage?
- Teradek provides a standard limited warranty. Contact Creation Networks for warranty registration and support options.
