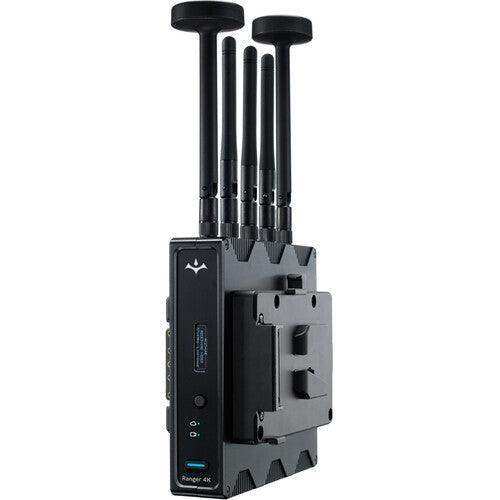

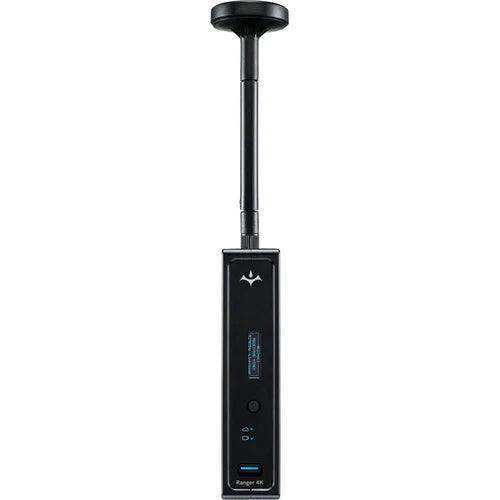

Teradek Ranger 4K 12G-SDI/HDMI Wireless TX/RX Set (Gold Mount)

Product Overview

The Teradek Ranger 4K 12G-SDI/HDMI Wireless TX/RX Set (Gold Mount) delivers visually lossless 4K long-range wireless video transmission up to 5,000 feet line of sight using the 4.9–6.0 GHz frequency band. Designed for feature film, broadcast, and large-venue live production, this kit includes integrated Gold Mount battery plates on both transmitter and receiver for professional Anton/Bauer-compatible battery-powered deployment. With 10-bit 4:2:2 HDR, AES-256 encryption, and Bolt 4K cross-compatibility, the Ranger 4K Gold Mount is a high-performance long-range wireless video kit for demanding production workflows.

Product Description

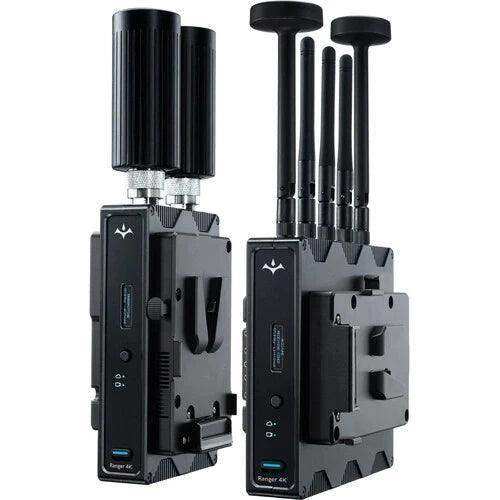

The Ranger 4K Gold Mount set transmits uncompressed 4K HDR video with zero delay to distances of 3,000 feet with standard antennas, and up to 5,000 feet using the included panel antenna array. The transmitter accepts 12G-SDI and HDMI inputs and provides an SDI loop output, while the receiver delivers 4K via dual 12G-SDI and HDMI outputs for direct connection to monitors, multiviewers, or broadcast equipment. Gold Mount battery plates on both units support hours of untethered runtime using Anton/Bauer or compatible Gold Mount batteries.

Operating across 4.9–6.0 GHz with automatic and manual channel selection, the system provides a stable, interference-resistant wireless link in RF-dense environments. AES-256 encryption with RSA-1024 key exchange secures the video feed, and noise rejection supports up to six sets running simultaneously alongside existing Wi-Fi infrastructure. Camera timecode, start/stop flags, and ancillary metadata pass wirelessly through the link from most major manufacturers. The Bolt Manager app for iOS and Android provides Bluetooth-based spectrum analysis and remote configuration.

Key Features

• Up to 5,000 ft Range — 3,000 ft with standard antennas; 5,000 ft with the included panel antenna array.
• 4K HDR 10-bit 4:2:2 — Visually lossless zero-delay transmission with full HDR support.
• 12G-SDI and HDMI I/O — Full 4K signal chain with loop output on TX; dual 12G-SDI and HDMI on RX.

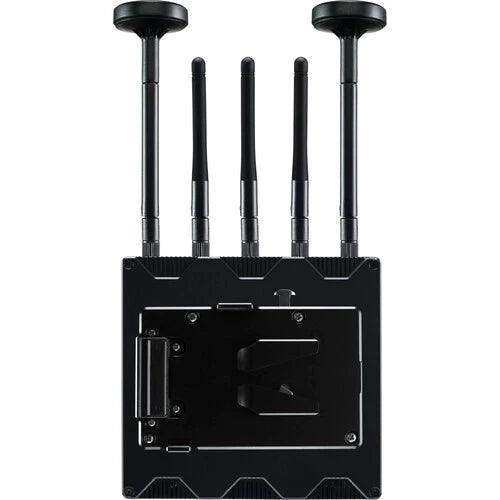

• Gold Mount Battery Plates Included — Both TX and RX feature integrated Gold Mount plates for battery-powered operation.
• 4.9–6.0 GHz Operating Band — Wide frequency range with auto and manual channel selection.
• Multicast to 6 Receivers — Single transmitter drives up to six receivers simultaneously.
• AES-256 Encryption — RSA-1024 key pairing for end-to-end wireless security.
• Camera Metadata Support — Timecode, start/stop, and ancillary data over the wireless link.

Typical Applications

• Feature film and commercial video village
• Large-scale live event and broadcast production
• Auditorium and stadium production
• Government video and public safety operations
• House of worship multi-camera live production

Technical Specifications

Frequently Asked Questions

How does the Gold Mount version differ from the V-Mount version?

The Gold Mount version uses Anton/Bauer-style Gold Mount battery plates on both units. All video performance specifications are identical to the V-Mount version.

Is the panel antenna array included?

Yes. The Ranger 4K set includes the panel antenna array for 5,000 ft deployments in addition to standard antennas.

Can this kit work with existing Bolt 4K hardware?

Yes. The Ranger 4K is cross-compatible with Bolt 4K series devices over 5 GHz.

How many receivers can the transmitter feed simultaneously?

Up to six receivers can connect to a single Ranger 4K transmitter at the same time.

What HDR formats are supported?

The system supports 10-bit 4:2:2 with Rec. 2020 HDR, compatible with HLG, PQ, and HDR-10.

What warranty does this product carry?

Teradek provides a standard limited warranty. Contact Creation Networks for warranty and support details.
