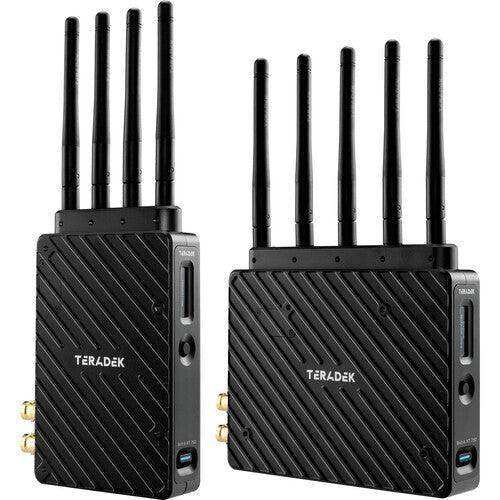

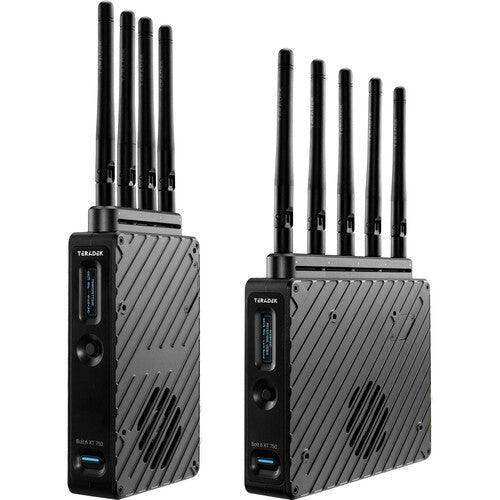

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold ...
Product Overview
The Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount) transmits visually lossless 4K wireless video up to 750 feet across the 5 GHz and 6 GHz frequency bands. This deluxe kit adds integrated Gold Mount battery plates on both transmitter and receiver, additional cables, and a carry case for professional production-ready deployment. The Bolt 6 XT delivers the signal quality and low latency required for film and broadcast workflows, with DFS channels available for environments where 5 GHz is congested.
Product Description
The Bolt 6 XT 750 Gold Deluxe Kit pairs a 12G-SDI/HDMI transmitter with a matching receiver, both with integrated Gold Mount battery plates for untethered professional battery-powered deployment. The transmitter accepts 12G-SDI and HDMI inputs with a 12G-SDI loop output; the receiver delivers dual 12G-SDI and HDMI outputs. The Bolt 6 XT operates on both 5 GHz and 6 GHz, enabling DFS channel access and improved performance in RF-congested production environments.
AES-256 encryption with RSA-1024 key exchange secures the wireless link, and one TX feeds up to six receivers simultaneously. Camera timecode, start/stop flags, and ancillary metadata transmit wirelessly through the link. The Bolt Manager app for iOS and Android connects via Bluetooth for spectrum analysis and remote configuration. Cross-compatible with Bolt 4K series devices over 5 GHz.
Key Features
- 750 ft Line-of-Sight Range — Reliable 4K wireless video for studio and live event production.
- 5 GHz and 6 GHz Operation — Dual-band with DFS channel support for RF-congested environments.
- 4K HDR Wireless Transmission — Visually lossless video with sub-1ms latency.

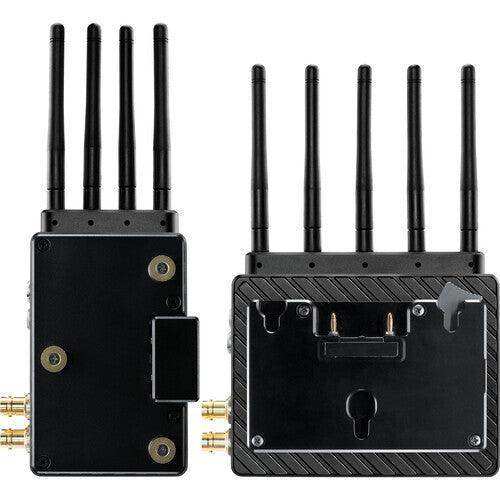

- Gold Mount Battery Plates — Both TX and RX include integrated Gold Mount plates for battery-powered deployment.
- 12G-SDI and HDMI I/O — TX loop output; dual 12G-SDI and HDMI on RX.
- Multicast to 6 Receivers — Single TX feeds up to six RX units simultaneously.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
- Cross-Compatible with Bolt 4K Series — Interoperates with Bolt 4K devices over 5 GHz.
Typical Applications
- Feature film and commercial production
- Broadcast studio and live event
- Large-venue and auditorium production
- House of worship multi-camera live production
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 750 ft line of sight |
| Operating Frequency | 5 GHz / 6 GHz (with DFS) |
| TX Inputs | 1x 12G-SDI, 1x HDMI |
| RX Outputs | 2x 12G-SDI, 1x HDMI |
| Battery Mount | Gold Mount (both TX and RX) |
| Encryption | AES-256, RSA-1024 |
| Audio | 48kHz 24-bit PCM embedded |
Frequently Asked Questions
- What is the difference between Bolt 6 XT and Bolt 4K?
- The Bolt 6 XT adds 6 GHz operation and DFS channel access on top of 5 GHz, providing more spectrum options in congested RF environments. The Bolt 4K operates on 5 GHz only.
- Is the Bolt 6 XT cross-compatible with Bolt 4K devices?
- Yes. The Bolt 6 XT is cross-compatible with Bolt 4K series devices over the 5 GHz band.
- How many receivers can one transmitter feed?
- Up to six receivers simultaneously.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for registration and support options.
