Product Overview

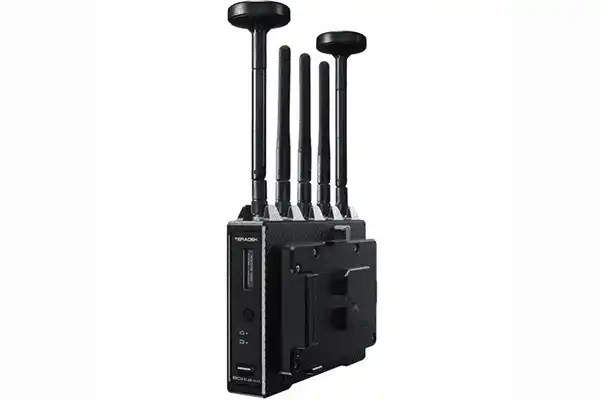

The Teradek Bolt 4K MAX 12G-SDI/HDMI Wireless Transmitter V-Mount (10-2121-V) is the highest-range transmitter in the Bolt 4K lineup, transmitting visually lossless 4K60 video up to 3,000 feet with standard antennas and up to 5,000 feet with the separately available 4K Array Panel antenna. The integrated V-Mount battery plate enables camera-back deployment on feature films and large-scale broadcast productions. This standalone transmitter pairs with any Bolt 4K series receiver for maximum deployment flexibility.
Product Description
The 10-2121-V accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output, transmitting 4K60 HDR video in 10-bit 4:2:2 with less than 1ms latency. The V-Mount battery plate enables hours of untethered operation on professional batteries. AES-256 encryption with RSA-1024 key exchange secures the wireless link, and one TX feeds up to six Bolt 4K series receivers simultaneously. The system supports cross-conversion from HDMI input to SDI loop output, and HDR workflows including HLG, PQ, and HDR-10. The Bolt Manager app for iOS and Android connects via Bluetooth for spectrum analysis and configuration.
Key Features
- 3,000 ft Range (5,000 ft with Panel Antenna) — Maximum-range Bolt 4K transmitter for large-scale productions.
- 4K60 10-bit 4:2:2 HDR — Visually lossless with HLG, PQ, and HDR-10 support.
- 12G-SDI and HDMI 2.0 Inputs — With 12G-SDI loop-through output.
- V-Mount Battery Plate — Integrated for camera-back battery-powered operation.
- HDMI to SDI Cross-Conversion — Converts HDMI input to SDI loop output for hybrid signal workflows.
- Multicast to 6 Receivers — Single TX feeds up to six Bolt 4K series RX units simultaneously.
- AES-256 Encryption — RSA-1024 key exchange for end-to-end wireless security.
- Cross-Compatible with Bolt 4K Series — Pairs with any Bolt 4K transmitter or receiver.
Typical Applications
- Feature film camera-back transmitter
- Large-scale broadcast and live event production
- Auditorium and stadium video village
- Government and public safety video operations
- House of worship multi-camera live production
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2121-V |
| TX Range | Up to 3,000 ft (5,000 ft with 4K Array Panel antenna) |
| Video Latency | <1ms |
| Video Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| Loop Output | 1x 12G-SDI |
| Max Resolution | 4K DCI / UHD at 60fps |
| Color Sampling | 10-bit 4:2:2, Rec. 2020 HDR |
| Operating Frequency | 5 GHz |
| Encryption | AES-256, RSA-1024 key exchange |
| Battery Mount | V-Mount |
| Audio | 48kHz 24-bit PCM embedded |
Frequently Asked Questions
- What receiver is compatible with the Bolt 4K MAX transmitter?
- The 10-2121-V pairs with any Bolt 4K series receiver. Browse compatible receivers at creationnetworks.net.
- How does range extend to 5,000 feet?
- The separately available 4K Array Panel antenna extends range to 5,000 feet line of sight when used with the Bolt 4K MAX transmitter.
- How many receivers can this transmitter support simultaneously?
- Up to six Bolt 4K series receivers can connect to a single 10-2121-V transmitter at the same time.
- Does this transmitter support HDR?
- Yes. HLG, PQ, and HDR-10 with 10-bit 4:2:2 color sampling.
- What warranty covers this product?
- Teradek standard limited warranty. Contact Creation Networks for registration and extended service options.
