Teradek 10-2150 Bolt 4K LT 750 3G-SDI Transmitter & Bolt 4K 750 12G-SDI Receiver Kit
Teradek 10-2150 Bolt 4K LT 750 3G-SDI Transmitter & Bolt 4K 750 12G-SDI Receiver Kit is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek 10-2150 Bolt 4K LT 750 3G-SDI Transmitter & Bolt 4K 750...
Product Overview

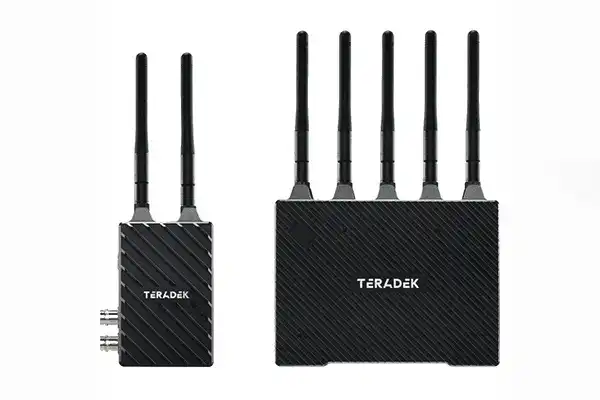

The Teradek 10-2150 Bolt 4K LT 750 3G-SDI Transmitter and Bolt 4K 750 12G-SDI Receiver Kit is a hybrid wireless video kit pairing the compact Bolt 4K LT 750 transmitter with the full Bolt 4K 750 receiver. The transmitter accepts 3G-SDI and HDMI inputs (HD), while the receiver outputs 4K-capable dual 12G-SDI and HDMI outputs — making this kit useful for productions that need a compact, lightweight camera-back transmitter paired with a full-capability 4K monitor receiver.
Product Description
The 10-2150 kit includes the Bolt 4K LT 750 transmitter, which accepts HDMI and 3G-SDI inputs in a compact no-mount body, and the Bolt 4K 750 receiver, which outputs dual 12G-SDI and HDMI 2.0. Both units operate over 5 GHz with AES-256 encryption. The transmitter provides a lightweight solution for camera operators, while the receiver provides the full 12G-SDI output chain for video engineers at the monitor position. Camera metadata, timecode, and start/stop flags transmit wirelessly through the link. Bolt Manager app provides Bluetooth-connected spectrum analysis and configuration.
Key Features
- 750 ft Line-of-Sight Range — Wireless HD transmission with 4K-capable receiver output.
- Hybrid Kit — Compact LT transmitter paired with full Bolt 4K receiver for mixed workflow deployments.
- 3G-SDI and HDMI TX Inputs — Lightweight transmitter for HD camera-back deployment.
- Dual 12G-SDI and HDMI RX Outputs — Full 4K output capability at the monitor position.
- AES-256 Encryption — Secure wireless video link.
- Camera Metadata Pass-Through — Timecode and start/stop flags transmitted wirelessly.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2150 (Hybrid Kit) |
| TX Unit | Bolt 4K LT 750 (3G-SDI, HDMI inputs) |
| RX Unit | Bolt 4K 750 (2x 12G-SDI, HDMI outputs) |
| Wireless Range | Up to 750 ft line of sight |
| Operating Frequency | 5 GHz |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- Why pair an LT transmitter with a full Bolt 4K receiver?
- The LT transmitter offers a more compact and lightweight camera-back option, while the full Bolt 4K receiver provides the complete 12G-SDI output chain at the monitor position for engineers who need maximum output flexibility.
- Can the LT transmitter handle 4K sources?
- The Bolt 4K LT 750 transmitter inputs HD via 3G-SDI and HDMI. For 4K camera-back transmission, see the standard Bolt 4K 750 transmitter (10-2101).
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for registration and support.
