Teradek Bolt 4K 750 12G-SDI / HDMI Wireless Video Kit (Up to 750') - 10-2100
Teradek Bolt 4K 750 12G-SDI / HDMI Wireless Video Kit (Up to 750') - 10-2100 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Bolt 4K 750 12G-SDI / HDMI Wireless Video Kit (Up to 750...
Product Overview

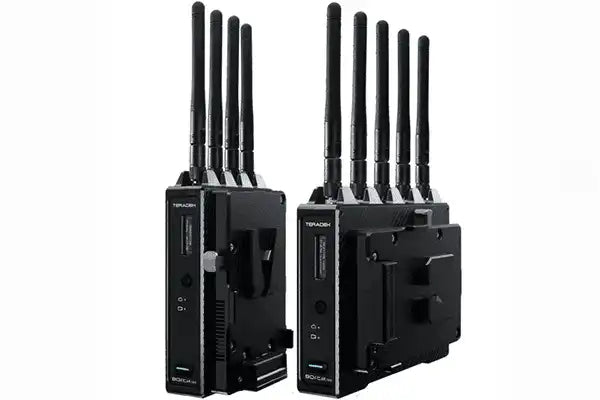

The Teradek Bolt 4K 750 12G-SDI/HDMI Wireless Video Kit (10-2100) transmits and receives visually lossless 4K60 video up to 750 feet line of sight with less than 1ms of latency. This standard kit includes a wireless transmitter and receiver without battery plates, making it suitable for deployments powered via DC or with separately sourced battery solutions. Cross-compatible with all Bolt 4K series devices and Ranger 4K series receivers.
Product Description
The 10-2100 Bolt 4K 750 kit pairs a 12G-SDI/HDMI transmitter with a matching receiver for wireless 4K video transmission across 5 GHz with AES-256 encryption. The transmitter accepts one 12G-SDI input, one HDMI 2.0 input, and provides a 12G-SDI loop output. The receiver delivers two 12G-SDI outputs and one HDMI 2.0 output for signal distribution to monitors, video village, or broadcast equipment. One transmitter feeds up to six receivers simultaneously. Camera timecode, start/stop, and ancillary metadata pass wirelessly through the link. The Bolt Manager app for iOS and Android provides Bluetooth-connected spectrum analysis and configuration.
Key Features
- 750 ft Line-of-Sight Range — Reliable 4K wireless video for studio and live event deployments.
- 4K60 10-bit 4:2:2 HDR — Visually lossless transmission with HLG, PQ, and HDR-10 support.
- 12G-SDI and HDMI 2.0 I/O — TX accepts both; RX outputs dual 12G-SDI and HDMI.
- Multicast to 6 Receivers — Single TX feeds up to six RX units simultaneously.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
- Cross-Compatible with Bolt 4K Series — Interoperates with all Bolt 4K transmitters and receivers.
- Camera Metadata Pass-Through — Timecode, start/stop, and ancillary data over the wireless link.
Typical Applications
- Feature film and commercial production
- Broadcast studio and live event video village
- House of worship multi-camera production
- Training room wireless video distribution
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2100 |
| Wireless Range | Up to 750 ft line of sight |
| Video Latency | <1ms |
| Max Resolution | 4K DCI / UHD at 60fps |
| Color Sampling | 10-bit 4:2:2, Rec. 2020 HDR |
| TX Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| TX Loop Output | 1x 12G-SDI |
| RX Outputs | 2x 12G-SDI, 1x HDMI 2.0 |
| Operating Frequency | 5 GHz |
| Encryption | AES-256, RSA-1024 key exchange |
Frequently Asked Questions
- What is the difference between the 10-2100 and 10-2100-V Deluxe Kit?
- The 10-2100-V Deluxe Kit adds V-Mount battery plates, additional cables, and a carry case. The 10-2100 standard kit includes the TX and RX units only.
- Is this kit cross-compatible with other Bolt 4K devices?
- Yes. Fully cross-compatible with all Bolt 4K series devices over 5 GHz.
- How many receivers can one transmitter feed?
- Up to six simultaneously.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for registration and support.
