Teradek Bolt 4K 750 12G-SDI / HDMI Wireless Video Deluxe Kit (Up to 750', V-Mount) - 10-2100-V

Product Overview

The Teradek Bolt 4K 750 12G-SDI/HDMI Wireless Video Deluxe Kit V-Mount (10-2100-V) transmits and receives visually lossless 4K60 video up to 750 feet line of sight with less than 1ms of latency. This deluxe kit includes integrated V-Mount battery plates on both transmitter and receiver, additional cables, and a carry case — providing a complete, production-ready package for camera crews, video engineers, and integrators deploying wireless 4K video on film sets and live events.

Product Description

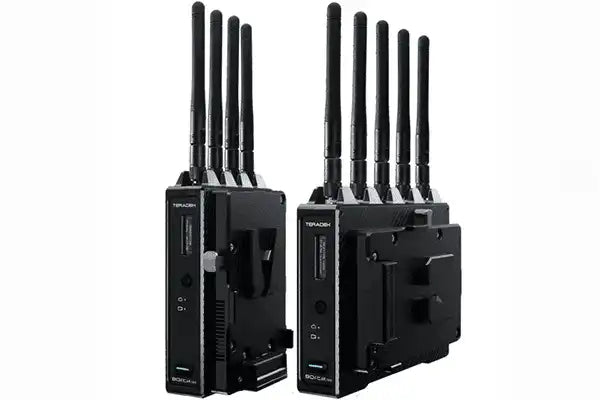

The 10-2100-V Deluxe Kit pairs a Bolt 4K 750 12G-SDI/HDMI wireless transmitter with a matching receiver, both equipped with V-Mount battery plates for professional battery-powered deployment. The transmitter accepts one 12G-SDI input, one HDMI 2.0 input, and provides a 12G-SDI loop output. The receiver delivers two 12G-SDI outputs and one HDMI 2.0 output for signal distribution to monitors, video village, or production switchers. The entire system fits in the included carry case for organized transport between locations.

Operating on 5 GHz with AES-256 encryption and RSA-1024 key exchange, the kit delivers secure, interference-resistant wireless video transmission. One transmitter feeds up to six receivers simultaneously. Cross-compatible with all Bolt 4K series devices, enabling mixed-hardware deployments. Camera timecode, start/stop flags, and ancillary metadata transmit wirelessly through the link. The Bolt Manager app for iOS and Android connects via Bluetooth for spectrum analysis, channel selection, and configuration.

Key Features

• 750 ft Line-of-Sight Range — Reliable 4K wireless video for studio, set, and live event deployments.
• 4K60 10-bit 4:2:2 HDR — Visually lossless transmission with HLG, PQ, and HDR-10 support.
• 12G-SDI and HDMI 2.0 I/O — TX accepts both; RX outputs dual 12G-SDI and HDMI.
• V-Mount Battery Plates Included — Both TX and RX include V-Mount plates for battery-powered operation.
• Deluxe Kit with Carry Case — Additional cables, hot shoe adapter, and carry case included.
• Multicast to 6 Receivers — One TX feeds up to six RX units simultaneously.
• AES-256 Encryption — RSA-1024 key pairing for end-to-end wireless security.
• Cross-Compatible with Bolt 4K Series — Interoperates with all Bolt 4K transmitters and receivers.
• Camera Metadata Pass-Through — Timecode, start/stop, and ancillary data over the wireless link.

Typical Applications

• Feature film and commercial production
• Broadcast studio and live event video village
• Conference room and boardroom AV integration
• House of worship multi-camera production
• Training room wireless video distribution

Technical Specifications

Frequently Asked Questions

What does the Deluxe Kit include beyond the standard kit?

The Deluxe Kit adds V-Mount battery plates on both TX and RX, a 3/8-inch light stand adapter, hot shoe adapter, additional HDMI and SDI cables, a 2-pin to P-Tap cable, and a large carry case compared to the standard kit.

Is this kit cross-compatible with other Bolt 4K devices?

Yes. The Bolt 4K 750 is fully cross-compatible with all Bolt 4K series transmitters and receivers over 5 GHz.

Can the transmitter feed multiple monitors simultaneously?

Yes. One transmitter can feed up to six Bolt 4K series receivers at the same time.

Does this kit support HDR workflows?

Yes. The Bolt 4K supports 10-bit 4:2:2 with Rec. 2020 HDR, compatible with HLG, PQ, and HDR-10.

What is the warranty?

Teradek provides a standard limited warranty. Contact Creation Networks for registration and support options.

What batteries are compatible with the V-Mount plates?

Standard professional V-mount batteries are compatible. Batteries sold separately.
