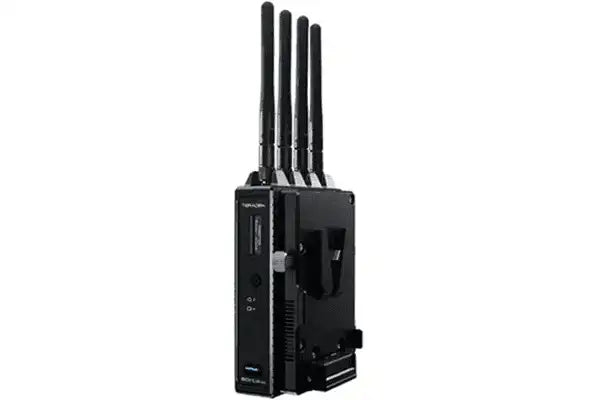

Teradek 10-2101 Bolt 4K 750 12G-SDI/HDMI Wireless Transmitter
Teradek 10-2101 Bolt 4K 750 12G-SDI/HDMI Wireless Transmitter is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek 10-2101 Bolt 4K 750 12G-SDI/HDMI Wireless Transmitter
Product Overview
The Teradek 10-2101 Bolt 4K 750 12G-SDI/HDMI Wireless Transmitter is the standalone TX unit from the Bolt 4K 750 series, transmitting visually lossless 4K60 video up to 750 feet line of sight. This no-mount version is optimized for DC-powered camera-back or studio deployments. Pairs with any Bolt 4K series receiver for flexible short-range wireless 4K video on film sets and broadcast productions.
Product Description
The 10-2101 accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output, transmitting 4K60 HDR in 10-bit 4:2:2 over 5 GHz with less than 1ms latency. Powers via 2-pin LEMO DC input. AES-256 encryption with RSA-1024 key exchange secures the link; one TX feeds up to six receivers simultaneously. Bolt Manager app provides Bluetooth-connected spectrum analysis and configuration. Cross-compatible with all Bolt 4K series devices.
Key Features
- 750 ft TX Range — Compact short-range 4K wireless transmitter.
- 4K60 10-bit 4:2:2 HDR — Visually lossless transmission with sub-1ms latency.
- 12G-SDI and HDMI 2.0 Inputs — With 12G-SDI loop-through output.
- No Battery Mount — DC-powered for studio and fixed deployments.
- Multicast to 6 Receivers — One TX feeds up to six Bolt 4K RX units.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2101 |
| TX Range | Up to 750 ft line of sight |
| Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| Loop Output | 1x 12G-SDI |
| Operating Frequency | 5 GHz |
| Battery Mount | None (DC-powered) |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receivers pair with the 10-2101?
- Any Bolt 4K series receiver. Browse at creationnetworks.net.
- For battery-powered operation, what should I order instead?
- See the Bolt 4K 750 Deluxe Kit V-Mount (10-2100-V) which includes integrated battery plates.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks.
