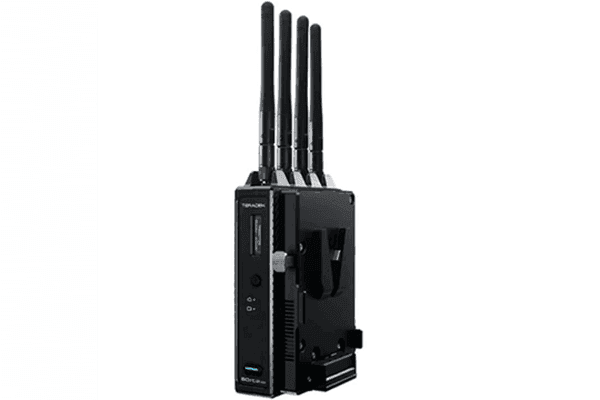

Teradek Bolt 4K 1500 12G-SDI/HDMI Wireless Transmitter - 10-2111
Teradek Bolt 4K 1500 12G-SDI/HDMI Wireless Transmitter - 10-2111 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Bolt 4K 1500 12G-SDI/HDMI Wireless Transmitter - 10-2111
Product Overview
The Teradek Bolt 4K 1500 12G-SDI/HDMI Wireless Transmitter (10-2111) is the standalone TX unit from the Bolt 4K 1500 series, transmitting visually lossless 4K60 video up to 1,500 feet line of sight. This no-mount version is configured for DC-powered deployment or use with separately sourced battery solutions. Pairs with any Bolt 4K series receiver for flexible wireless 4K video deployment on film sets and broadcast productions.
Product Description
The 10-2111 accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output, transmitting 4K60 HDR in 10-bit 4:2:2 over 5 GHz with less than 1ms latency. No battery plate is included — the unit powers via 2-pin LEMO DC input. AES-256 encryption with RSA-1024 key exchange secures the link; one TX feeds up to six receivers simultaneously. Bolt Manager app provides Bluetooth-connected spectrum analysis and configuration.
Key Features
- 1,500 ft TX Range — Mid-range 4K wireless transmitter for film and broadcast production.
- 4K60 10-bit 4:2:2 HDR — Visually lossless transmission with sub-1ms latency.
- 12G-SDI and HDMI 2.0 Inputs — With 12G-SDI loop-through output.
- No Battery Mount — DC-powered for studio and fixed deployments.
- Multicast to 6 Receivers — One TX feeds up to six Bolt 4K RX units simultaneously.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2111 |
| TX Range | Up to 1,500 ft line of sight |
| Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| Loop Output | 1x 12G-SDI |
| Operating Frequency | 5 GHz |
| Battery Mount | None (DC-powered) |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receivers pair with the 10-2111?
- Any Bolt 4K series receiver. Browse at creationnetworks.net.
- How does this differ from the 10-2111-V?
- The 10-2111 has no battery plate and is DC-powered. The 10-2111-V adds an integrated V-Mount battery plate for battery-powered operation.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks.
