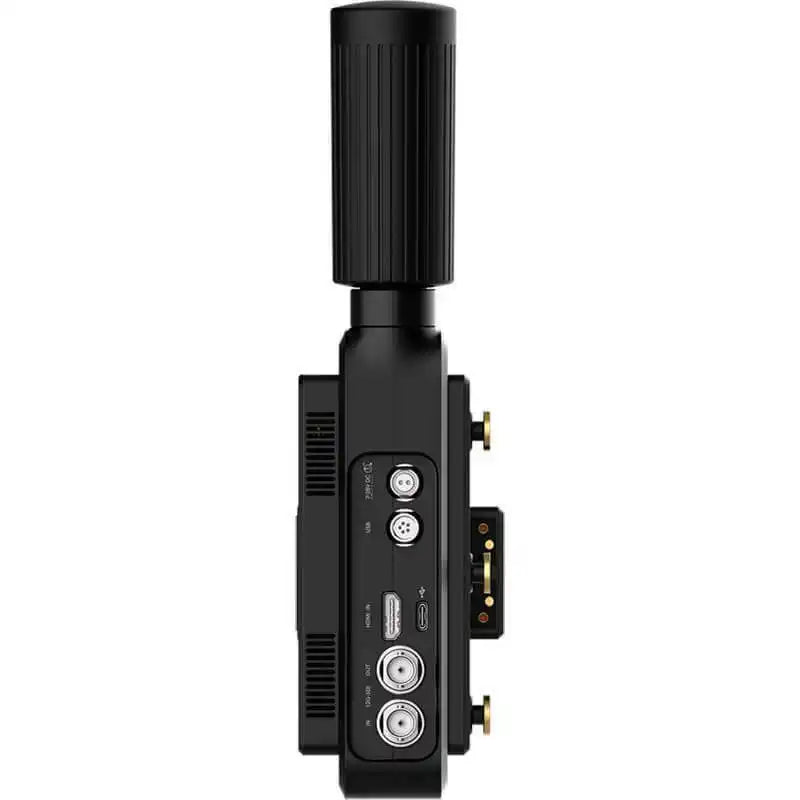

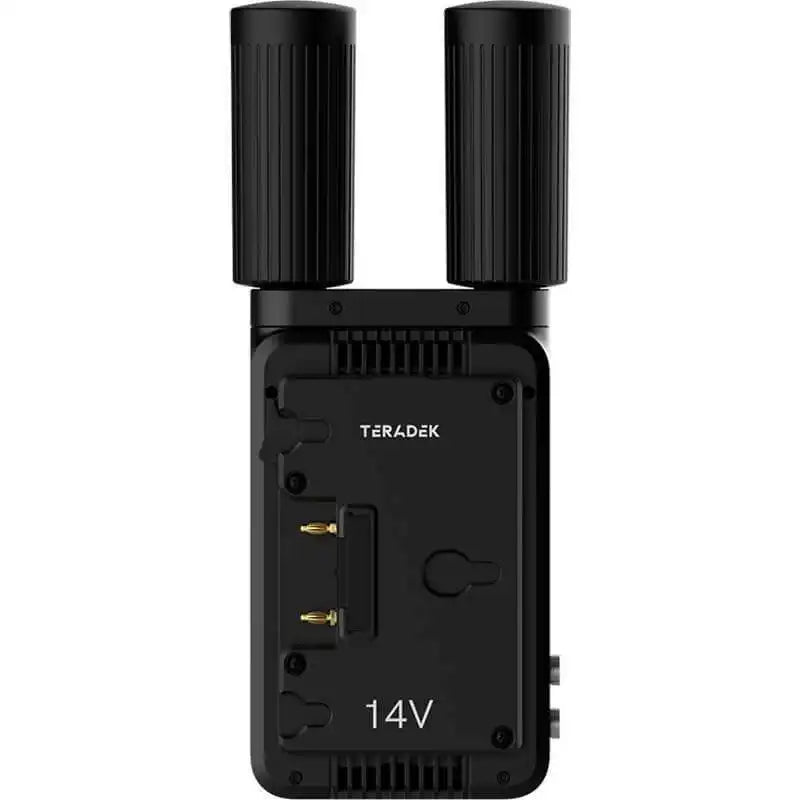

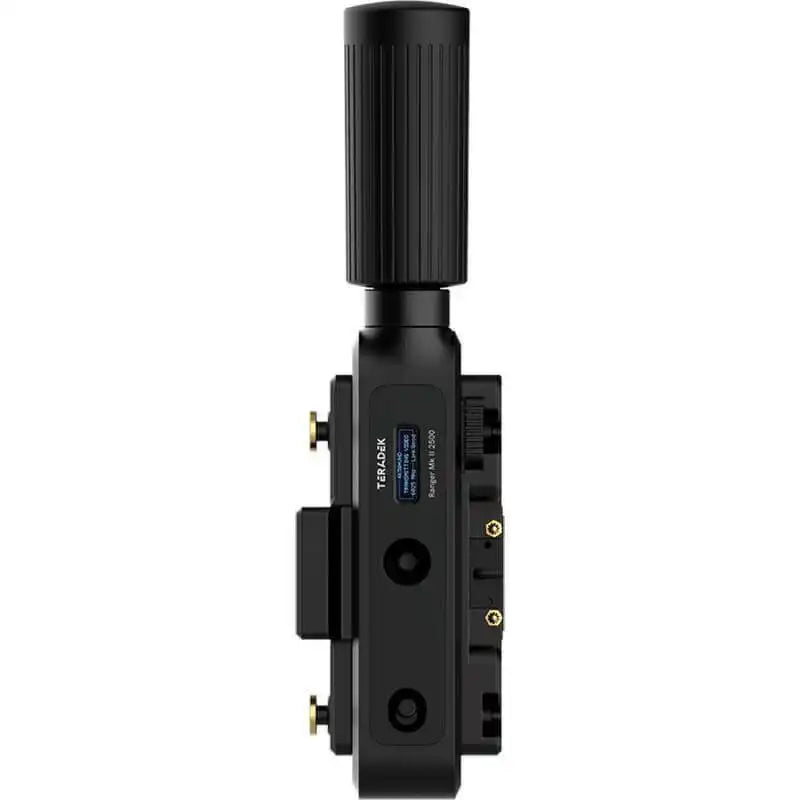

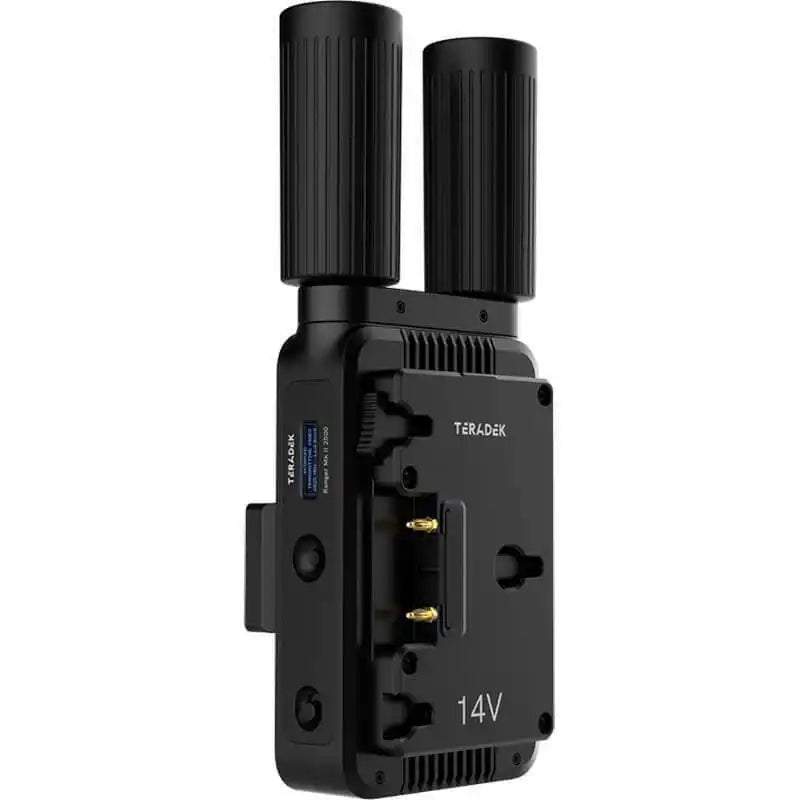

Teradek 10-2596-V Ranger Mk II 5000 12G-SDI/HDMI - Wireless TX V-Mount
Product Overview
The Teradek 10-2596-V Ranger Mk II 5000 12G-SDI/HDMI Wireless Transmitter (V-Mount) transmits visually lossless 4K60 video up to 5,000 feet line of sight across 4.9–6.0 GHz. The integrated V-Mount battery plate enables camera-back or rig-mounted battery-powered deployment for feature films and large-scale broadcast productions. Pairs with any Ranger MK II or Bolt 4K series receiver.
Product Description
The 10-2596-V accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output, and transmits 4K60 HDR video in 10-bit 4:2:2 with less than 1ms latency across distances up to 5,000 feet line of sight. V-Mount battery plate powers the unit on standard professional batteries without DC cabling. AES-256 encryption with RSA-1024 key exchange secures the link; one transmitter feeds up to six receivers simultaneously. Bolt Manager app connects via Bluetooth for spectrum analysis and remote configuration.
Key Features
- 5,000 ft TX Range — Maximum-range standalone transmitter for large-scale productions.
- 4K60 10-bit 4:2:2 HDR — Visually lossless wireless video with Rec. 2020 HDR.
- 12G-SDI and HDMI 2.0 Inputs — With 12G-SDI loop-through for signal distribution.
- V-Mount Battery Plate — Integrated for professional battery-powered operation.
- Multicast to 6 Receivers — Single TX feeds up to six RX units simultaneously.
- AES-256 Encryption — RSA-1024 key pairing for wireless security.
Typical Applications
- Feature film camera-back transmitter
- Large-scale broadcast and live event production
- Auditorium and stadium production
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2596-V |
| TX Range | Up to 5,000 ft line of sight |
| Video Latency | <1ms |
| Video Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| Loop Output | 1x 12G-SDI |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | V-Mount |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receivers pair with the 10-2596-V?
- Compatible with Ranger MK II receivers and Bolt 4K series receivers over 5 GHz. Browse options at creationnetworks.net.
- How many receivers can this transmitter feed?
- Up to six receivers simultaneously.
- What warranty applies?
- Teradek provides a standard limited warranty. Contact Creation Networks for details.
