Teradek 10-2596-G Ranger Mk II 5000 12G-SDI/HDMI - Wireless TX Gold...
Product Overview

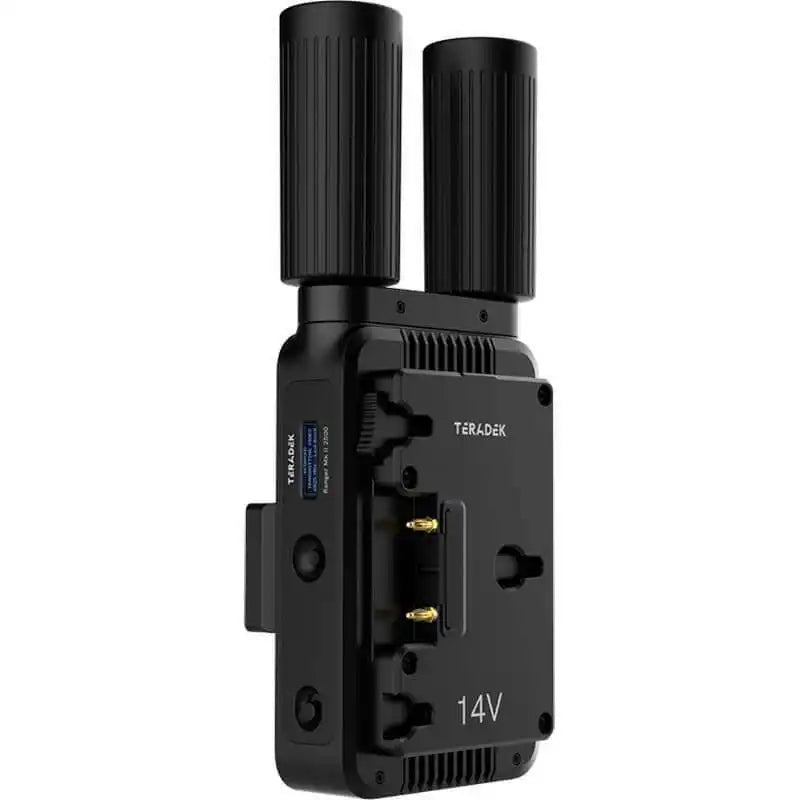

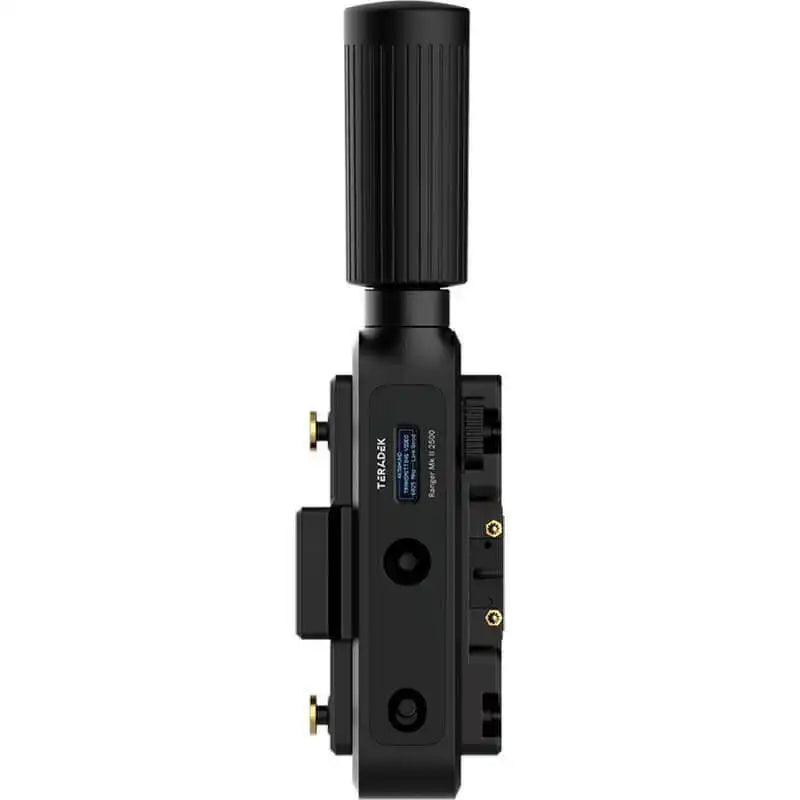

The Teradek 10-2596-G Ranger Mk II 5000 12G-SDI/HDMI Wireless Transmitter (Gold-Mount) is the standalone TX unit from the Ranger MK II 5000 series, transmitting visually lossless 4K60 video up to 5,000 feet line of sight across 4.9–6.0 GHz. The integrated Gold Mount battery plate enables professional battery-powered camera-back deployment on feature films and large-scale broadcast productions. Compatible with any Ranger MK II or Bolt 4K series receiver.
Product Description

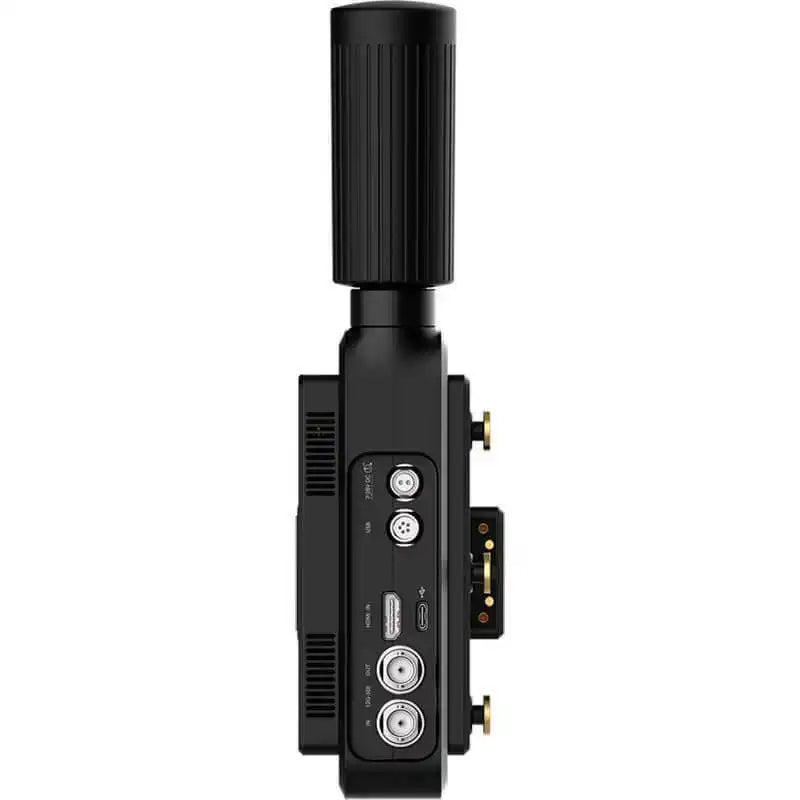

The 10-2596-G accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output, and transmits uncompressed 4K60 HDR video in 10-bit 4:2:2 with less than 1ms latency. The Gold Mount battery plate powers the unit via Anton/Bauer-compatible batteries without DC cabling. AES-256 encryption with RSA-1024 key exchange secures the wireless link. One transmitter can feed up to six receivers simultaneously. The Bolt Manager app for iOS, Android, macOS, and Windows connects via Bluetooth for spectrum analysis and remote configuration.
Key Features
- 5,000 ft TX Range — Maximum-range Ranger MK II transmitter for long-distance production deployments.
- 4K60 10-bit 4:2:2 HDR — Visually lossless transmission with Rec. 2020 HDR and sub-1ms latency.
- 12G-SDI and HDMI 2.0 Inputs — With 12G-SDI loop-through output for signal distribution.

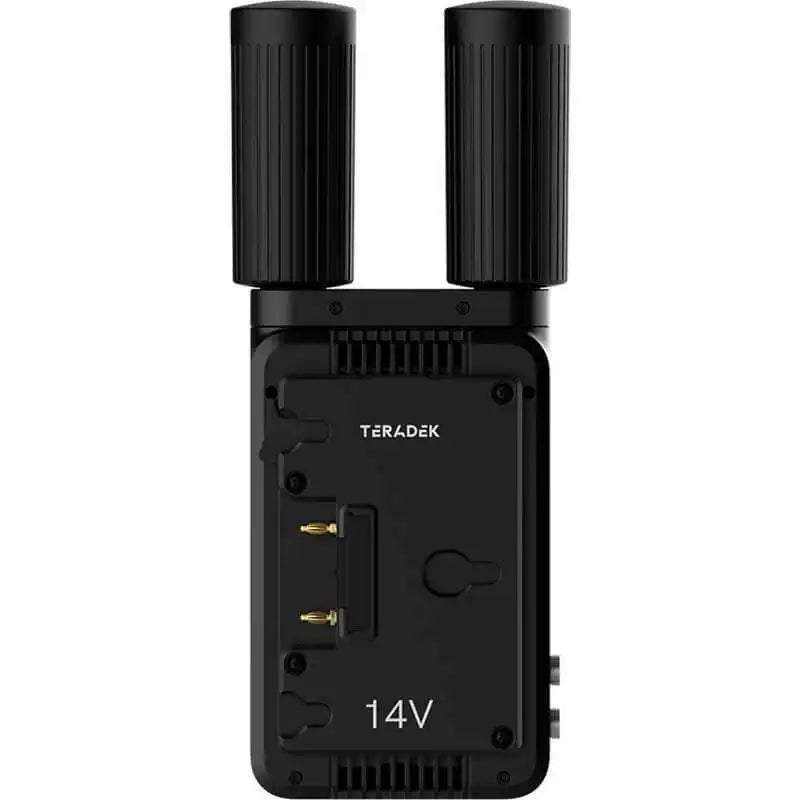

- Gold Mount Battery Plate — Integrated plate for camera-back battery-powered operation.
- Multicast to 6 Receivers — Single TX feeds up to six RX units simultaneously.
- AES-256 Encryption — RSA-1024 key pairing for wireless security.
- Bolt Manager App — Bluetooth spectrum analysis and remote configuration.
Typical Applications
- Feature film camera-back transmitter
- Large-scale broadcast and live event production
- Auditorium and stadium video production
- Government video operations
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2596-G |
| TX Range | Up to 5,000 ft line of sight |
| Video Latency | <1ms |
| Video Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| Loop Output | 1x 12G-SDI |
| Color Sampling | 10-bit 4:2:2, Rec. 2020 HDR |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | Gold Mount |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receiver is compatible with this transmitter?
- The 10-2596-G is compatible with Ranger MK II receivers and Bolt 4K series receivers over 5 GHz. Browse compatible receivers at creationnetworks.net.
- How many receivers can this transmitter feed?
- Up to six receivers can connect to this transmitter simultaneously.
- What is the warranty?
- Teradek provides a standard limited warranty. Contact Creation Networks for registration and support options.
- Does this transmitter support HDR?
- Yes. The 10-2596-G supports 10-bit 4:2:2 with Rec. 2020 HDR for HLG, PQ, and HDR-10 workflows.
