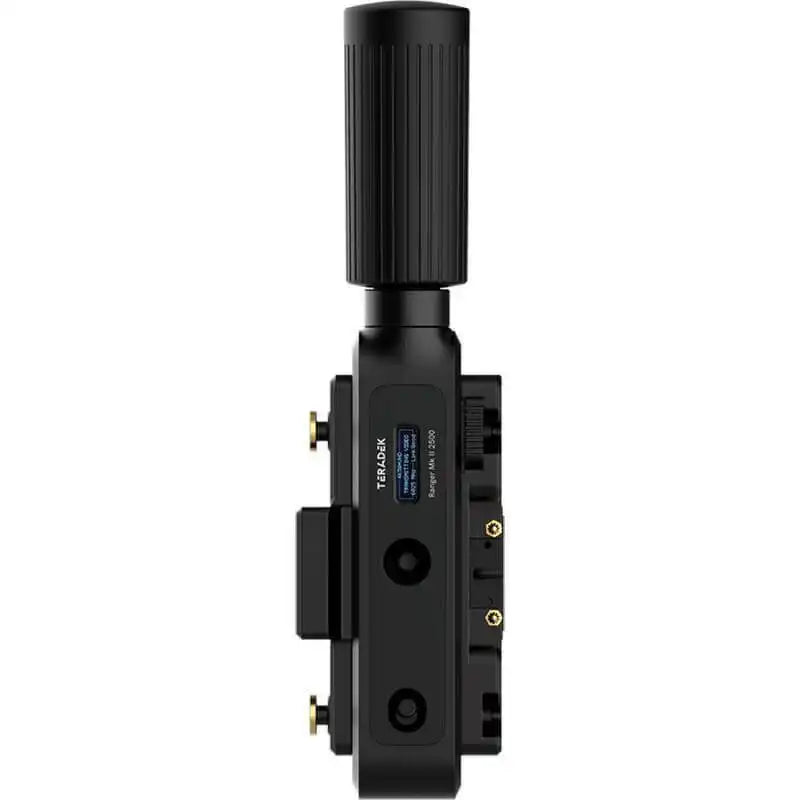

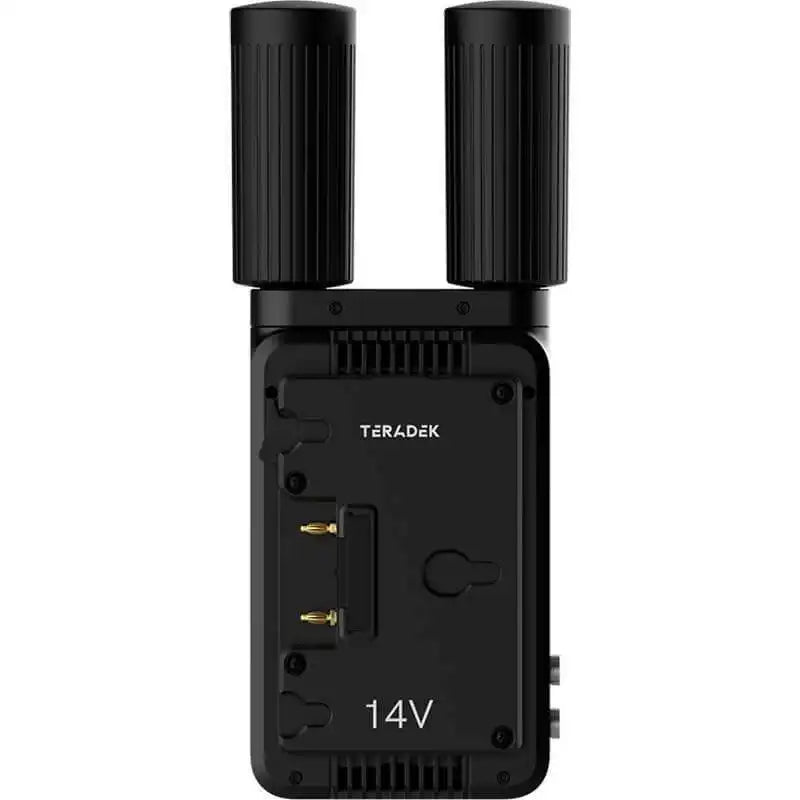

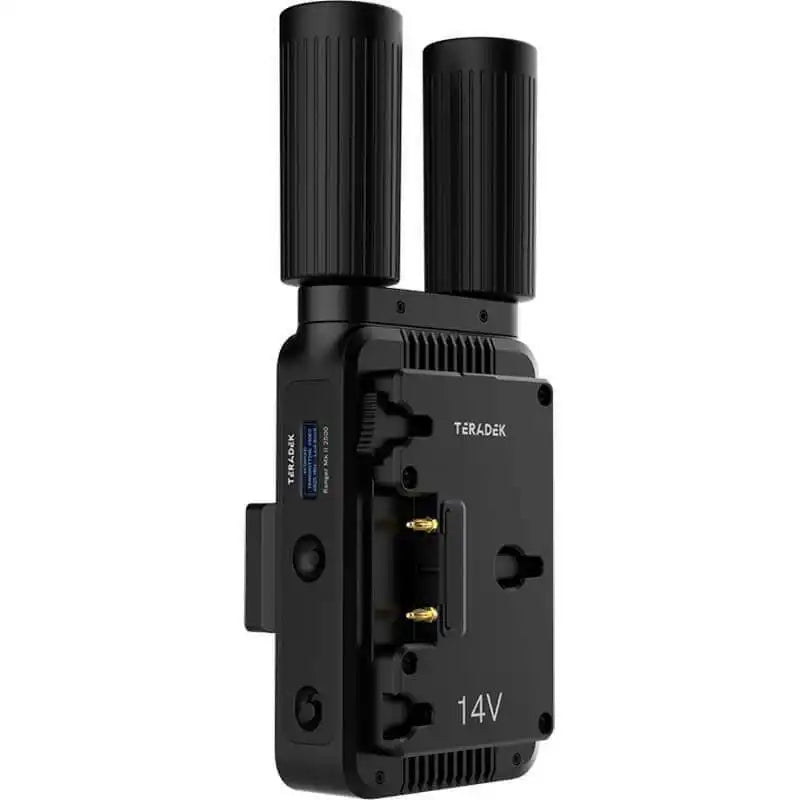

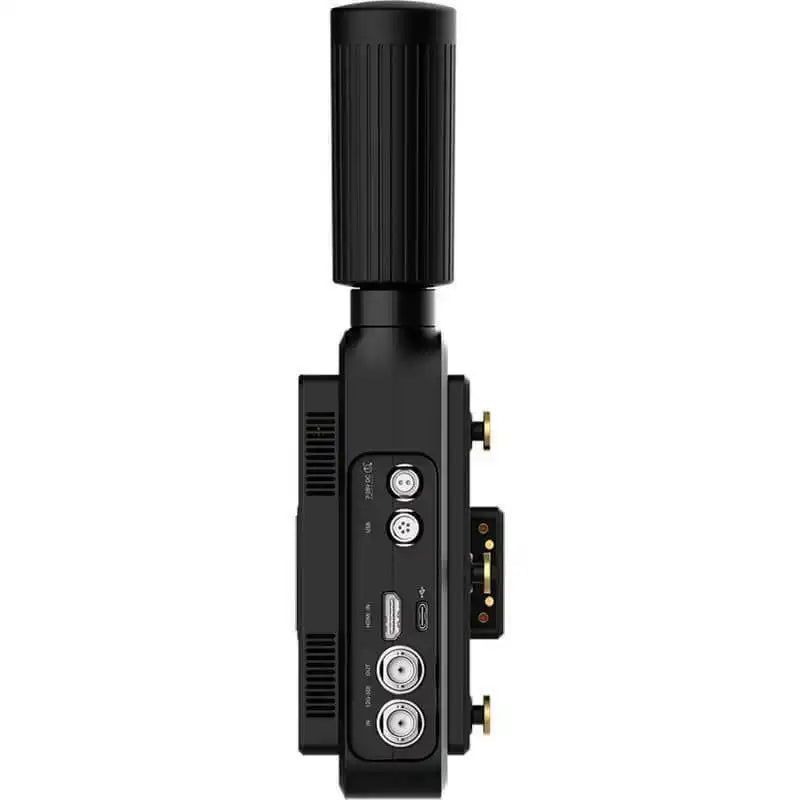

Teradek 10-2591-G Ranger Mk II 2500 12G-SDI/HDMI - Wireless TX Gold-Mount
Teradek 10-2591-G Ranger Mk II 2500 12G-SDI/HDMI - Wireless TX Gold-Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek 10-2591-G Ranger Mk II 2500 12G-SDI/HDMI - Wireless TX Gold...
Product Overview
The Teradek 10-2591-G Ranger Mk II 2500 12G-SDI/HDMI Wireless Transmitter (Gold-Mount) is the standalone TX unit from the Ranger MK II 2500 series, transmitting visually lossless 4K60 video up to 2,500 feet line of sight. The integrated Gold Mount battery plate enables professional camera-back or rig-mounted battery-powered deployment for broadcast and film productions. Pairs with any Ranger MK II or Bolt 4K series receiver over 5 GHz.
Product Description
The 10-2591-G accepts 12G-SDI and HDMI 2.0 inputs with a 12G-SDI loop output, transmitting 4K60 HDR in 10-bit 4:2:2 across 4.9–6.0 GHz with less than 1ms latency. Gold Mount battery plate powers the unit via Anton/Bauer-compatible batteries. AES-256 encryption with RSA-1024 key exchange secures the link; one TX feeds up to six receivers simultaneously. Bolt Manager app connects via Bluetooth for spectrum analysis and configuration.
Key Features
- 2,500 ft TX Range — Mid-to-long-range 4K wireless transmitter for broadcast and film production.
- 4K60 10-bit 4:2:2 HDR — Visually lossless with Rec. 2020 HDR and sub-1ms latency.
- 12G-SDI and HDMI 2.0 Inputs — With 12G-SDI loop-through output.
- Gold Mount Battery Plate — Integrated for professional camera-back battery-powered operation.
- Multicast to 6 Receivers — Single TX feeds up to six RX units simultaneously.
- AES-256 Encryption — RSA-1024 key exchange for end-to-end wireless security.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2591-G |
| TX Range | Up to 2,500 ft line of sight |
| Video Latency | <1ms |
| Video Inputs | 1x 12G-SDI, 1x HDMI 2.0 |
| Loop Output | 1x 12G-SDI |
| Color Sampling | 10-bit 4:2:2, Rec. 2020 HDR |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | Gold Mount |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receivers pair with the 10-2591-G?
- Ranger MK II receivers and Bolt 4K series receivers over 5 GHz. Browse at creationnetworks.net.
- How does the Gold Mount version differ from the V-Mount (10-2591-V)?
- Uses Anton/Bauer Gold Mount battery plates instead of V-mount plates. All video performance specifications are identical.
- How many receivers can this TX feed simultaneously?
- Up to six simultaneously.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for registration and support.
