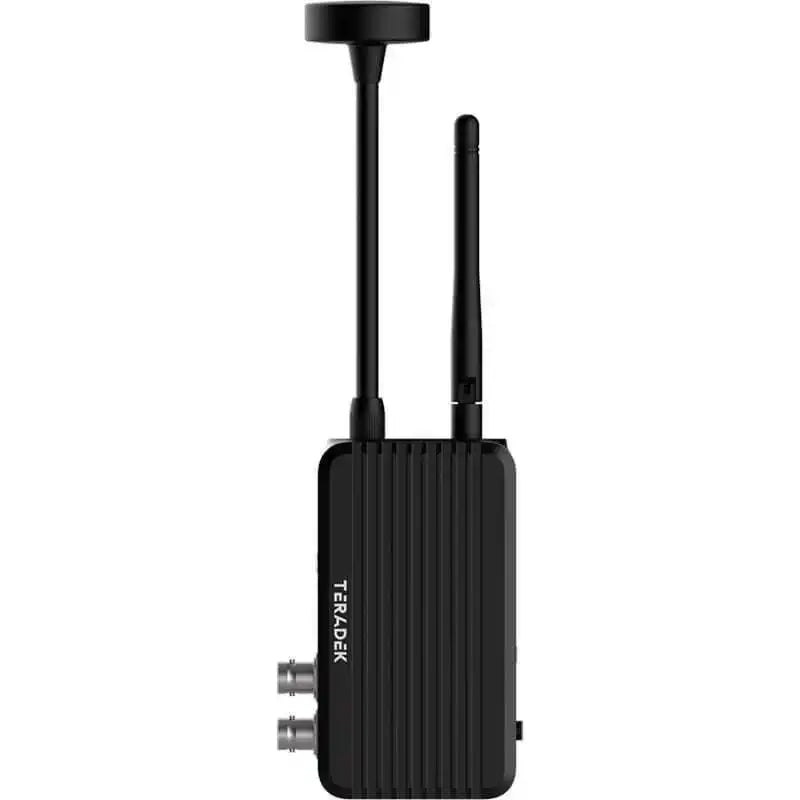

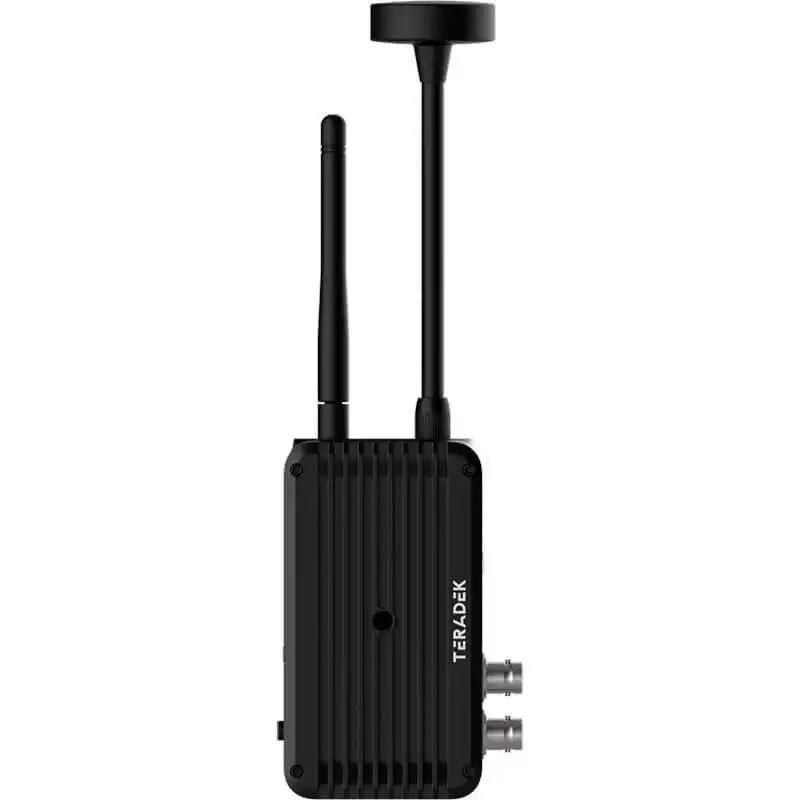

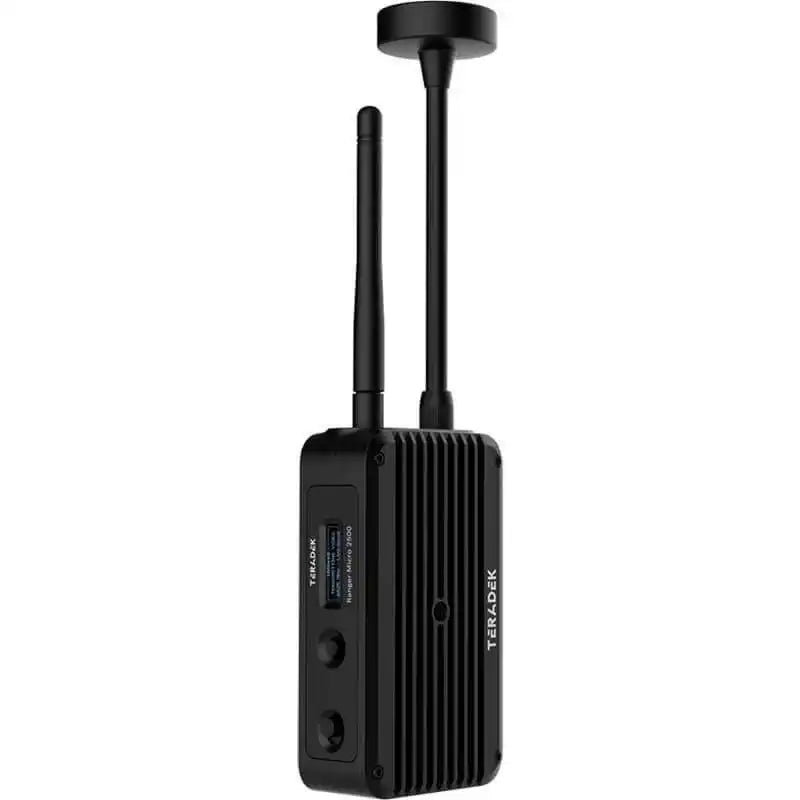

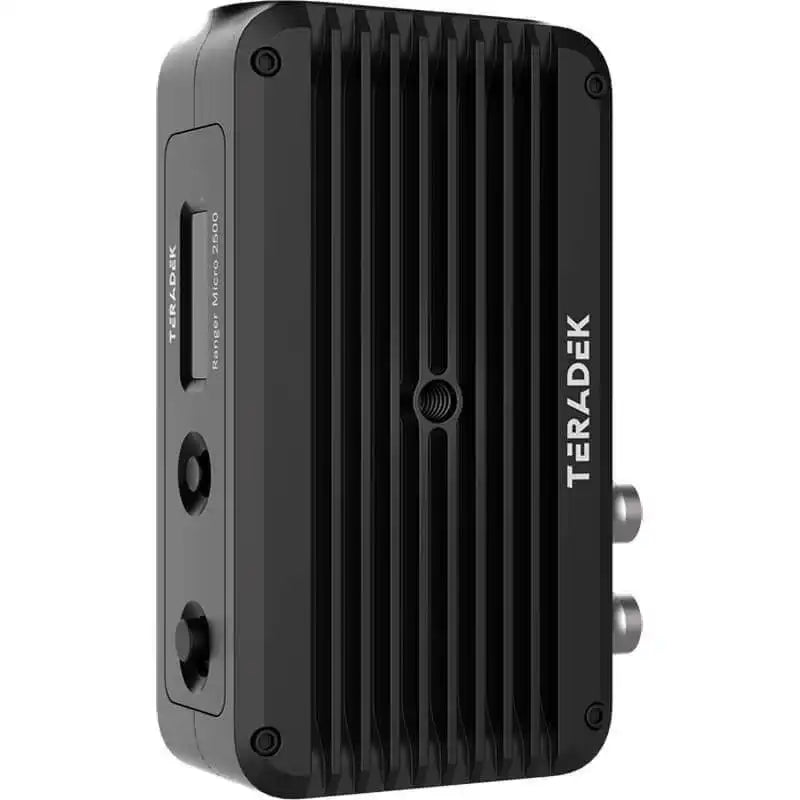

Teradek 10-2541 Ranger Micro 2500 3G-SDI/HDMI - Wireless TX No Mount
Teradek 10-2541 Ranger Micro 2500 3G-SDI/HDMI - Wireless TX No Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek 10-2541 Ranger Micro 2500 3G-SDI/HDMI - Wireless TX No Mount
Product Overview
The Teradek 10-2541 Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter (No Mount) is the standalone TX unit from the Ranger Micro 2500 series, transmitting wireless HD video up to 2,500 feet line of sight across 4.9–6.0 GHz. Without a battery plate, this transmitter is optimized for DC-powered deployments or use with separately sourced mounting and battery solutions. Pairs with any Ranger Micro or compatible Teradek receiver.
Product Description
The 10-2541 accepts 3G-SDI and HDMI inputs with a 3G-SDI loop output, transmitting wirelessly over 4.9–6.0 GHz with visually lossless compression and sub-1ms latency. AES-256 encryption with RSA-1024 key exchange secures the link. Bolt Manager app connects via Bluetooth for spectrum analysis and remote configuration. Compatible with Teradek Core cloud management for fleet monitoring.
Key Features
- 2,500 ft TX Range — Mid-to-long-range HD wireless transmitter.
- 3G-SDI and HDMI Inputs — HD signal compatibility with 3G-SDI loop output.
- No Battery Mount — DC-powered configuration for studio and fixed deployments.
- 4.9–6.0 GHz Operation — Wide frequency band with auto/manual channel selection.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2541 |
| TX Range | Up to 2,500 ft line of sight |
| Video Inputs | 3G-SDI, HDMI |
| Loop Output | 3G-SDI |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | None (DC-powered) |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receiver pairs with the 10-2541?
- Compatible Ranger Micro receivers and other Teradek receivers in the same frequency family. Browse at creationnetworks.net.
- Why no battery mount?
- The No Mount version is optimized for DC-powered or studio deployments. For battery-powered camera-back use, see the Gold Mount or V-Mount versions.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for support.
