Teradek 10-2531 Ranger Micro 750 3G-SDI/HDMI - Wireless TX No Mount
Teradek 10-2531 Ranger Micro 750 3G-SDI/HDMI - Wireless TX No Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek 10-2531 Ranger Micro 750 3G-SDI/HDMI - Wireless TX No Mount
Product Overview

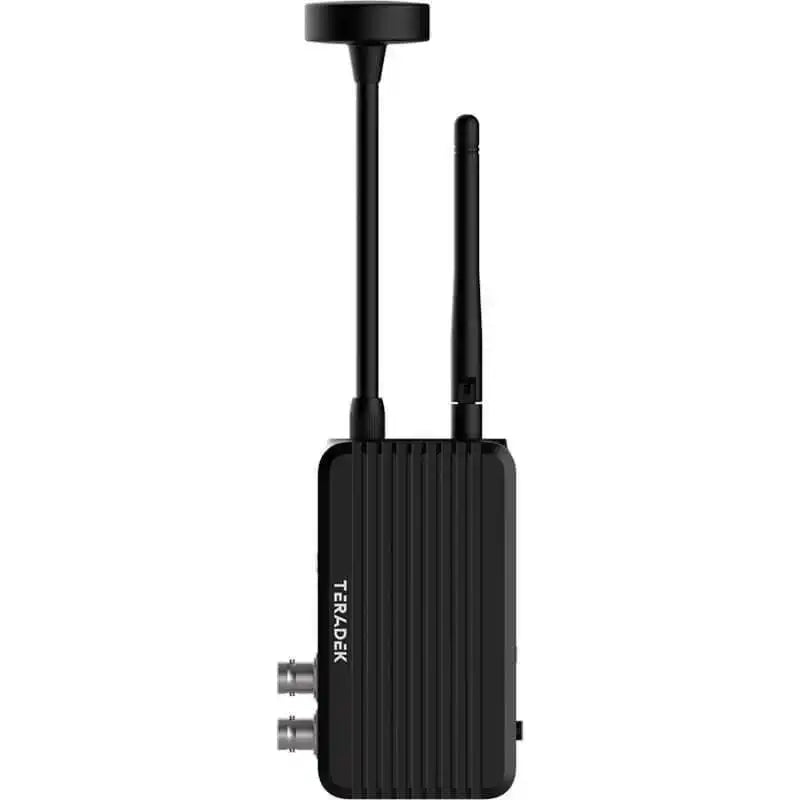

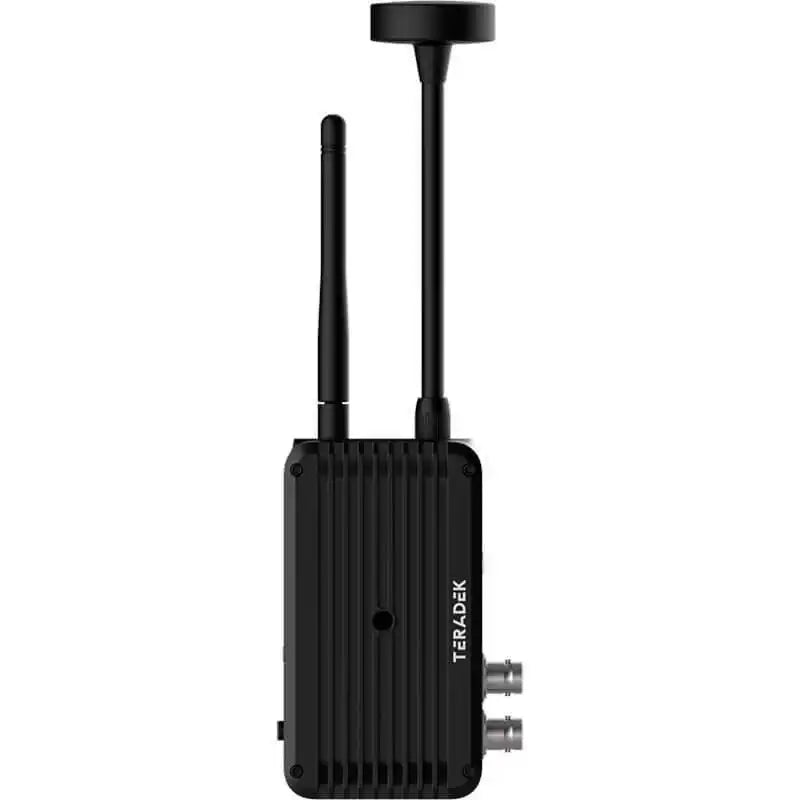

The Teradek 10-2531 Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter (No Mount) is the standalone TX unit from the Ranger Micro 750 series, transmitting wireless HD video up to 750 feet line of sight across 4.9–6.0 GHz. The no-mount configuration is optimized for DC-powered studio or fixed deployments without a battery plate. Pairs with compatible Ranger Micro or Teradek receivers.
Product Description
The 10-2531 accepts 3G-SDI and HDMI inputs with a 3G-SDI loop output, transmitting wirelessly over 4.9–6.0 GHz with visually lossless compression and sub-1ms latency. Powers via DC input without a battery plate. AES-256 encryption and RSA-1024 key exchange secure the link. Bolt Manager app provides Bluetooth-connected spectrum analysis and configuration.
Key Features
- 750 ft TX Range — Compact short-range HD wireless transmitter.
- 3G-SDI and HDMI Inputs — HD signal compatibility with 3G-SDI loop output.
- No Battery Mount — DC-powered for studio and fixed deployments.
- AES-256 Encryption — RSA-1024 key exchange for wireless security.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 10-2531 |
| TX Range | Up to 750 ft line of sight |
| Inputs | 3G-SDI, HDMI |
| Loop Output | 3G-SDI |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | None (DC-powered) |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What receivers pair with the 10-2531?
- Compatible Ranger Micro receivers. Browse at creationnetworks.net.
- For battery-powered use, what should I order?
- See the Ranger Micro 750 Gold Mount or V-Mount kit versions which include integrated battery plates.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks.
