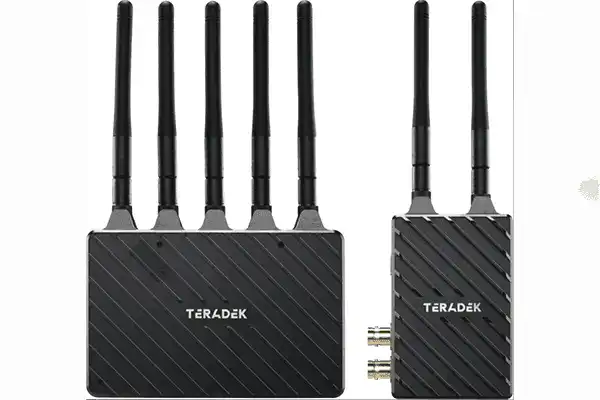

Teradek 10-2200 Bolt 4K LT 750 3G-SDI/HDMI Wireless Transmitter and Receiver Kit - No Mount

Teradek

The Teradek 10-2200 Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry. Featuring real-Time 4K Wireless Video the Bolt 4K transmits uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay up to 750 feet of range. The Bolt 4K has True HDR Color and is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows. The Rock-Solid Reliable Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments. Universal Compatibility means each transmitter can send video to up to 6 receivers and will work with any model in the Bolt 4K line.

The Bolt 4K transmitter has one 12G-SDI, one HDMI 2.0 and a 12G-SDI looping output and on the receiver side it's two 12G-SDI and one HDMI 2.0. Optional Gold or V-mount battery plates with pass-through power available on both TX & RX as well as Camera Metadata like send start and stop flags, timecode, and other ancillary data all over the wireless link. With the receiver you can upload and apply custom 3D LUTs to monitor each take with the look you're after.The Bolt App uses Bolt 4K's integrated Bluetooth to give you all of its settings in the palm of your hand.

Zero-Delay 4K Wireless Video
Transmit and receive images up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no image delay (>0.001sec).

Transmitter:
Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
Output: 1x 3G-SDI (up to 1080p60)

Receiver:
Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Send and receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal transmission and reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Send Signal up to 6 Receivers
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.

Lightweight Body with Versatile Mounting
TX Mounting: M3 / 1/4"-20
RX Mounting: M3 / 1/4"-20 / 5/8" x16

Universal Cross-Compatibility between all Bolt 4K Devices
Send and receive signals between any Bolt 4K series of devices for expanding workflow requirements.

Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.
