Televic T-CAM package CM70 Conference Camera Tracking Solution - 71.98.1305

Product Overview

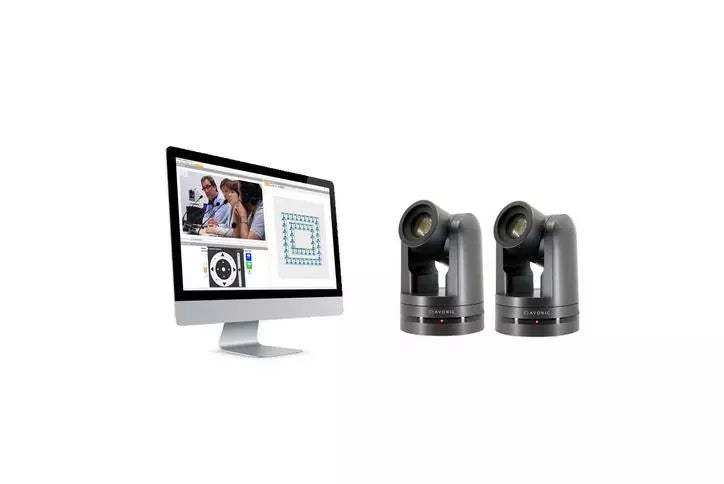

The Televic T-CAM Package CM70 is a complete conference camera tracking system engineered for native integration with Televic Plixus conferencing infrastructure. The package combines the Avonic CM70 PTZ IP camera, a video switcher, T-CAM software, and wall/ceiling mounting hardware into a single, installation-ready solution. When a delegate activates a microphone on any Plixus unit, the system automatically switches to the corresponding camera preset—eliminating the need for a dedicated camera operator. Designed for permanent commercial AV deployment, T-CAM is suited for council chambers, boardrooms, and auditoriums requiring reliable automated video.

Product Description

The Avonic CM70 PTZ IP camera delivers up to 1080p/60fps with simultaneous IP, HD-SDI, and HDMI outputs. Power over Ethernet (PoE) keeps installation clean—a single Cat cable carries both data and power to the camera location. T-CAM software interfaces directly with the Plixus conference system: microphone activation events trigger automatic camera switching with no operator input. AV technicians configure camera presets and zones using the included desktop software, supporting up to four camera positions per installation. The video switcher, included in the package, handles all switching logic. Wall and ceiling mounts with integrated cable management round out the kit, making this a complete automatic camera tracking solution for Plixus-based conference rooms and government spaces.

Key Features

• Automated Speaker Tracking — Camera view switches automatically when a delegate activates their microphone on the Plixus system; no operator intervention required during meetings.
• Avonic CM70 PTZ Camera — Up to 1080p/60fps resolution with simultaneous IP, HD-SDI, and HDMI outputs for flexible video distribution.
• Power over Ethernet — Single Cat cable delivers data and power to the camera, reducing cable runs and installation time.
• Up to 4 Camera Zones — Supports up to four cameras per system for full room coverage or multi-panel configurations.
• Native Plixus Integration — Direct integration with any Televic Plixus conference system; no third-party middleware required.

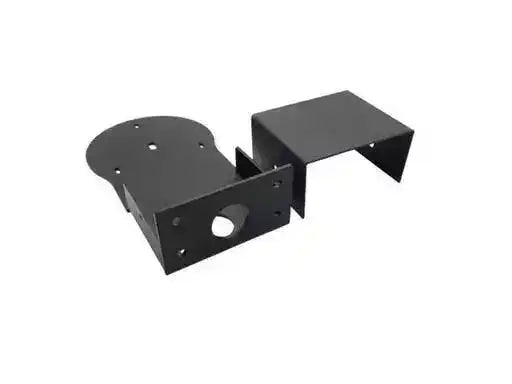

• Wall and Ceiling Mount Included — Integrated cable management channels; suitable for permanent fixed installations.
• Desktop Configuration Software — AV technicians define camera presets and zones without scripting or custom programming.
• Video Switcher Included — Dedicated hardware switching logic included in the package for a complete, self-contained system.

Typical Applications

• Boardroom
• Conference room
• Government space
• Auditorium
• All-hands room

Technical Specifications

Frequently Asked Questions

Is T-CAM compatible with non-Plixus conference systems?
No. T-CAM relies on native microphone activation signals from Televic Plixus units. It is not designed to work with third-party conferencing systems.

How many cameras does the CM70 package support?
Up to four cameras can be connected and managed simultaneously per T-CAM installation. The CM70 package is a starter configuration with two dedicated cameras.

Does T-CAM require a dedicated camera operator during meetings?
No. Once camera presets are configured by an AV technician, speaker tracking is fully automated throughout the meeting.

What is included in the T-CAM Package CM70?
The package includes the Avonic CM70 PTZ IP camera, T-CAM software license, video switcher, and wall/ceiling mount hardware. Additional cameras can be added up to the four-camera maximum.

What video resolution does the CM70 camera support?
The Avonic CM70 delivers up to 1080p at 60fps with simultaneous IP, HD-SDI, and HDMI outputs.

Is PoE supported?
Yes. The CM70 camera is powered via PoE, allowing a single Cat cable to carry both data and power to the camera location.
