Televic IP-CAM CM70 PTZ IP Camera & Licence - 71.98.1306

Product Overview

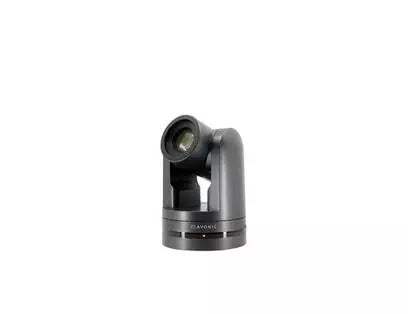

The Televic IP-CAM CM70 PTZ IP Camera and License is an expansion unit for T-CAM camera tracking installations, adding one additional Avonic CM70 PTZ IP camera and its corresponding T-CAM software license to an existing T-CAM Package deployment. The CM70 delivers 1080p/60fps video with simultaneous IP, HD-SDI, and HDMI outputs and is powered via PoE for clean, single-cable installation. Up to four cameras total are supported per T-CAM installation. This product is appropriate for integrators who need to extend camera coverage beyond the cameras included in the base T-CAM Package CM70.

Product Description

The IP-CAM CM70 unit consists of the Avonic CM70 PTZ IP camera and the T-CAM software license required to register and activate it within an existing T-CAM installation. Power over Ethernet eliminates the need for a separate power supply at the camera location—a single Cat cable carries both data and power. The camera delivers 1080p resolution at 60fps with simultaneous IP, HD-SDI, and HDMI outputs for flexible video routing to switchers, recorders, or streaming encoders. Within the T-CAM system, the camera is assigned to a zone covering specific delegate positions; the T-CAM software automatically routes the active speaker view to the appropriate camera preset when a delegate activates their microphone. Wall and ceiling mounting hardware is not included with the expansion unit—refer to Televic accessories for compatible mount options.

Key Features

• Avonic CM70 PTZ Camera — 1080p/60fps, simultaneous IP, HD-SDI, and HDMI outputs for flexible integration with video distribution systems.
• T-CAM License Included — Camera activation and integration license for the T-CAM tracking system included with the unit.
• Power over Ethernet — Single Cat cable provides both data and power; simplifies installation at the camera location.
• T-CAM Expansion Unit — Adds one additional camera to an existing T-CAM Package CM70 installation; up to 4 cameras total supported.
• Automatic Speaker Tracking — Integrates with T-CAM for automatic camera switching when delegates activate microphones on the Plixus system.

Typical Applications

• Boardroom
• Conference room
• Government space
• Auditorium

Technical Specifications

Frequently Asked Questions

Does the T-CAM Package CM70 need to be installed first?
Yes. The IP-CAM CM70 expansion unit adds a camera to an existing T-CAM Package CM70 (71.98.1305) installation. The base package must be purchased and installed first.

Is a wall or ceiling mount included?
No. Mounting hardware is not included with the expansion camera unit. Order compatible Televic mounting accessories separately.

How many IP-CAM CM70 units can be added to one T-CAM system?
T-CAM supports up to four cameras total per installation. The base CM70 Package includes two cameras; up to two additional IP-CAM CM70 units can be added.
