Telestream WFM2300 Multi-Format Multi-Standard Portable Waveform Monitor
Telestream WFM2300 Multi-Format Multi-Standard Portable Waveform Monitor is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Telestream WFM2300 Multi-Format Multi-Standard Portable Waveform Mo...
Product Overview

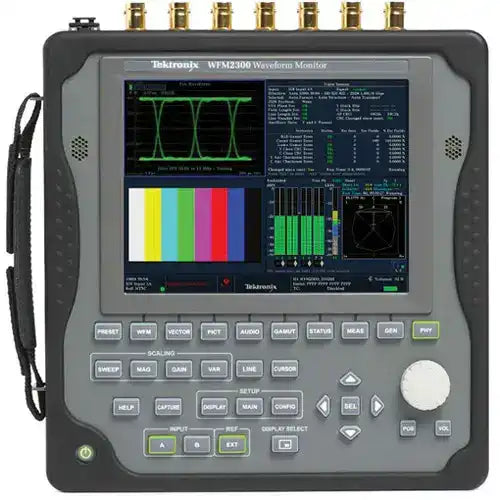

The Telestream WFM2300 is a portable waveform monitor built for broadcast engineers and AV technicians who need to verify SD/HD/3G-SDI signals during installation and maintenance work. This multi-format waveform monitor combines waveform, vector, picture, and audio displays in a battery-capable handheld chassis, so SDI signal monitoring is no longer tied to a rack-mount bay. Standard support for HD-SDI (SMPTE 292), SD-SDI (ITU-R BT.601), and Dual Link (SMPTE 372) with automatic format detection makes it a single-instrument solution for mixed-format facilities. With Option 3G it adds SDI eye and jitter measurement for physical-layer troubleshooting in the field.
Product Description
The WFM2300 brings full broadcast waveform and vector monitoring into a portable package that runs on internal battery or DC input, supported by a high-brightness, low-power LED-backlit display. It is a "See and Solve" instrument designed to simplify calibration, error detection, and content correction, presenting SD/HD/3G-SDI signals in RGB, YPbPr, YRGB, or pseudo-composite with Parade or Overlay component views. Sharp CRT-like trace quality, patented Gamut displays, a picture thumbnail, display freeze, and a 10,000-event error log give engineers the tools to verify content compliance at a glance. For physical-layer work, the WFM2300 reports jitter levels above 1 UI and offers selectable jitter filters from 10 Hz to 100 kHz, with automated eye amplitude, rise/fall time, and overshoot measurements that speed up SDI eye and jitter measurement in the field.
The SDI Status display summarizes signal strength, cable loss, and estimated cable length, while the bidirectional Stress Loop connectors let technicians add simulated cable length and an interfering signal for cable-margin testing before a permanent run is committed. Audio monitoring covers up to 16 channels of embedded or AES/EBU audio with multiple bar layouts, surround-sound display, and a flexible Lissajous view; an internal speaker and headphone port allow AES/EBU audio monitoring without extra equipment. Option DBE adds Dolby E stream decoding and metadata display for facilities that handle encoded audio. Because it consolidates SD/HD/3G-SDI video, digital audio, reference sync, and optional optical SDI (Option SFP) into one device, the WFM2300 is well suited to broadcast studios, remote production, post-production suites, and SDI-based AV infrastructure in auditoriums, houses of worship, and government facilities. The familiar interface uses backlit buttons, on-screen help, and 32 user-configurable presets that transfer between like units over USB, and an Ethernet port simplifies download of screenshots and the error log for documentation and service-level reporting. For complete production workflows, pair it with Telestream's live production and streaming hardware in the Telestream collection at Creation Networks.
Key Features
- Multi-format SDI support — Monitors SD-SDI (ITU-R BT.601), HD-SDI (SMPTE 292), and Dual Link (SMPTE 372) with automatic format detection, and adds 3G-SDI Level A/B with Option 3G.
- Portable, battery-capable design — Runs on internal battery or DC input with an LED-backlit display, so signal verification can happen anywhere on site.
- Eye and jitter measurement — Performs SDI physical-layer measurement on input A, reporting jitter above 1 UI with selectable filters from 10 Hz to 100 kHz (Option 3G required for 3G-SDI).
- Cable-margin testing — Stress Loop connectors add simulated cable and an interfering signal so technicians can validate a signal path before deployment.
- 16-channel audio monitoring — Supports embedded and AES/EBU audio with bar, surround, and Lissajous displays, plus an internal speaker and headphone output.
- Patented Gamut and picture displays — Detects RGB and composite gamut errors and shows full-color picture with selectable Safe Action and Safe Title graticules.
- 10,000-event error log — Records EDH/CRC and gamut errors with date, time, and time code for unattended monitoring and compliance documentation.
- 32 transferable presets — Stores commonly used configurations that move between identical units via USB, with screenshot and log download over Ethernet.
Typical Applications
- Broadcast studio — Routine calibration, QC, and signal verification of SD/HD/3G-SDI feeds.
- Auditorium — Commissioning and maintenance of SDI infrastructure in large live-event venues.
- House of worship — Field troubleshooting of multi-camera SDI production and streaming systems.
- Government space — Installation and maintenance of SDI signal chains in command, briefing, and broadcast facilities.
Technical Specifications
| Specification | Detail |
|---|---|
| SDI Input (Input A) | SDI with auto-detection of 3G, Dual Link, HD, and SD (Option 3G required for 3G); BNC, internally terminated 75 Ω; level 800 mVp-p ±10%. Equalization: 270 Mb/s up to 1033 ft (315 m), 1.5 Gb/s up to 558 ft (170 m), 3 Gb/s up to 377 ft (115 m) of 1694A cable. Return loss >15 dB (1 MHz–1.5 GHz), >10 dB (1.5–3 GHz). |
| Multi Input | SDI (auto-detect 3G/Dual Link/HD/SD), AES/EBU, and Linear Time Code. BNC auto-termination (SDI/AES 75 Ω, LTC >1 kΩ). AES/EBU: 48 kS/s, AES 3-ID, ANSI/SMPTE 276M, 0.5–2 Vp-p. LTC per SMPTE 12M-1, 0.2–5 Vp-p. |
| Stress Loop Through | 2x BNC passive loop through, 75 Ω; simulated cable 66 ft (20 m) Belden 1694A; variable-amplitude interfering signal (SMPTE 292) for cable-margin testing. |
| SDI Output | Switched output (active input or test signal); BNC, 75 Ω; 0.9–1.1 Vp-p into 75 Ω. |
| AES Output | 48 kS/s, AES 3-ID, ANSI/SMPTE 276M; BNC, 75 Ω; 0.9–1.1 Vp-p into 75 Ω. |
| External Reference | NTSC, PAL, and tri-level sync; BNC 75 Ω internally terminated; return loss >40 dB to 6 MHz, >35 dB to 30 MHz; lock range ±50 ppm. |
| Waveform Vertical | Accuracy 1x: ±0.5% of 700 mV; 5x: ±0.2%. Gain 1x, 5x, variable 0.25x to >7.5x. SD response: Y ±0.5% to 5.75 MHz, Pb/Pr to 2.75 MHz; HD: Y to 30 MHz, Pb/Pr to 15 MHz; 3G: Y to 60 MHz, Pb/Pr to 30 MHz. |
| Waveform Horizontal | Sweep timing accuracy ±0.5%; sweep linearity ±0.2%. |
| Audio | Level meter resolution 0.056 dB steps (30 dB scale) / 0.20 dB steps (70 dB scale); ballistics True peak, PPM type 1/2, BBC PPM; accuracy ±0.1 dB (20 Hz–20 kHz, 0 to -40 dBFS). |
| SDI Generator | Test signals 100%/75% Color Bar, Pathological. Output formats 525i, 625i, 720p (50/59.94/60 Hz), 1080i, 1080p (23.98–60 Hz), 1080sF; genlock lock range ±30 ppm. |
| Power | Adapter accepts 100–240 VAC ±10%, 50/60 Hz; 19 VDC nominal output. Operating 10.75–20 VDC; consumption 24 W typical, 35 W max; reverse/over-voltage protected to ±30 VDC. |
| Environmental | Operating 32–104°F (0–40°C), 20–80% RH non-condensing; storage -4–140°F (-20–60°C). Operating altitude up to 10,000 ft (3,000 m); non-operating up to 40,000 ft (12,000 m). |
| Dimensions & Weight | 8.5 x 8.2 x 1.4" (22 x 21 x 4 cm) including boot; 4 lb (1.8 kg) with battery, 3 lb (1.4 kg) without. |
Specifications sourced from the Telestream WFM2300 datasheet (telestream.net).
Frequently Asked Questions
Does the WFM2300 support 3G-SDI out of the box?
Standard configuration supports SD-SDI, HD-SDI, and Dual Link with automatic format detection. 3G-SDI (SMPTE 425/424 Level A and Level B) and the associated eye and jitter measurements require Option 3G.
Can it monitor audio without additional equipment?
Yes. It monitors up to 16 channels of embedded or AES/EBU audio with bar, surround, and Lissajous displays, and includes an internal speaker and headphone port. Option DBE adds Dolby E decoding and metadata display.
How does it integrate into an existing SDI signal chain?

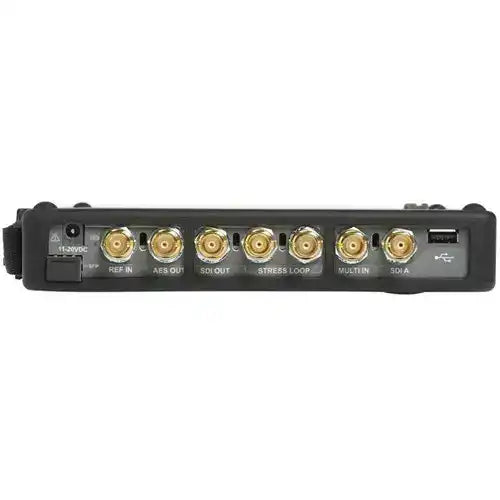

The unit accepts SDI on Input A and the Multi Input (which also handles AES/EBU and LTC), provides switched SDI and AES test outputs, and accepts an external NTSC/PAL or tri-level sync reference. The Stress Loop connectors allow inline cable-margin testing within the same path.
Is it suitable for field installation and maintenance work?
Yes. The portable chassis runs on internal battery or DC input, and the SDI Status display reports signal strength, cable loss, and estimated cable length to support installation and maintenance applications away from a rack.
How are errors logged for compliance documentation?
The instrument maintains a 10,000-event error log that records EDH/CRC and gamut errors with date, time of day, and time code. Logs export to USB or over Ethernet in .TXT or .HTM format.
What warranty and support options are available?
The WFM2300 is supplied with the manufacturer's standard warranty. For coverage details, calibration, and support specific to your purchase, contact the Creation Networks team through our Telestream product page.
