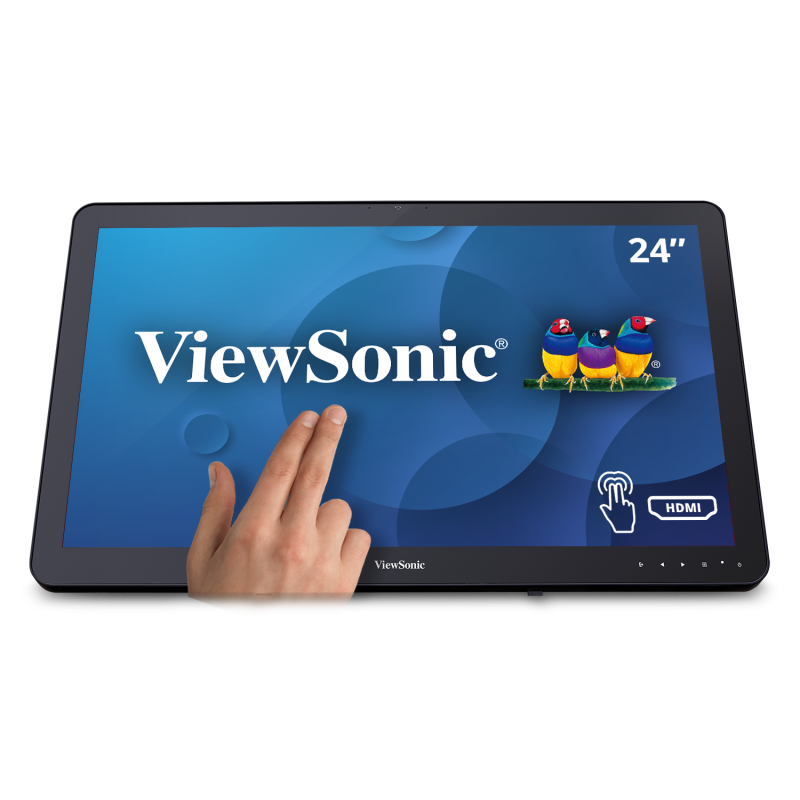

ViewSonic TD2430 – 24-Inch 10-Point IR Touch Display

Product Overview

The ViewSonic TD2430 is a 24-inch (23.6" viewable) Full HD PCAP touch monitor built for environments where the display needs to lay flat or angle steeply for interactive use. Its freestanding tablet-style design supports tilt positions from 20 degrees through 53 degrees and fully flat (90 degrees), making it practical for counter-based retail interactions, training room collaboration, and kiosk applications. The MVA panel delivers 178-degree viewing angles and a 3,000:1 static contrast ratio for consistent image quality across a range of ambient lighting conditions.

Product Description

The ViewSonic TD2430 combines a 24-inch MVA touch panel with a 7H scratch-resistant surface and 10-point projected capacitive touch technology. The fully adjustable bookstand-style base positions the screen anywhere from an upright 20-degree angle to completely flat — supporting both standard desktop use and face-up touch operation on counters or tabletops. A durable 7H surface hardness protects the touch layer from daily wear in retail, education, and public kiosk environments. The display connects via HDMI 1.4, DisplayPort, or VGA, and includes a USB hub with two USB-A ports and one USB-B uplink for peripheral connectivity. An AC/DC adapter provides external power. The TD2430 is compatible with Windows 7/8/10, Android 4.0 or later, and Linux 2.6.38 or later. ViewSonic's vTouch driver enables touch functionality on macOS. Certified to ENERGY STAR 7.0, EPEAT, and DOE standards. Backed by a three-year limited warranty covering parts, labor, and backlight.

Key Features

• 24" MVA PCAP Touch Panel — 23.6" viewable area with 178-degree horizontal and vertical viewing angles and 3,000:1 static contrast.
• Fully Adjustable Tablet Stand — Tilts from 20° to 53°, and lays completely flat (90°) for face-up interactive use on counters.
• 7H Scratch-Resistant Surface — Durable touch layer suitable for high-traffic retail, kiosk, and educational deployment.
• 10-Point PCAP Touch — Supports Windows, Android 4.0+, Linux 2.6.38+, and macOS (via vTouch driver).
• HDMI, DisplayPort, and VGA Inputs — Broad compatibility with POS systems, thin clients, media players, and legacy computers.
• USB Hub (2× USB-A, 1× USB-B) — Connects keyboards, barcode scanners, signature pads, or other peripherals directly to the display.
• 2.5W × 2 Integrated Speakers — Suitable for kiosk audio prompts and interactive content.
• VESA 100×100 Mount — Enables removal from the included stand for wall or arm mounting.
• ENERGY STAR 7.0 / EPEAT Certified — Meets commercial procurement sustainability requirements.

Typical Applications

• Retail point-of-sale touch terminals
• Kiosk and wayfinding installations
• Training room collaborative touch stations
• Conference room interactive presentation displays
• Healthcare patient intake and check-in counters

Technical Specifications

Frequently Asked Questions

Q: Can the TD2430 lay completely flat?
A: Yes. The adjustable stand supports a full 90-degree flat position, enabling face-up touch use on countertops — useful for signature capture, table-top interactive displays, or collaborative document review.

Q: What operating systems does the TD2430 support?
A: Windows 7/8/10, Android 4.0 or later, and Linux 2.6.38 or later are natively supported. macOS users can install ViewSonic's vTouch driver to enable touch and gesture controls.

Q: Is the TD2430 suitable for gloved-hand environments?
A: The PCAP touch layer requires conductive input — standard latex or nitrile gloves may not be recognized. Conductive gloves or a stylus will work. For true non-conductive glove compatibility, consider a resistive or IR touch model.

Q: What is the difference between TD2430 and TD2423D?
A: The TD2430 uses PCAP touch and an MVA panel; the TD2423D uses IR touch and is designed for gloved or stylus environments. The TD2430 also supports a fully flat position, while the TD2423D does not.

Q: Can the TD2430 be wall-mounted?
A: Yes. It supports 100×100mm VESA mounting when removed from the included tablet stand.

Q: Does the package include an HDMI cable?
A: Yes. The package includes an HDMI cable, USB 3.0 upstream cable, and audio cable.

Q: What is the panel response time?
A: 25ms typical GTG — acceptable for standard touch kiosk and POS applications, but not optimized for fast motion content.
