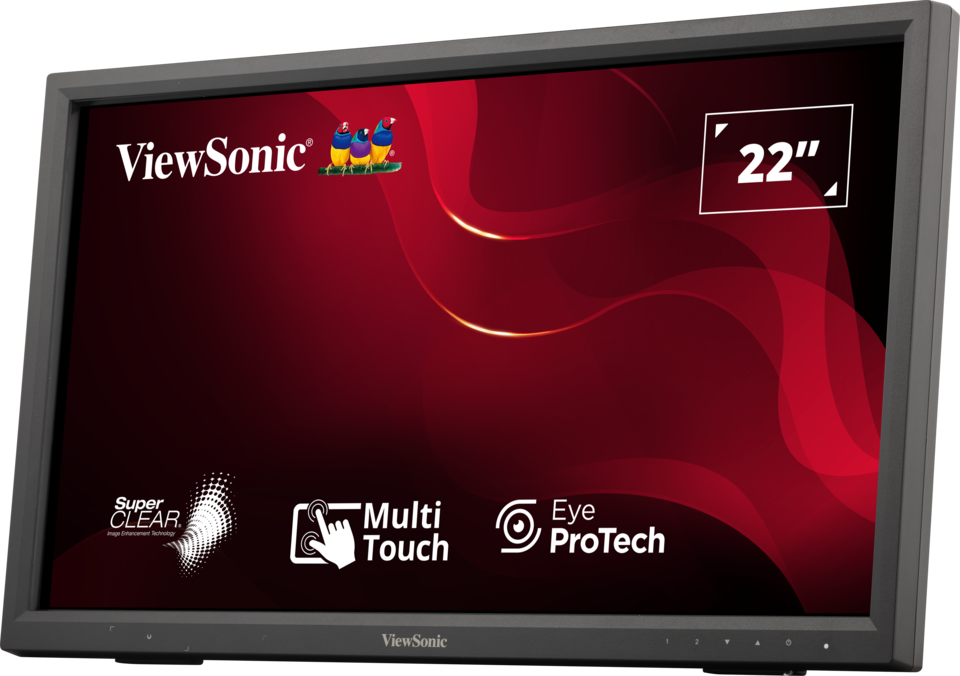

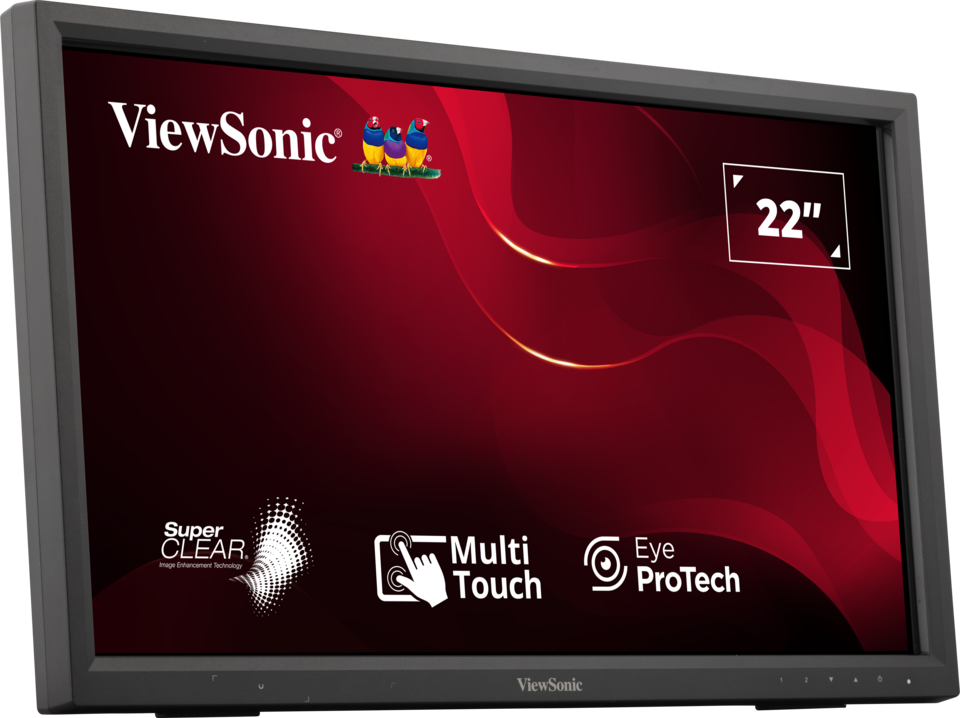

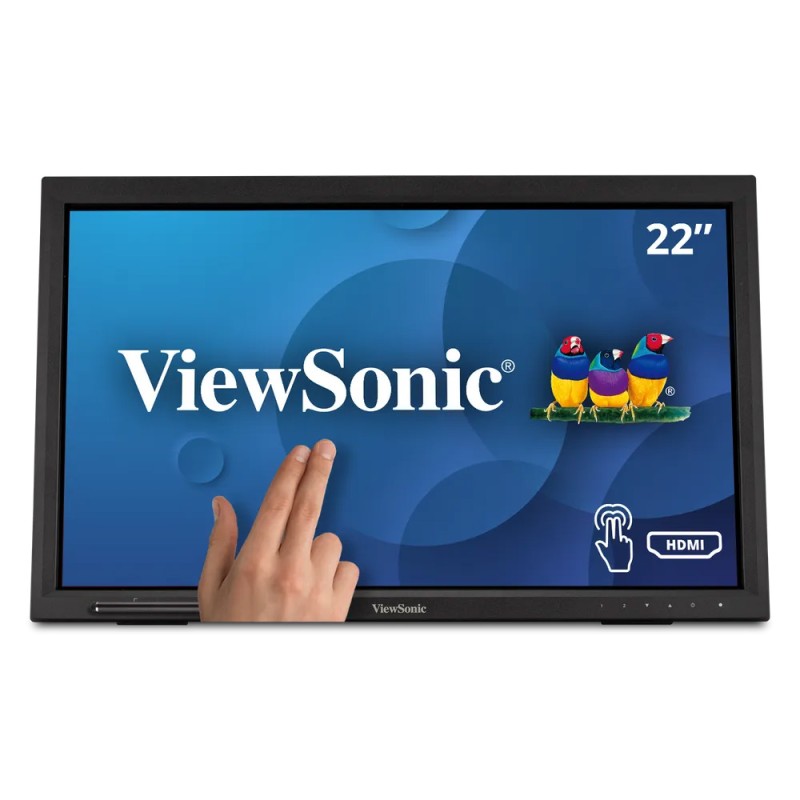

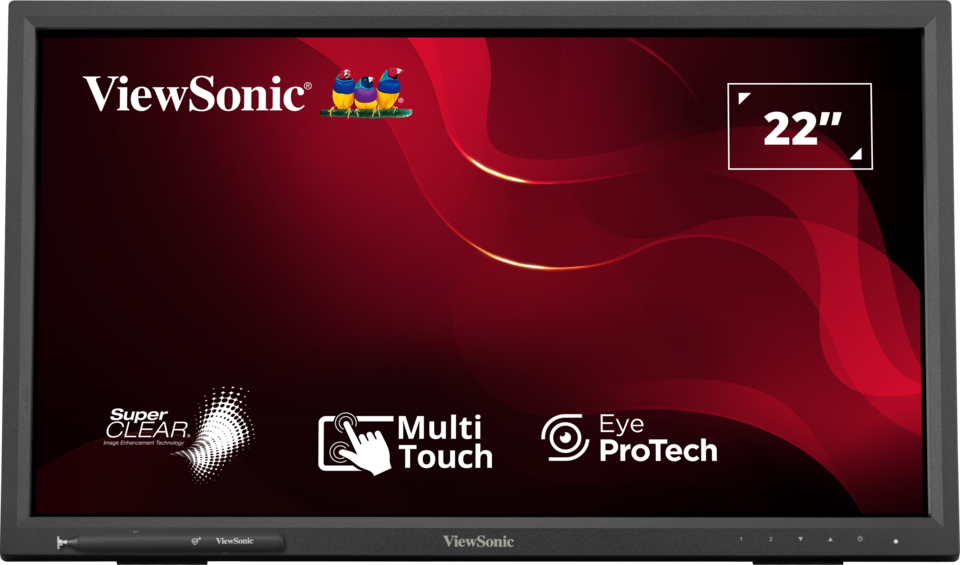

ViewSonic TD2223 – 22-Inch 10-Point IR Touch Display

Product Overview

The ViewSonic TD2223 is a 22-inch Full HD infrared touch monitor designed for public kiosk, retail POS, and high-traffic commercial environments that require natural, unrestricted touch input. IR touch technology detects any opaque object that interrupts the infrared grid — fingers, gloved hands, styluses, or a pen cap — without requiring electrical conductance from the user. The 7H anti-glare surface resists scratching in high-contact deployments, and connectivity via HDMI, DVI-D, and VGA covers the full range of commercial POS and media player hardware.

Product Description

The TD2223 combines a 22-inch TN panel running at 75Hz with 10-point infrared touch technology and a freestanding tablet-style base that tilts from 22 degrees to 38 degrees. The 75Hz refresh rate provides smooth UI rendering for POS and kiosk applications. Integrated flicker-free technology and a built-in blue light filter reduce eye strain for staff who use the display for extended cashier or receptionist shifts. ViewSonic’s ViewMode preset feature includes optimized display settings for different content types. A USB hub with 2× USB-A and 1× USB-B supports peripheral connectivity for barcode scanners, receipt printers, or customer-facing displays. The package includes a USB Type B uplink cable. VESA 100×100 compatibility enables third-party mounting. ENERGY STAR and EPEAT certified. Three-year limited warranty on parts, labor, and backlight. macOS touch support is available via ViewSonic’s vTouch driver.

Key Features

• 22" IR 10-Point Touch Monitor — Infrared touch responds to any opaque input: bare fingers, gloved hands, styluses, or any object that interrupts the IR beam.
• 75Hz Refresh Rate — Smoother display rendering than standard 60Hz touch monitors, beneficial for fluid POS UI animations.
• 7H Anti-Glare Surface — Scratch-resistant, easy to wipe clean, suitable for high-contact public kiosk environments.
• Flicker-Free and Blue Light Filter — Reduces eye fatigue for staff in extended-use cashier and reception deployments.

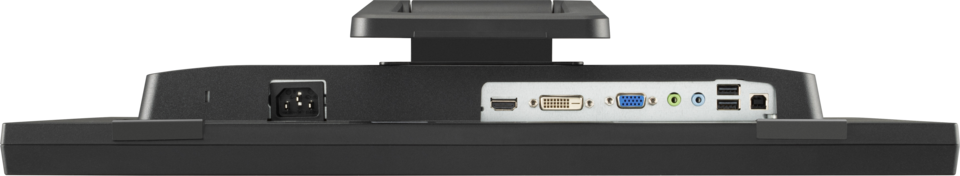

• HDMI, DVI-D, and VGA Inputs — Compatible with modern and legacy commercial POS hardware and media players.
• USB Hub (2× USB-A, 1× USB-B) — Supports barcode scanners, signature pads, and other POS peripherals directly at the display.

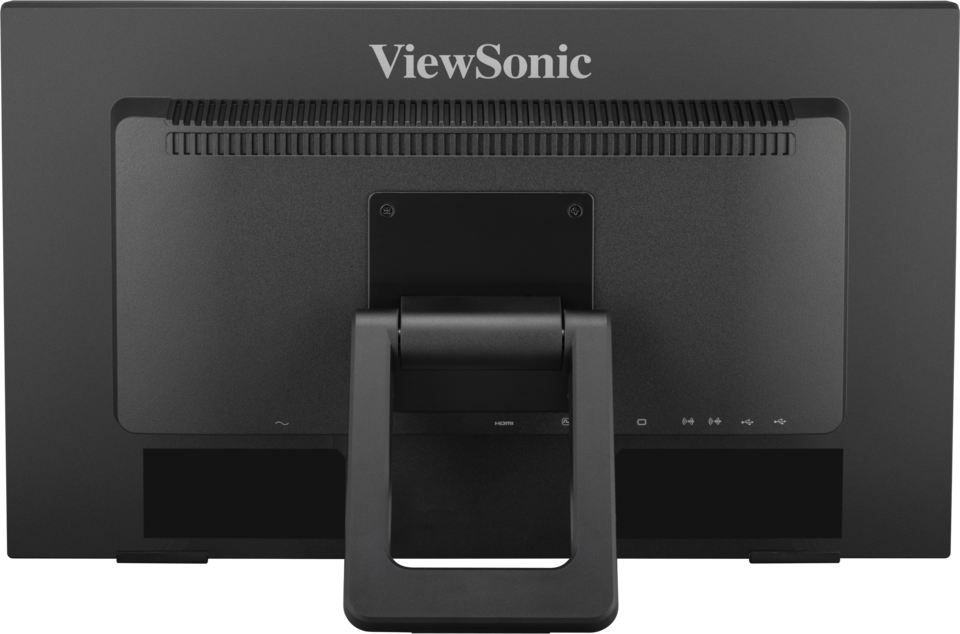

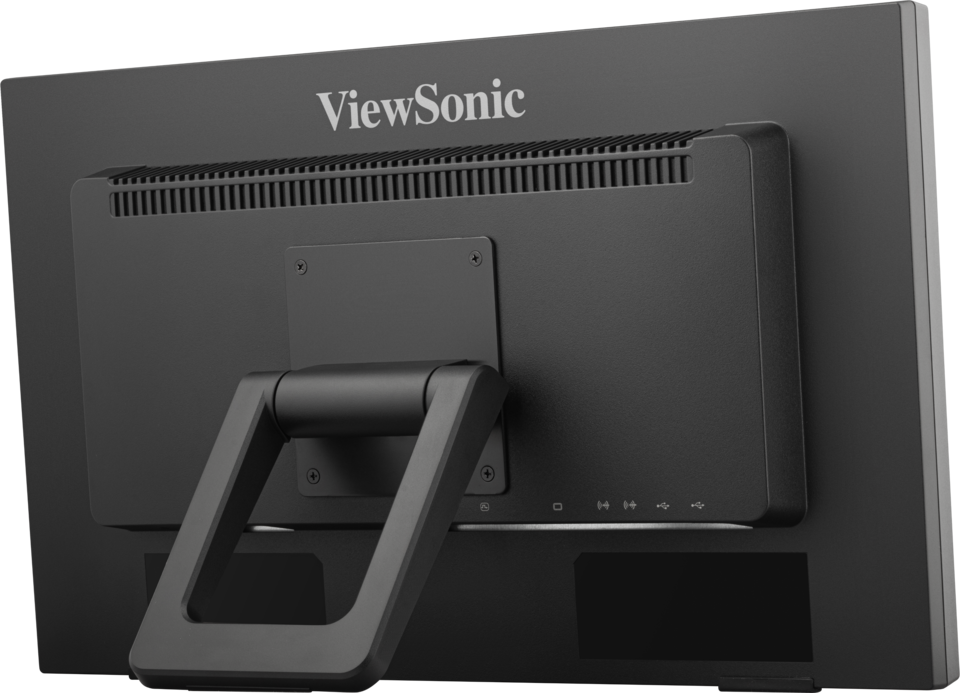

• Freestanding Tablet Stand — 22° to 38° tilt range for counter-level cashier and self-service deployments.
• VESA 100×100 Mount — Enables pole mount and wall mount configurations when stand is removed.
• ENERGY STAR / EPEAT Certified — Meets commercial procurement environmental standards.

Typical Applications

• Retail point-of-sale and cashier touch terminals
• Public kiosk and wayfinding installations
• Healthcare patient check-in and intake stations
• Food service order entry displays
• Government facility self-service kiosks

Technical Specifications

Frequently Asked Questions

Q: How does IR touch technology differ from PCAP and resistive?
A: IR touch uses emitters and receivers around the bezel to create an invisible grid. Any object that breaks the beam registers as a touch — including gloved hands, styluses, and non-conductive objects. PCAP requires conductive contact; resistive requires physical pressure. IR is well-suited for high-traffic public kiosks where a variety of input types are expected.

Q: Is the TD2223 suitable for a food service counter?
A: Yes. The IR touch layer works with food-service gloves and is not affected by minor liquid exposure on the fingers. The 7H anti-glare surface is straightforward to wipe clean with standard screen cleaning solutions.

Q: What is the difference between the TD2223 and TD2423D?
A: Both use 10-point IR touch technology. The TD2223 is 22 inches and the TD2423D is 24 inches (23.6" viewable). The TD2423D uses a glossy panel surface (Haze 8%) while the TD2223 has an anti-glare surface (7H). Choose based on screen size and glare management requirements for the installation environment.

Q: Does the TD2223 support macOS?
A: Touch functionality is enabled on macOS via ViewSonic’s vTouch driver. iOS and iPadOS are not supported.

Q: Can the TD2223 be pole-mounted for a POS counter?
A: Yes. The 100×100mm VESA pattern supports standard POS pole mounts when the display is separated from the freestanding tablet base.

Q: What is the tilt range?
A: The freestanding stand adjusts from 22° to 38°, which covers the typical range for counter-level cashier and self-service kiosk use. It does not lay flat; for fully flat deployment, consider the TD2430 or TD2230.

Q: What cables are included?
A: The package includes a power cable and USB Type B uplink cable. HDMI or VGA cables are not included and must be sourced separately.
