VS-R264 |
VS-R265 |

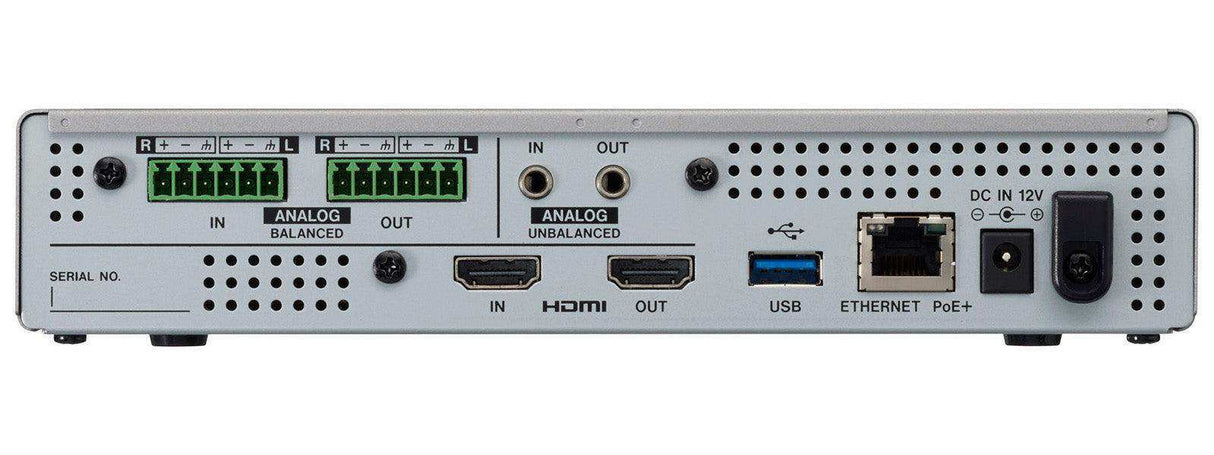

Video inputs and outputs |
|
HDMI IN |
HDMI v1.4a (Type A receptacle) |
HDMI OUT |
HDMI v2.0 (Type A receptacle) |
Input Resolutions |
|
2160p |
- |
30 / 29.97/ 25 / 24 / 23.98 fps |
1080p |
60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps |
720p |
60 / 59.94 / 50 fps |
576p |
50 fps |
480p |
60 / 59.94 fps |
Frame Rate Limiting |
on/off |
Encode Scalling Resolutions |
Passthrough / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p |
Passthrough / 3840x2160p / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p |
Encoding Format |
H.264 |
H.264 / H.265 |
Encoding bitrates |
500k to 30M bps |
Bit rate Control |
Variable, Constant |
Key frame interval |
|
Seconds |
0.25 - 16.5(default: 1) in 0.25 intervals |
Frames |
3 - 1000 |
Video streaming |
|
Supported protocols |
RTMP, RTMPS, RTSP, HLS, RTP, UDP Note) Some servers that use the RTMP protocol do not support H.265.
|
Number of simultaneous stream |
8 (3 x RTMP/RTMPS, 1 x RTSP, 1 x HLS, 2 x RTP/UDP Unicast、1 x RTP/UDP Multicast) * The streaming performance depends on resolution settings, transfer rate, and network environment.
|
Audio inputs and outputs |
|
ANALOG IN (BALANCED) |
|
Connectors |
Euroblock (balanced) 3.81 mm pitch |
Nominal input level |
+4dBu(1.23Vrms, when Ref.Level set to other than -9dBFS) +6dBu(1.55Vrms, when Ref. Level set to -9 dBFS) |
Maximum input level |
+15dBu(4.36Vrms, Ref.Level -9dBFS) +18dBu(6.16Vrms, Ref.Level -14dBFS) +20dBu(7.75Vrms, Ref.Level -16dBFS) |
Input impedance |
10 kΩ or higher |
ANALOG IN (UNBALANCED) |
|
Connector |
3.5mm (1/8") stereo mini jack |
Nominal input level |
-10dBV (0.316Vrms) |
Maximum input level |
+6dBV (2.0Vrms) |
Input impedance |
10 kΩ |
ANALOG OUT (BALANCED) |
|
Connectors |
Euroblock 3.81 mm pitch |
Nominal output level |
+4dBu(1.23Vrms, when Ref.Level set to other than -9dBFS) +6dBu(1.55Vrms, when Ref. Level set to -9 dBFS) |
Maximum output level (switchable) |
+15dBu(4.36Vrms, Ref.Level -9dBFS) +18dBu(6.16Vrms, Ref.Level -14dBFS) +20dBu(7.75Vrms, Ref.Level -16dBFS) |
Output impedance |
200Ω or lower |
ANALOG OUT (UNBALANCED) |
|
Connector |
3.5mm (1/8") stereo mini jack |
Nominal output level |
-10dBV (0.316Vrms) |
Maximum output level |
+6dBV (2.0Vrms) |
Output impedance |
200Ω |
Output Volume |
-∞, -72 to +6dB (1dB step) |
Audio Codec |
AAC, 64k to 512k bps, 32k/44.1k/48k Hz |
Video / audio recording |
|
Recording media |
USB Drive, SD/SDHC card, Internal storage |
Recording format |
MPEG2-TS、MPEG4 |
Recording bit rates |
500k to 30M bps |
Control input/output |
|
ETHERNET / PoE+ |
|
Connector |
RJ-45 |
Transmission protocol |
TCP/IP、UDP、HTTP |
Gigabit Ethernet standard |
1000BASE-T (IEEE 802.3ab) |
Cables |
Category 5e or faster STP cables |
USB |
|
Connector |
USB A-type 4-pin |
Protocol |
USB 2.0, USB 3.0 |
Other |
|
Power |
PoE Plus Class 4 TASCAM PS-P1220E AC adapter (sold separately) |
Power consumption |
12.2W |
Dimensions |
214(W) × 44.5(H) × 136.1(D)mm (including protrusions) |
Weight |
850g |
Operating temperature range |
0 to 40 °C |
Included items |
Installation brackets x2, Euroblock plugs x4, Cable band kit, USB memory(Including TASCAM DISCOVERY, reference Manual), Quick Start guide (Warranty) |
