Overview
Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-1x2HR, a desktop 2x2 USB Type-C audio interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of a mic and an instrument for home recordists and traveling content creators.
With its single Ultra-HDDA mic preamp and 1/4" line/Hi-Z input, the US-1x2HR allows you to track or overdub two different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. Use the rear-panel RCA inputs to record an unbalanced line-level signal from a DJ mixer, media player, or mixing console. The stereo RCA line outs and 1/4" headphone output enable monitoring through speakers, headphones, or both, each with its own level control. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency direct monitoring, and an empowering software bundle.
Ultra-HDDA Mic Preamp- Ultra-HDDA (High Definition Discrete Architecture) mic preamp design developed in-house and combined with a newly improved audio circuit for enhanced audio performance and transparency
- Low noise level with EIN rating of -128 dBu and signal-to-noise ratio of 109 dB
- Microphone preamp with phantom power and gain range of 58 dB supports dynamic, condenser, and ribbon microphones

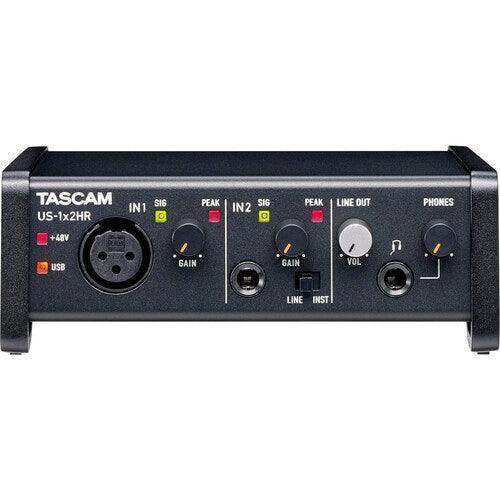

- Microphone input features a balanced XLR connector and switchable +48V phantom power for condenser microphones
- 1/4" TRS input for balanced line-level signals from professional processors and synthesizers
- 1/4" input can be switched to high impedance for direct recording of electric guitar and bass
- Record XLR and 1/4" inputs simultaneously

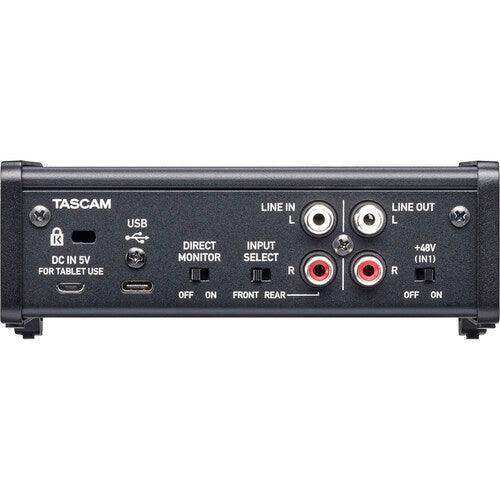

- Unbalanced stereo RCA line input on rear panel
- Dedicated switch selects front- or rear-panel inputs for recording
- Records at up to 192 kHz / 24-bit resolution
- Mic preamp and A/D converters work together to capture the clearest signal path, at 192 kHz or at lower sampling rates
- USB Type-C 2.0 computer connection (includes USB Type-C to USB Type-A cable) supplies appropriate bandwidth, even for multichannel 192 kHz recordings
- Works with ASIO, WDM, or Core Audio drivers
- USB bus-powered for mobile recording with computer
- Connects with iPad, iPhone, and other iOS devices (requires separately available 5 VDC power adapter or battery pack; Apple Camera Connection Kit required for use with Lightning-equipped devices)
- Direct monitoring path provides zero-latency monitoring of the input signal before it is sent to the computer
- Simple direct monitor on/off switch on the rear panel
- Adjustable monitor mix blend between input and computer via the software settings panel
- Unbalanced stereo RCA output suitable for connection to powered monitors
- Standard 1/4" TRS headphone output jack
- Separate controls for line and headphone output volumes
- Input monitoring can be set to stereo or mono via the software settings panel
- Solid and practical design intended to withstand long hours of hard use

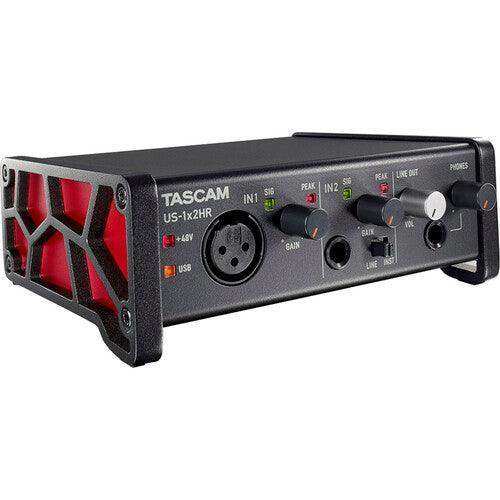

- Robust metal jacket improves durability and combines with diecast aluminum side panels to provide a sleek, eye-catching design
- Angled design is optimized for desktop viewing and operation
- LED indicators for phantom power, USB connection, signal presence, and peak
- Loopback function allows the audio from the computer to be returned to the streaming software for playback during livestreams
- Selectable mono/stereo audio mode via software settings panel
- Supports OBS (Open Broadcaster Software) for easy recording and streaming
- Increased stability in native driver
- Audio buffer size can be as low as 4 samples (Windows only) to give the best performance
- Cubase LE: Compact Mac/Windows DAW with the basic tools for recording, editing, and mixing everything from the initial musical idea to the final track
- Cubasis LE: Compact version of Steinberg’s streamlined, multitouch sequencer for the iPad
- IK Multimedia SampleTank SE: Virtual instrument with a massive 30GB sound library encompassing more than 2000 different musical instruments
- Auto-Tune Unlimited (3-Month Subscription): Comprehensive suite of industry-standard pitch correction and vocal effects
Features
- Musicians, Podcasters, and Producers
- USB Type-C / USB Type-A Connectivity
- 1 Mic Preamp, 1 Line/Hi-Z In, RCA Inputs
- 1 Headphone Out, Stereo RCA Line Out
- 24-Bit / 192 kHz AD/DA Converters
- Bus Powered / Mac, Windows, iOS
- Phantom Power, Direct Monitor
- LED Signal/Peak Indicators
- Virtual Loopback for Livestreaming
- DAWs, Virtual Instrument, Auto-Tune
Specifications
TASCAM US-1X2HR Specs
| Form Factor | Desktop |
| Display | None |
| Channels of I/O | Analog: 2 Inputs / 2 Outputs |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 1 Preamp |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | Mic Inputs: 58 dB Line/Hi-Z Inputs: 45 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
| Analog Audio I/O | 1 x XLR 3-Pin Balanced Mic Input (Front Panel) 1 x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel) 2 x Stereo RCA Coaxial Unbalanced Line Input 2 x Stereo RCA Coaxial Unbalanced Line Output 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1 x Micro-USB (Power Input) |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | None |
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA) Line Inputs: 20 Hz to 20 kHz +0/-0.3 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.3 dB (at 88.2/96 kHz, JEITA) Line Outputs: 20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA) |
| Maximum Input Level | Mic Inputs: +9 dBu 1/4" Line Inputs: +20 dBu 1/4" Hi-Z Inputs: +3 dBV RCA Line Inputs: +6 dBV |
| Maximum Output Level | Line Outputs: +6 dBV |
| Headphone Output Power | 18 mW per Channel into 32 Ohms (0.1% THD) |
| Impedance | Mic Inputs: 2.4 Kilohms 1/4" Line Inputs: 10 Kilohms 1/4" Hi-Z Inputs: ≥ 1 Megohm RCA Line Inputs: 10 Kilohms RCA Line Outputs: 100 Ohms |
| SNR | Mic Inputs: 109 dB (A-Weighted, Min Gain) Line Inputs: 105 dB (A-Weighted, Min Gain) Line Outputs: 110 dB (A-Weighted, Max Gain) |
| THD+N | Mic Inputs: 0.0013% (1 kHz, Min Gain) Line Inputs: 0.0027% (1 kHz, Min Gain) Line Outputs: 0.0015% (1 kHz) |
| Crosstalk | ≥ 95 dB (1 kHz) |
| EIN | -128 dBu (150-Ohm Source, Max Gain) |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Sync Sources | Internal |
| Memory Card Slot | None |
| OS Compatibility | macOS 10.13 macOS 11 or Later Windows 7 or Later iPadOS 13 or Later iOS 11 or Later *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software | Cubase LE |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Included Plug-Ins | Virtual Instruments: SampleTank SE |
| Supported Drivers/API & Plug-Ins | Core Audio (Mac) ASIO WDM |
| Processor Requirement | 2 GHz or Better |
| RAM Requirements | 2 GB |
| Mobile Device Compatibility | iPad iPhone |
| Required Hardware | Available USB 2.0 Port USB Cable (Included) |
| Internet Connection | Required for Registration, Software/Driver Download |
| Power Requirements | AC/DC Power Adapter (Not Included) or USB Bus Power |
| AC/DC Power Adapter | 5 VDC at 700 mA (Not Included) |
| Power Consumption | 1.8 W |
| Anti-Theft Features | Kensington Security Slot |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Dimensions | 5.7 x 4.7 x 2.2" / 14.6 x 12 x 5.5 cm (Including Controls and Protrusions) |
| Weight | 1.3 lb / 0.6 kg |
| Package Weight | 2.09 lb |
| Box Dimensions (LxWxH) | 6.9 x 6.6 x 3.8" |
