Tascam SERIES 8P DYNA – 8-Channel HDIA Mic Preamplifier with Analog Compressor

Product Overview

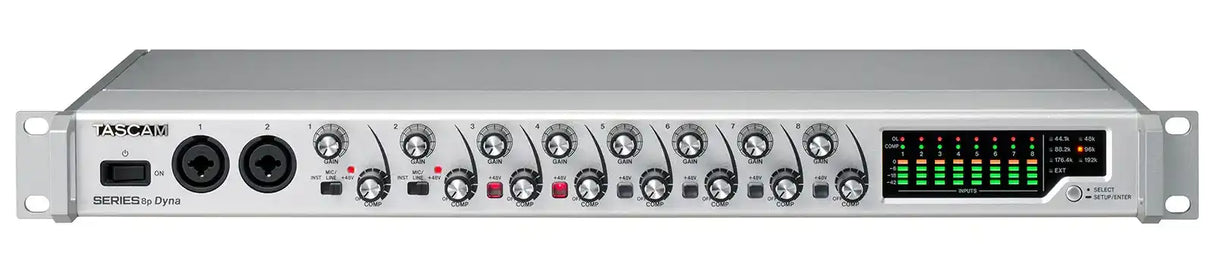

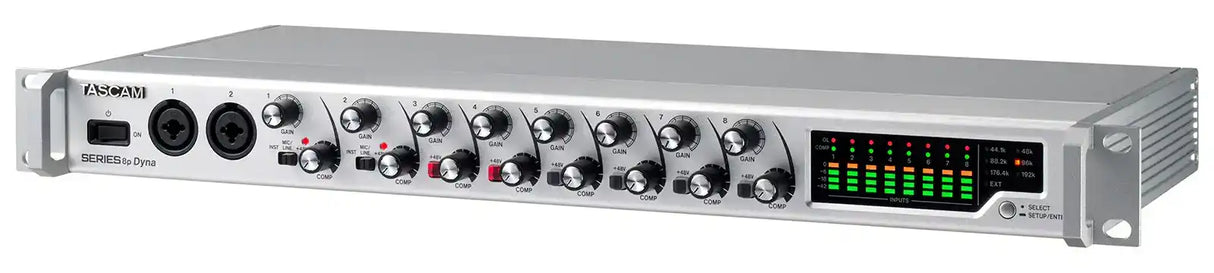

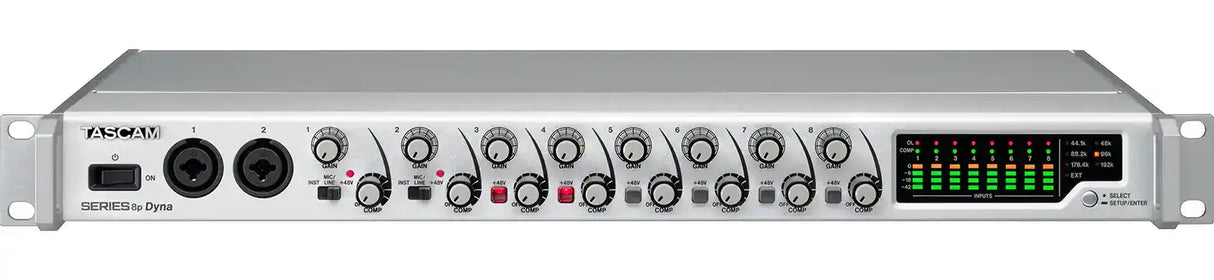

The TASCAM SERIES 8P DYNA is a 1U rack-mount 8-channel microphone preamplifier and AD converter featuring HDIA (High Definition Instrumentation Architecture) preamps with -127 dBu EIN and an independent single-knob analog compressor with true bypass on each channel. It connects to ADAT-equipped audio interfaces via dual S/MUX optical outputs, to Dante networks via D-Sub output connected to TASCAM ML-series converters, and outputs 8 channels of balanced analog on both 1/4-inch TRS and D-Sub 25-pin connectors simultaneously. Two front-panel combo inputs accommodate instruments and microphones from the front of the rack.

Product Description

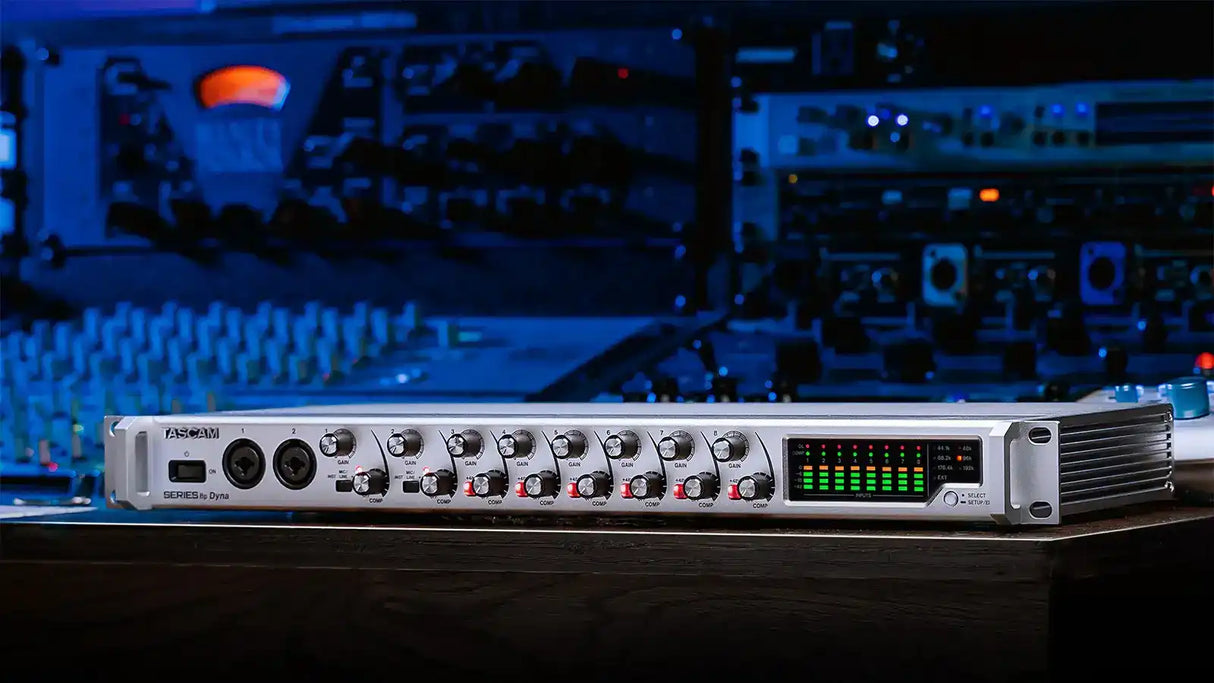

The SERIES 8P DYNA's HDIA preamps are TASCAM's highest-grade preamp design, achieving 0.0007% THD, 116 dB dynamic range, and 119 dB crosstalk isolation — the same architecture used in the Sonicview console series and SB-16D stage box. All 8 mic inputs have individually switchable +48V phantom power for condenser, dynamic, and ribbon microphones. The single-knob compressor on each channel handles hot input signals and provides gain-control smoothing without requiring detailed parameter adjustment during tracking; true bypass keeps the signal path clean when compression is not needed. Dual S/MUX optical outputs carry all 8 channels at sample rates up to 96 kHz, or 4 channels at 176.4/192 kHz, to any ADAT-compatible interface including TASCAM SERIES 102i, SERIES 208i, and Celesonic US-20x20. The D-Sub 25-pin analog output connects directly to TASCAM ML-16D or ML-32D Dante converters for a clean analog-to-Dante front end. Word clock BNC in/out/thru synchronizes the unit to a studio or installation digital clock network. A real-world deployment: David Crowder's studio uses two SERIES 8P DYNA units alongside TASCAM ML-16D and ML-32D Dante converters as the primary mic front end for tracking. Available at Creation Networks.

Key Features

• 8 HDIA Mic Preamps — -127 dBu EIN, 0.0007% THD, 116 dB dynamic range for transparent, ultra-low-noise mic preamplification.
• Per-Channel Analog Compressor with True Bypass — Single-knob compressor independently assignable to each input with true bypass for clean signal path when not in use.
• Dual S/MUX Optical Outputs — 8 channels at 96 kHz or 4 channels at 176.4/192 kHz via ADAT-compatible optical output.
• D-Sub 25-Pin Balanced Analog Outputs — 8 channels on D-Sub for direct connection to TASCAM ML-16D/ML-32D Dante converters or analog consoles.
• 1/4-Inch TRS Analog Outputs — All 8 channels also available on rear-panel 1/4-inch TRS for flexible routing.
• Individual Phantom Power per Channel — Switchable +48V phantom on each of the 8 inputs independently.
• 2 Front-Panel Combo Inputs — Front-accessible XLR/TRS combo inputs for instruments and microphones in control room environments.
• Word Clock BNC In/Out/Thru — Synchronization with studio and installation digital clock systems.

Typical Applications

• Recording studio mic preamp expansion for ADAT-equipped interfaces
• Dante network analog mic front end via ML-16D or ML-32D
• Broadcast studio microphone preamplifier
• Live sound analog preamp expansion with ADAT output
• House of worship microphone preamplifier system

Technical Specifications

Frequently Asked Questions

Is the SERIES 8P DYNA compatible with standard ADAT interfaces?

Yes. The dual S/MUX optical outputs are ADAT-compatible and connect directly to any ADAT-equipped interface, including TASCAM SERIES 102i, SERIES 208i, and third-party ADAT interfaces.

Can the SERIES 8P DYNA feed a Dante network?

Yes. Connect the D-Sub 25-pin analog output to a TASCAM ML-16D or ML-32D Analog/Dante converter to route all 8 preamp channels into a Dante audio network.

Does phantom power on one channel affect ribbon mics on adjacent channels?

No. Phantom power is independently switchable per channel, so channels connected to ribbon microphones can have phantom power off while adjacent channels use condenser mics with it on.

How does the single-knob compressor work?

The compressor on each channel has one control knob for threshold/compression amount, and a true bypass switch that completely removes the compressor from the signal path when not needed.

What warranty applies to the SERIES 8P DYNA?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
