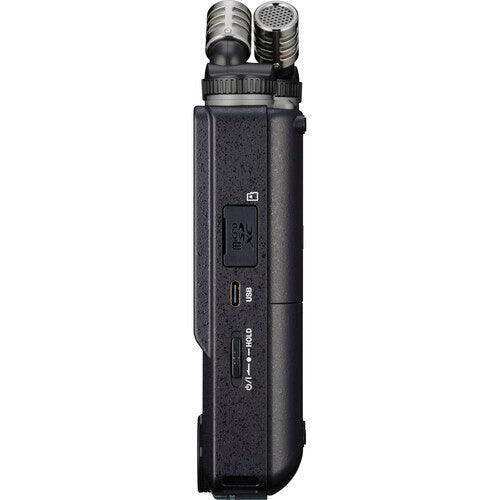

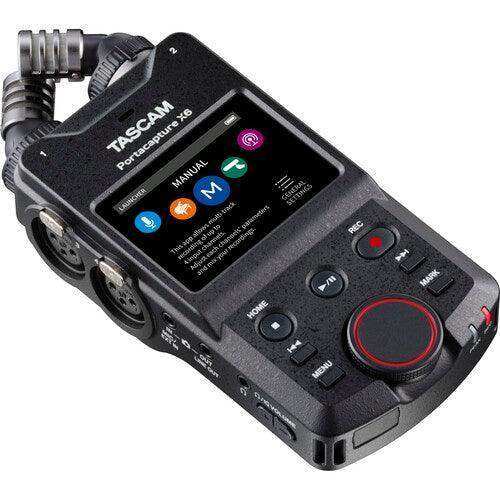

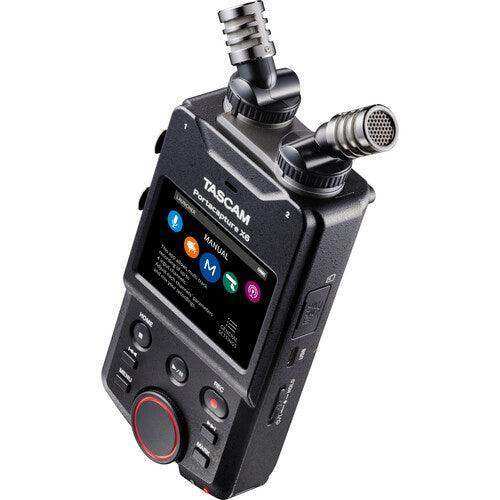

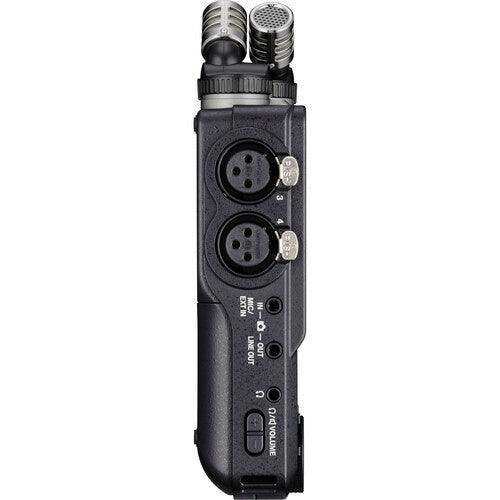

Tascam PORTACAPTURE X6 Multitrack Recorder

Powerful and portable, the Portacapture X6 from TASCAM is the streamlined version of the popular X8, redesigned and scaled back for videographers, podcasters, and content creators working on smaller productions. The compact size of the X6 makes it easy to position for numerous recording applications, while still retaining the ability to record up to six simultaneous tracks at 96 kHz / 32-bit floating point.



The stereo condenser microphone pair can be adjusted for A/B or X/Y configurations, depending on the desired stereo field width, and X6 sports plenty of connectivity, including two XLR input jacks with 24 or 48V phantom power, one 3.5mm stereo aux input with plug-in power, a stereo 3.5mm line output, and a USB-C port with 6x2 audio interface capability, just to name a few. The color touchscreen makes it easy to operate the X6 like an app, with an intuitive and colorful interface, and the recorder can be mounted on cameras and stands via its 1/4" slot for extra versatility. With up to 22 hours max battery life and the ability to take up to 512 GB microSDXC cards, the X6 will keep you creating for as long as your imagination allows, anywhere you want.

• Ultraportable Six Track Stereo Recorder
• WAV (BWF) and MP3 Recording
• Adjustable Stereo Condensers, A/B or X/Y
• 2 x XLR Mic/Line Inputs, 3.5mm Line Out
• Up to 96 kHz / 32-Bit Floating Point
• Digital USB-C Connector, 6x2 Interface
• 3.5mm Stereo Headphone Jack, Aux In
• 1/4" Mount for Cameras and Stands
• 2.4" Color Touchscreen, App-Like Control

TASCAM PORTACAPTURE X6 Specs

Portable Recorder

Form Factor	Handheld Recorder
Primary Use Applications	Audio-for-Video, Music Recording, Podcasting
Number of Tracks	6 (3 Inputs + Stereo Mix)
Number of Input Channels	4 (4 x Mono, 1 x Stereo)
Maximum Sampling Rate	96 kHz / 32-Bit (PCM)
Microphone	Built-In Condenser Stereo Pair, A/B, X/Y Configurations
Number of Microphone Preamps	2 Preamps
Built-In Speaker	Yes, 0.4 W Mono
Display	2.4" / 6.1 cm Color LCD Touchscreen
Memory Card Support	microSD, microSDHC, microSDXC (64 MB to 512 GB)
Internal Storage	None
Special Features	Remote Control Capable (Remote Available Separately)

Recording

Audio File Formats	BWF, MP3, WAV
Sample Rates	WAV: 96 kHz (Record/Playback) MP3: 48 kHz (Record/Playback)
Bit Depth	Up to 32-Bit (Floating Point)
Bit Rates	128 to 320 kb/s (MP3)
Signal Processing & FX	Compressor, EQ, Limiter, Low-Cut Filter, Reverb
Timecode Support	Yes
Recording Time	MP3 320 kb/s: 888 Hrs (Stereo) WAV 96 MHz/32-Bit: 46 Hrs (Stereo)
Included Software	None

Connectivity

Analog I/O	2 x XLR 3-Pin Female Balanced/Unbalanced Line/Mic Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8" / 3.5 mm TRS Female Headphone Output
Digital I/O	None
Phantom Power	+24 / 48 V, Selectable On/Off
Plug-In Power	Yes
System Connection	1 x USB-C (Control, I/O)
Audio Interface Capability	Multi-Track
Mobile App Compatible	Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Performance

Frequency Response	Mic/Line Inputs, WAV: 20 Hz to 20 kHz ±0.3 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz ±0.4 dB (at 96 kHz, JEITA)
Max Input Level	Mic Inputs: +2 dBu Line Inputs: +24 dBu 1/8" / 3.5 mm Line Inputs: 0 dBV
Max Output Level	Line Outputs: +6 dBV
Headphone Output Power	45 mW per Channel into 32 Ohms
Dynamic Range	Mic/Line Inputs: 112 dB
Impedance	Mic/Line Inputs: 2.2 Kilohms (Mic Level) 9 Kilohms (Line Level) Line Inputs: 10 Kilohms (Plug-In Power Off) 1.8 Kilohms (Plug-In Power On) Line Outputs: 210 Ohms
THD+N	Mic Inputs: 0.006% Line Inputs: 0.008%
EIN	-125 dBu

Power

Power Options	Battery, USB Bus Power, AC/DC Power Adapter
Battery Type	2 x AA (Included)
Approximate Battery Life	WAV 44.1 kHz/24-Bit: 13.5 Hours (AA Alkaline, Phantom Off, Recording, Stamina Mode, Built-In Mic) 5.5 Hours (AA Alkaline, All Channels, Phantom On, Recording, Built-In Mic) 11 Hours (AA NiMH, Phantom Off, Recording, Stamina Mode, Built-In Mic) 5.5 Hours (AA NiMH, All Channels, Phantom On, Recording, Built-In Mic) 22 Hours (AA Lithium-Ion, Phantom Off, Recording, Stamina Mode, Built-In Mic) 11.5 Hours (AA Lithium-Ion, All Channels, Phantom On, Recording, Built-In Mic)
AC/DC Power Adapter	VDC Not Included

Physical

Included Accessories	Batteries
Mounting Options	1/4"-20 Female (Bottom)
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	3 x 6.9 x 1.5" / 7.5 x 17.4 x 3.7 cm
Weight	12.9 oz / 365 g (with Batteries)

Packaging Info

Package Weight	1.195 lb
Box Dimensions (LxWxH)	8.6 x 5.2 x 2.7"
