Tascam MZ-372 Industrial-Grade Zone Mixer

Availability: Call for Availability
Availability: Direct Ship
Tascam SKU: MZ-372
No reviews
Price:
$559.00 $749.00

Description

Designed for permanent installation, the TASCAM MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximium flexibility, source content can include music, spoken word (microphone), turntable, and more – all easily controlled via familiar sliders and assignment controls.

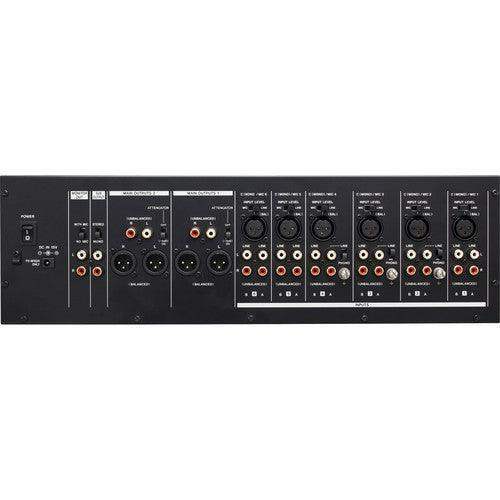

The MZ-372 allows up to 19 audio sources to be mixed, muted, and routed to two redundant outputs. The rear panel offers six input channels, each with two sets of RCAs for a total of 12 RCA stereo pairs for connecting a variety of equipment. Channels 2 and 3 also offer a switchable phono preamp for connecting turntables. Additionally, each of the six channel inputs offers a dedicated XLR input that is switchable between mic and line. The two outputs offer a pair of balanced XLR and a pair of unbalanced RCA connectors, while the monitor output and sub output each offer a stereo pair of RCAs.

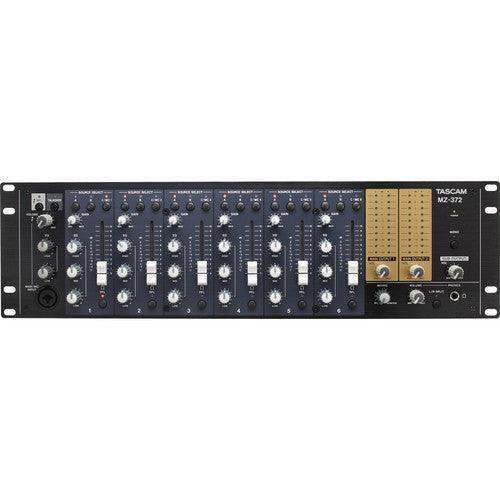

The front panel features six volume sliders for each input channel. Each channel also offers A/B/C source select and is equipped with a dedicated gain trim and a 3-band EQ. The two main outputs feature independent volume knobs. A single combo XLR-1/4" microphone input features a volume control, two band EQ, and a "Talkover" function for music ducking when using a microphone. The TASCAM MZ-372 ships with a power supply

  • Maximum flexibility for audio routing, input selection, and multiple redundant output flow
  • Well suited for integrator, musical instrument, and residential applications
  • Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input “sets”
  • Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
  • Two redundant output channels, each with stereo XLR balanced and unbalanced RCA-type connectors and separate volume controls
  • Separate stereo booth, recording, and headphone outputs, each with independent control
  • One additional mic-compatible XLR input on the front panel with “Talkover” function automatically lowering source audio
  • Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
  • Compact 3 RU rackmount design

TASCAM MZ-372 Specs

 General
Compatibility Not Specified by Manufacturer
Inputs / Outputs
Audio I/O 6 x XLR 3-Pin Mic Input
1 x Combo XLR-1/4" 3-Pin Mic Input
9 x 2RCA TS Line Input
3 x 2RCA TS Line Input (Switchable to Phono)
Power
Power Source AC Adapter with Power Brick (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 15 VDC
Power Consumption 35 W
Operating Current 2.4 A
Physical
Color Black
Dimensions 19 x 5.2 x 3.7" / 482 x 132 x 93.2 mm
Weight 7.1 lb / 3.2 kg
Packaging Info
Package Weight 8.25 lb
Box Dimensions (LxWxH) 20.4 x 8.5 x 5.7"
