Tascam MZ-223 – 5-Channel 3-Zone Rackmount Installation Mixer

Product Overview

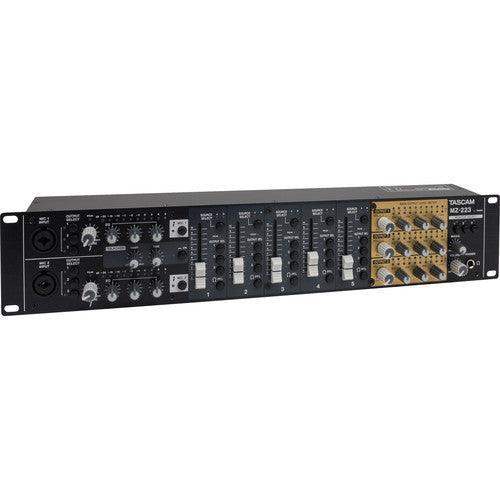

The TASCAM MZ-223 is a 2U rack-mount 5-channel multi-zone installation mixer designed for hotels, restaurants, meeting rooms, schools, and commercial spaces requiring independent audio routing from multiple sources to three destination zones. It accepts five audio channels via RCA stereo inputs, adds two front-panel XLR mic inputs with automatic talkover ducking, and routes any combination to three independent zone outputs with balanced XLR and unbalanced RCA connectors per zone for flexible loudspeaker system integration.

Product Description

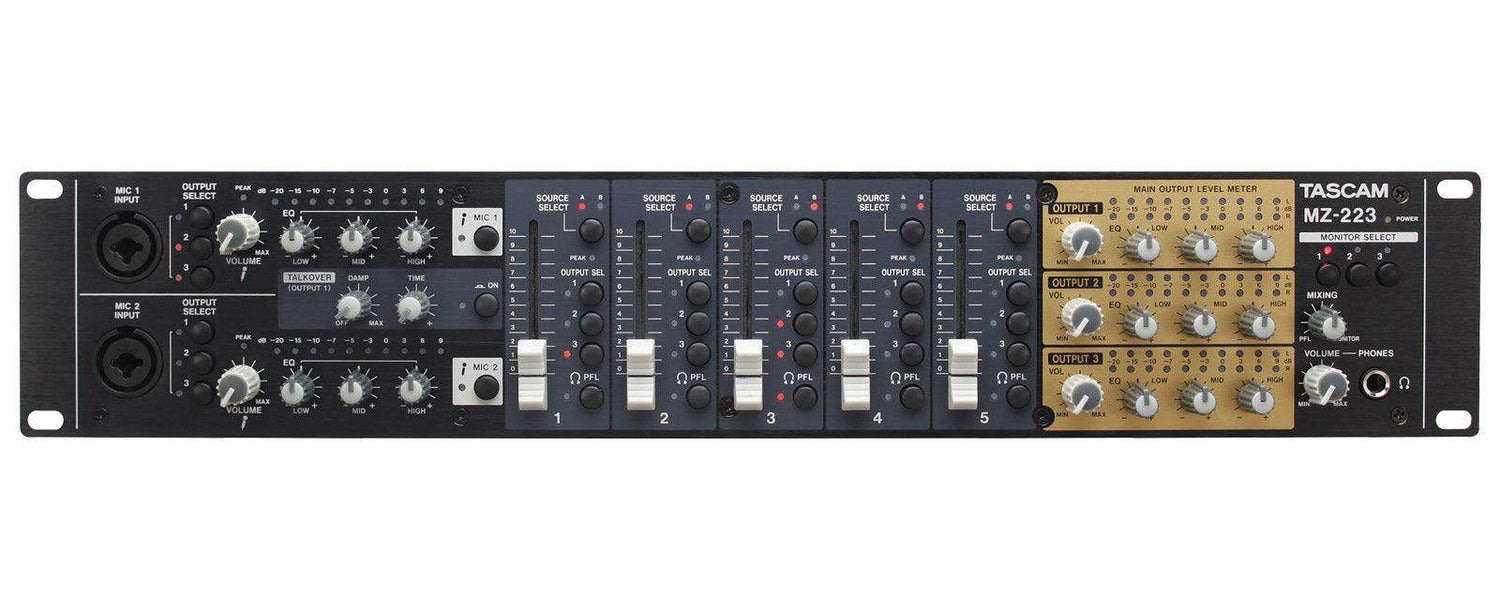

The MZ-223 allows operators to simultaneously route different audio content to up to three independent zones using front-panel volume sliders, source assignment buttons, and mute controls. Each of the five input channels accepts two sets of unbalanced RCA stereo pairs, accommodating CD players, media players, streaming devices, and other line-level sources. The talkover function automatically reduces background music level when a front-panel XLR mic input is activated, maintaining intelligibility for announcements and paging without manual fader moves. Three independent zone outputs each feature both balanced XLR and unbalanced RCA connectors, accommodating professional amplifiers requiring balanced input as well as consumer-grade amplifiers using RCA. A dedicated master recording output sends a stereo mix to an external recorder for event capture. The MZ-223 is available at Creation Networks alongside the MZ-123BT for simpler setups and the MZ-372 for larger installations.

Key Features

• 5 Input Channels — Each channel accepts two stereo RCA pairs for up to 10 stereo sources total.
• 3 Independent Zone Outputs — Routes different audio content to up to three zones with per-zone volume control.

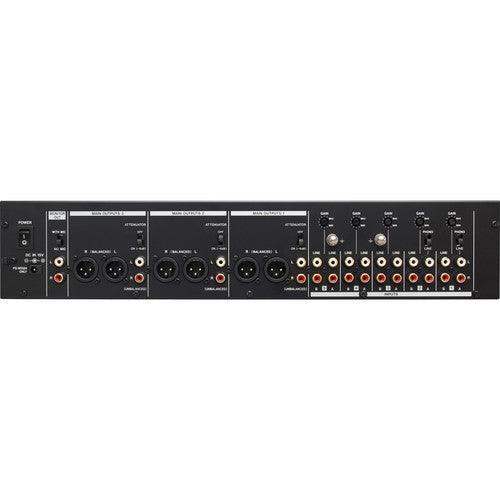

• Balanced XLR + Unbalanced RCA Outputs — Per-zone output on both balanced XLR and unbalanced RCA for professional and consumer amplifier compatibility.
• Talkover Ducking — Automatic music attenuation on microphone activation for clear announcement delivery.
• 2 Front-Panel Mic Inputs — XLR mic inputs with talkover for announcements and paging.
• Master Recording Output — Dedicated stereo output for external recorder connection for event capture.
• 2U Rack-Mount — Standard 19-inch rack format for equipment rack installation.

Typical Applications

• Hotel multi-zone background music distribution
• Restaurant and banquet room audio zoning
• Meeting room and classroom audio routing
• Retail store multi-zone music and announcement system
• Commercial meeting space background music

Technical Specifications

Frequently Asked Questions

How many audio sources can the MZ-223 accept simultaneously?

The MZ-223 has 5 input channels, each with two stereo RCA pairs, for up to 10 stereo sources. Only one RCA pair per channel is active at a time via source selection.

Can each zone receive different audio content?

Yes. Each of the three zone outputs has independent source assignment and volume control, so different content can be routed to each zone simultaneously.

Does the MZ-223 work with both professional and consumer amplifiers?

Yes. Each zone output provides both balanced XLR and unbalanced RCA connectors, compatible with professional amplifiers requiring balanced input and consumer-grade amplifiers using RCA.

How does the talkover function work?

When a mic input is activated, the MZ-223 automatically reduces background music level across the active zones, allowing the microphone to be heard clearly without manual operator adjustment.

What warranty applies to the MZ-223?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
