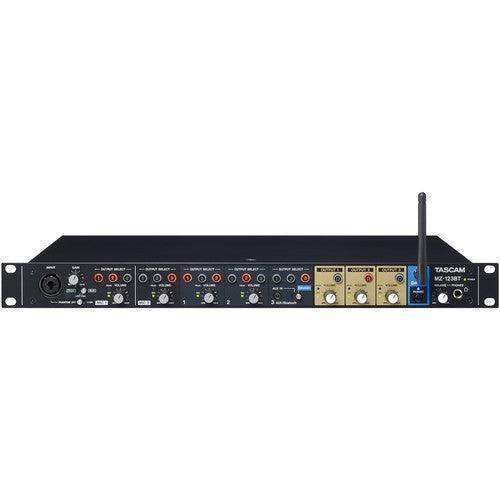

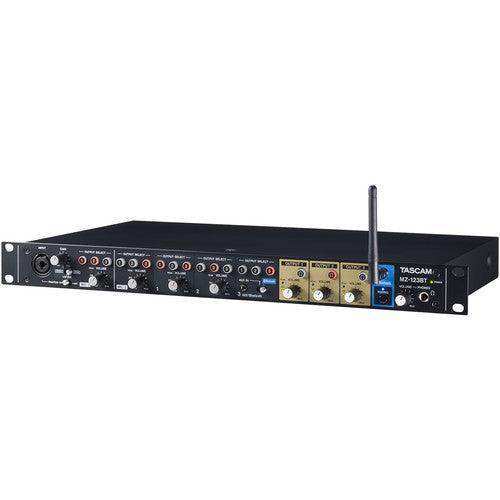

Tascam MZ-123BT Multi-Zone Audio Mixer with Bluetooth

Save 25%
Tascam SKU: MZ-123BT
No reviews

Price:
Sale price$599.00 Regular price$799.00

Description

The MZ-123BT Multi-Zone Audio Mixer with Bluetooth from TASCAM is a compact 1 RU multichannel, multi-zone professional installation mixer designed for versatile routing, mixing, and distribution. It can be used for up to three zones of music and announcements in commercial applications such as retail venues, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities.

The TASCAM MZ-123BT offers a simple, intuitive layout for ease of operation. The Bluetooth-enabled device comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging. This mixer is built with a volume control for each input and zone routing buttons. In addition, it includes a power cord, eight Euroblock plugs, a cable band kit, a rackmount screw kit, and a Bluetooth antenna.

Discrete Zone Audio Control and Routing Three discrete zone outputs with volume control allow routing of background music to desired areas or rooms in restaurants, hotels, retail stores, or other commercial environments. Three Outputs with Euroblock Connectors Three pairs of stereo outputs with Euroblock connectors for fixed installations are provided. They are accessible from the back panel and a mono/stereo switch is provided for each output. Three Input Channels Stereo line inputs 1 and 2 (RCA, unbalanced) allow connection of AV equipment such as solid-state players or similar playback devices. Channel 3 AUX/Bluetooth input is for additional audio sources via Bluetooth or 3.5mm mini-jack plug. Each input is equipped with a volume control knob as well as zone routing buttons for audio distribution.
  • For Commercial Retail Applications
  • 3-Zone Music Distribution
  • Mono or Stereo Operation
  • 2 x Microphone and 2 x Line Inputs
  • Bluetooth and AUX 3.5mm Inputs
  • Independent Volume Controls
  • 3-Band EQ, HP Filter, and Phantom Power
  • 1/4" Headphone Jack

TASCAM MZ123BT Specs

Audio Input
Mic Input Balanced Combo XLR-1/4" / 6.3mm Jack
Rated Input Level: -26 dBu (0.039 Vrms, When Front High), -2 dBu (0.616 Vrms, When Front Low)
Maximum Input Level -10 dBu (0.245 Vrms, When Front High), +14 dBu (3.884 Vrms, When Front Low)
Minimum Input Level -65 dBu (0.0004 Vrms, When Front High), -41 dBu (0.007 Vrms, When Front Low)
Gain Adjustment Range 39 dB
Input Impedance 2.4 Kilohms
Mic In 1-2 Balanced Rear
Connectors Euroblock (Balanced 3.81 mm Pitch)
Rated Input Level: 26 dBu (0.039 Vrms, When PAD Switch Off), -2 dBu (0.616 Vrms, When PAD Switch On)
Maximum Input Level -10 dBu (0.245 Vrms, When PAD Switch Off), +14 dBu (3.884 Vrms, When PAD Switch On)
Minimum Input Level -65 dBu (0.0004 Vrms, When PAD Switch Off), -41 dBu (0.007 Vrms, When PAD Switch On)
Gain Adjustment Range 39 dB
Input Impedance 2.4 Kilohms
Line Inputs 1-2 (Unbalanced) Connectors (Rear)
Connectors RCA
Nominal Input Level -10 dBV (0.316 Vrms)
Maximum Input Level +6 dBV (2.0 Vrms)
Gain Adjustment Range -16 dB to +16 dB
Input Impedance 10 Kilohms or Higher
Aux Inputs (Unbalanced) Jack (Front)
Connectors (Front Panel) 1/8" / 3.5mm Stereo Mini-Jack
Nominal Input Level -20 dBV (0.1 Vrms)
Maximum Input Level -4 dBV (0.63 Vrms)
Input Impedance 10 Kilohms or Higher
Stereo Audio Outputs
Connector Euroblock (Balanced) 3.81 mm Pitch
Output Level Rated: +4 dBu (1.228 Vrms, When Volume Knob at 0 dB)
Maximum Output Level +24 dBu (12.282 Vrms)
Output Impedance 200 Ohms
Headphones Output 1/4" / 6.3 mm Standard Stereo Jack
Maximum Output: 80 mW + 80 mW or Higher (THD+N 0.1% or Less, into 32 Ohms Load)
Bluetooth
Version 4.2
Output Class 2 (About 32.8' / 10 m Unobstructed Transmission Distance) The Transmission Distance Is Only an Estimate and Might Vary Depending on the Surrounding Environment and Radio Wave Conditions.
Supported Profiles A2DP
A2DP Codecs: SBC, AAC, Qualcomm aptX audio
A2DP Content Protection: SCMS-T
General
Power 100 to 240 VAC, 50/60 Hz
Power Consumption 25 W
Operating Temperature Range 32 to 104°F / 0 to 40°C
Dimensions 19.02 x 1.83 x 10.82" / 48.30 x 4.65 x 27.48 cm
Weight 6.6 lb / 3 kg
Packaging Info
Package Weight 10.28 lb
Box Dimensions (LxWxH) 21.4 x 14.2 x 5.7"
