Tascam MP-800U – SD/USB Player with FM Tuner, USB DAC & Optional Bluetooth

Product Overview

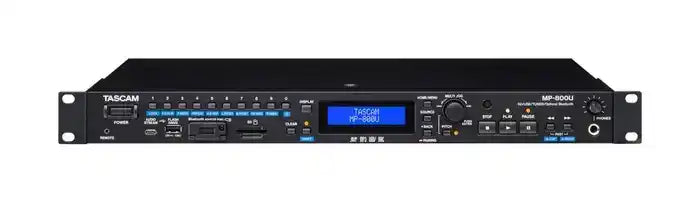

The TASCAM MP-800U is a 1U rack-mount SD/USB media player with built-in FM tuner, USB DAC, and optional Bluetooth streaming designed for commercial AV installations in restaurants, hotels, clubs, banquet halls, and entertainment venues. It plays WAV, MP3, and AAC files from front-panel SD card and USB flash drive ports, accepts USB audio from connected computers and smartphones via a front-panel USB-C DAC input, and adds FM radio broadcasting as a permanent content source. Balanced XLR and unbalanced RCA outputs connect to any professional or semi-professional audio system.

Product Description

The MP-800U addresses the shift away from CD-based media players in commercial installations by consolidating SD, USB, FM, USB DAC, and optional Bluetooth streaming into a single rack unit. Power-on-Play automatically starts playback at unit startup for unattended operation, and fade-in/fade-out ensures smooth transitions between tracks and sources. The FM tuner supports up to 20 user-preset channels recallable from the front panel or included remote control; a dedicated unbalanced RCA tuner output feeds FM audio independently from the main audio outputs. Auto-Cue, Auto-Ready, and Incremental Play functions manage playlist queuing for DJ and event use; Key Original allows pitch-independent speed adjustment while Pitch Control alters both tempo and key. Two output level controls provide independent attenuation — one for the combined XLR/RCA/headphone output, and a separate control for FM tuner output level. The optional AK-BT2 Bluetooth adapter adds wireless streaming from paired devices; the optional IF-E100 Ethernet control card enables network remote control. The MP-800U is available at Creation Networks alongside the optional AK-BT2 Bluetooth adapter and IF-E100 Ethernet card.

Key Features

• Multi-Source Playback — SD card, USB flash drive, USB DAC (USB-C), FM tuner, and optional Bluetooth from a single 1U unit.

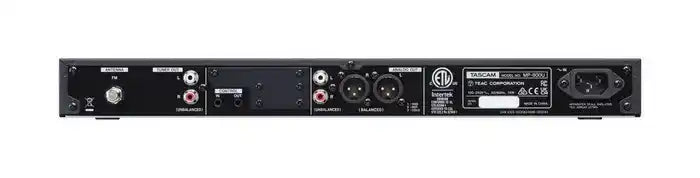

• Balanced XLR + Unbalanced RCA Outputs — Independent main audio and dedicated FM tuner RCA outputs for flexible system integration.
• FM Tuner with 20 Presets — Built-in FM tuner with dedicated RCA output and 20 user-programmable channel presets.
• Power-on-Play — Automatically starts playback at power-up for unattended commercial deployment.
• Fade-In/Fade-Out — Smooth automated source transitions for continuous background music.
• Auto-Cue / Auto-Ready / Incremental Play — Playlist management functions for DJ and event audio production.
• Optional Bluetooth via AK-BT2 — Add wireless streaming from smartphones and tablets with the AK-BT2 adapter.
• Optional Network Control via IF-E100 — Ethernet control card enables remote operation over a LAN.

Typical Applications

• Restaurant and hotel background music playback
• Club and entertainment venue media player
• Banquet hall and commercial space audio source
• Retail store background music with FM radio integration
• Conference room and boardroom media playback

Technical Specifications

Frequently Asked Questions

Does the MP-800U include Bluetooth built-in?

No. Bluetooth streaming requires the optional AK-BT2 Bluetooth adapter. The MP-800U is Bluetooth-ready but the adapter is sold separately.

Can the MP-800U be controlled over a network?

Yes, with the optional IF-E100 Ethernet control card installed, the MP-800U can be remotely operated over a LAN.

Does the FM tuner output share the same RCA connectors as the main audio output?

No. The FM tuner has a dedicated independent set of RCA output connectors, separate from the main XLR and RCA outputs, allowing FM to feed a separate zone or zone mixer input.

What file formats does the MP-800U support?

The MP-800U plays WAV, MP3, and AAC files from SD card and USB flash drive media.

What warranty applies to the MP-800U?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
