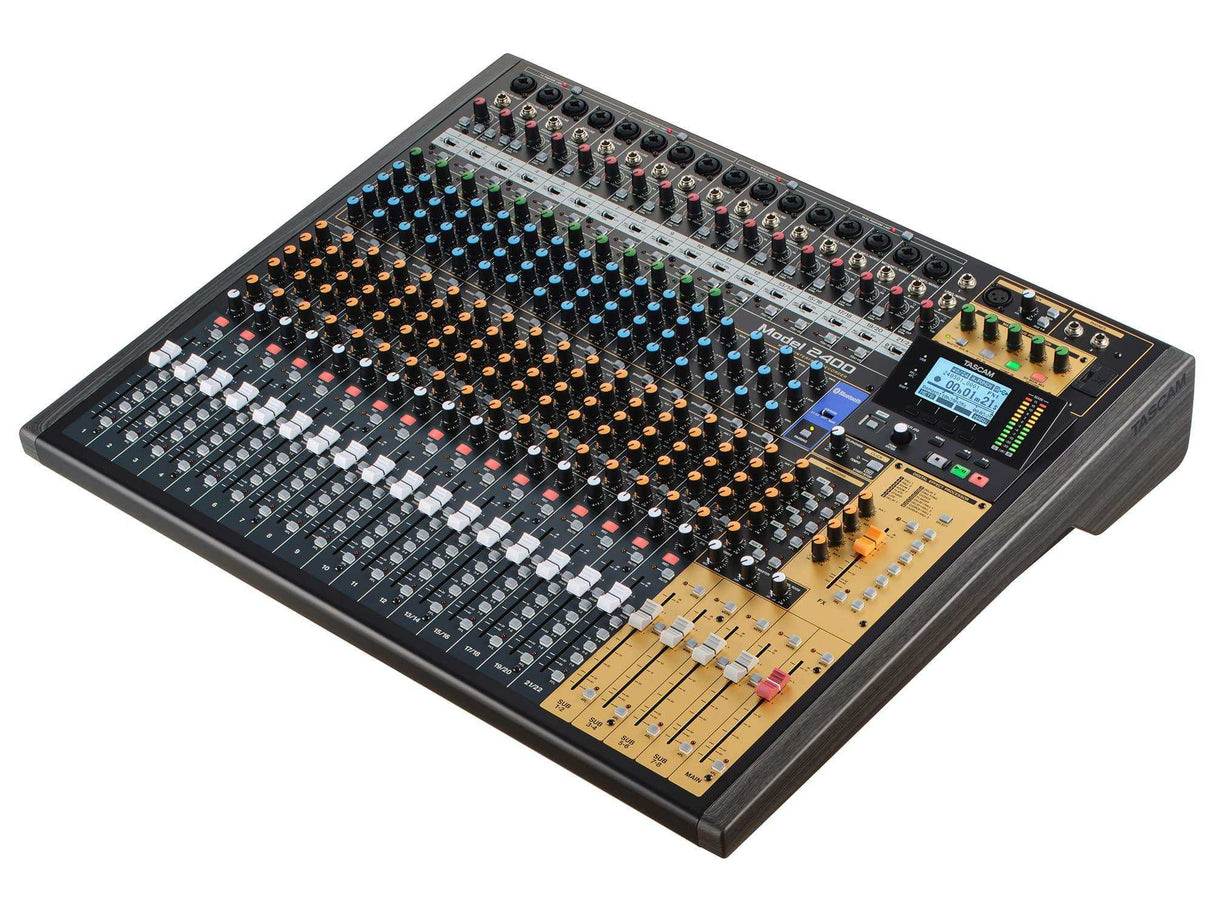

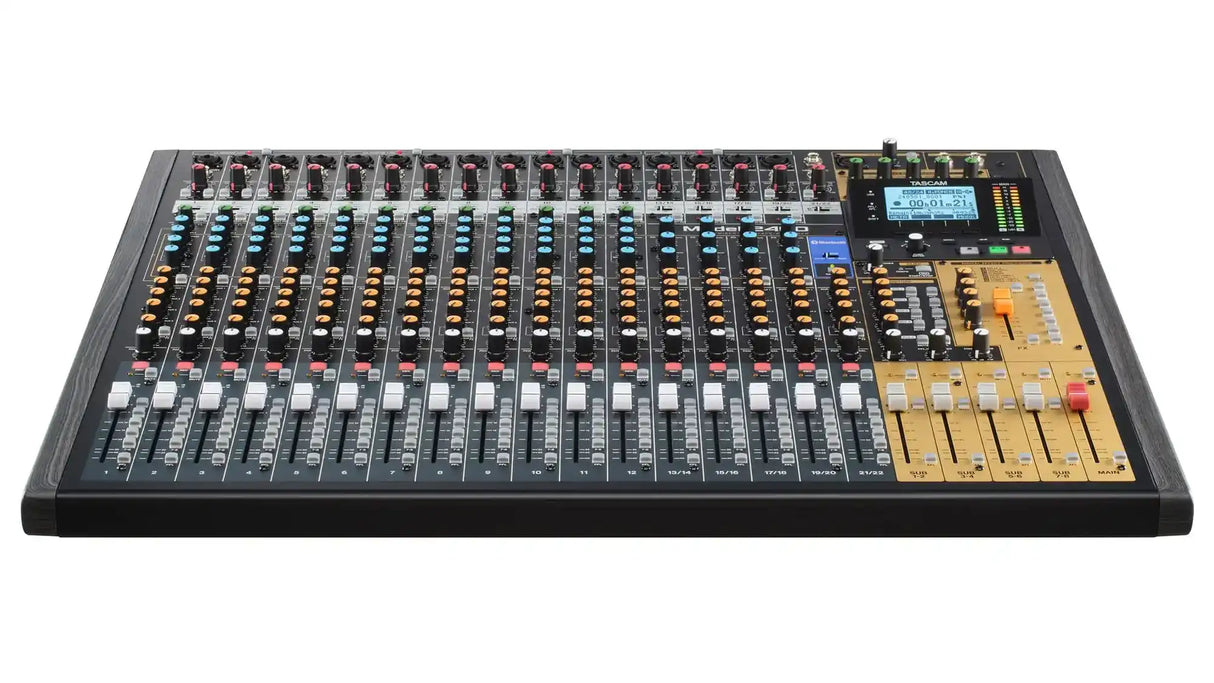

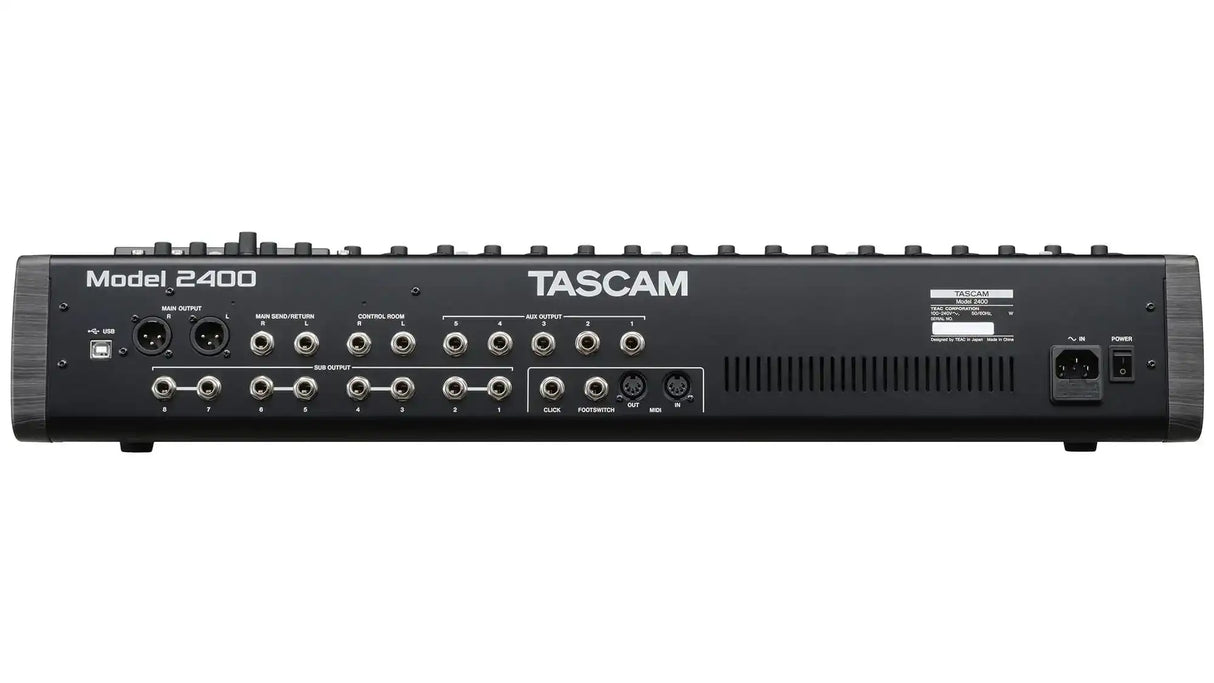

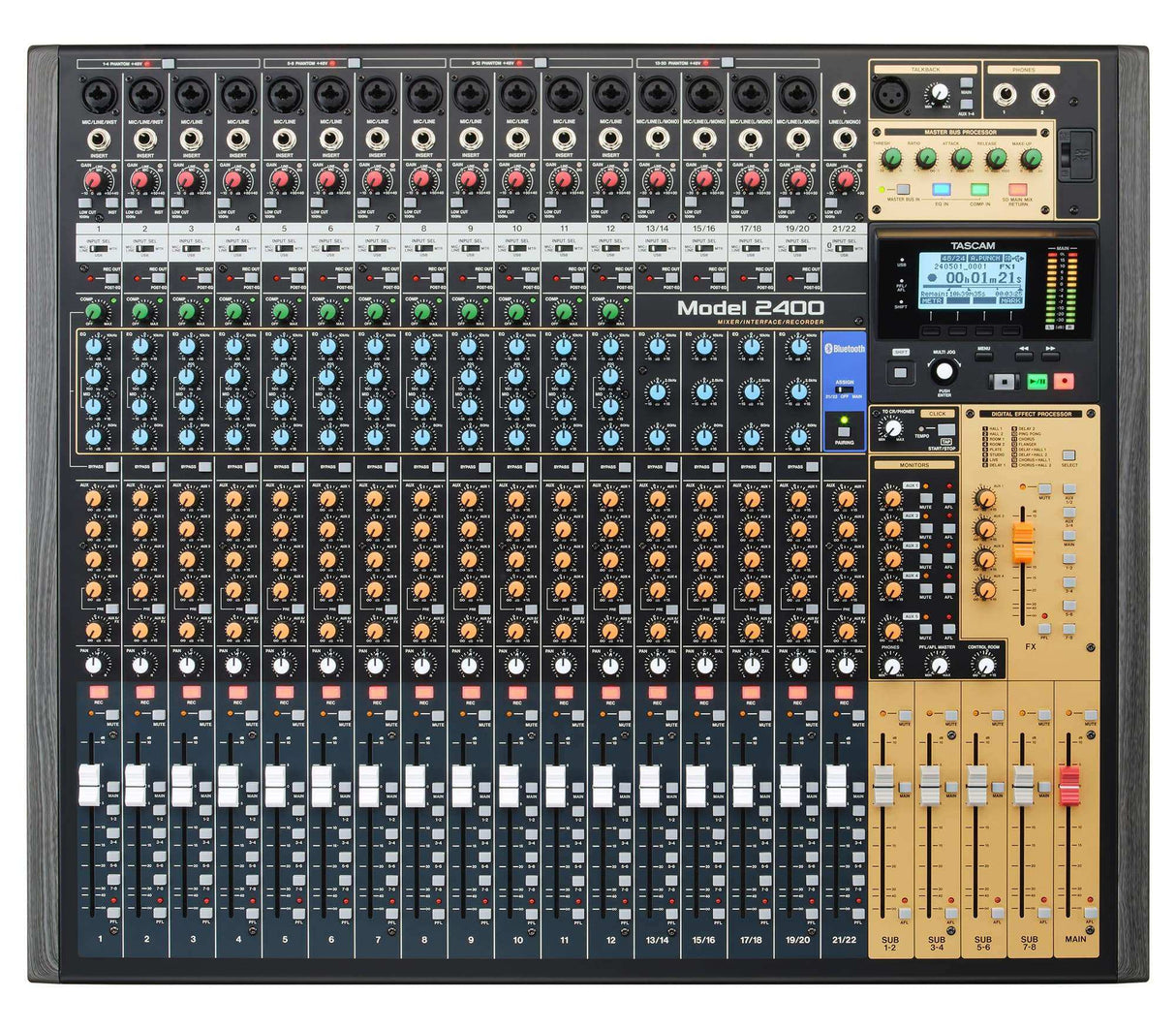

Tascam Model 2400 Mixer/Interface/Recorder
Model 2400 24-Track Flagship Analog Recording Console & Live Mixer with Audio Interface
22 channels, 24 tracks, one solution - from performance to recording, Model 2400 re-defines what you can do with a studio recording and live mixing console
Streamline Your Mix Process with Advanced Onboard Processing
The Model 2400’s versatility doesn’t compromise its mixing capabilities one bit. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you’ll have the pro-level mix control you need in any scenario. Taking your project from tracking to a final master on the Model 2400 couldn’t be simpler.
22 Channels and 24 Tracks, One Solution
With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.
Insert Professional Processors and Effects
Insert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.
Specs
| Recorder Specifications | |
| Recording Media / File Systems |
SD / FAT16, SDHC / FAT32, SDXC (up to 512 GB) / exFAT NOTE: Class 10 or higher |
| Recording File Format | WAV(BWF) |
| Playback Format | WAV(BWF) |
| Sampling Rate | 44.1k / 48k Hz |
| Quantization Bit Depth | 16 / 24 bit |
| Maximum Number of Recording Tracks | 24 (22 channel inputs + 2 stereo mix) |
| Analog Audio Input Ratings | |
| MIC Input Jacks | CH 1 - 12, 13, 15, 17, 19 |
| Connectors | XLR / TRS combo jack type XLR (1: GND, 2: HOT, 3: COLD) |
| Maximum Input Level | +10dBu (at LEVEL "MIN") |
| Nominal Input Level | -8dBu (at LEVEL "MIN") |
| Minimum Input Level | -58dBu (at LEVEL "MAX") |
| Gain Adjustable Range | 0 to 50 dB |
| Input Impedance | 1.9kΩ (CH 1 - 12), 2.4kΩ(CH 13 - 19) |
| Phantom Power Supply | +48V *On / Off for every 4 channels |
| LINE (TRS) jacks | CH 1 - 22 |
| Connectors | XLR / TRS combo jack type 6.3mm standard TRS jack (balanced) (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum Input Level | +22dBu |
| Nominal Input Level | +4dBu |
| Gain Adjustable Range | -10 to +40 dB(CH 1 - 12), -20 to +30 dB (CH 13 / 14 to 19 / 20), Fixed (CH 21 / 22) |
| Input Impedance | 22kΩ (mono), 11kΩ (stereo) |
| INST Input (TRS) Jacks *When INST on | CH 1 - 2 |
| Connectors | XLR / TRS combo jack type 6.3mm standard TS jack equivalent (unbalanced) (Tip: HOT, Ring: GND, Sleeve: GND) |
| Maximum Input Level | +19.8dBV |
| Nominal Input Level | 1.8dBV |
| Gain Adjustable Range | -10 to +40 dB |
| Input Impedance | 1MΩ |
| INSERT (TRS) Jacks | CH 1 - 12 |
| Connectors | 6.3mm standard TRS jacks (unbalanced) (Tip: SEND, Ring: RETURN, Sleeve: GND) |
| RETURN | |
| Maximum Input Level | +18dBu |
| Nominal Input Level | +0dBu |
| Input Impedance | 15kΩ |
| SEND | |
| Maximum Input Level | +18dBu |
| Nominal Input Level | +0dBu |
| Input Impedance | 100Ω |
| MAIN SEND/RETURN (TRS) Jacks | MAIN L / R |
| Connectors | 6.3mm standard TRS jacks (unbalanced) (Tip: SEND, Ring: RETURN, Sleeve: GND) |
| RETURN | |
| Maximum Input Level | +18dBu |
| Nominal Input Level | +0dBu |
| Input Impedance | 9kΩ |
| SEND | |
| Maximum Input Level | +18dBu |
| Nominal Input Level | +0dBu |
| Input Impedance | 100Ω |
| TALKBACK Mic Input Jack | |
| Connectors | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Maximum Input Level | -22dBu (at LEVEL "MIN") |
| Minimum Input Level | -65dBu (at LEVEL "MAX") |
| Gain Adjustable Range | 52dB |
| Input Impedance | 2.6kΩ |
| Analog Audio Output Ratings | |
| MAIN OUTPUT L / R (balanced) Connectors | |
| Connectors | XLR 3-32 equivalent (1: GND, 2: HOT, 3: COLD) |
| Maximum Output Level | +22dBu |
| Nominal Output Level | +4dBu |
| Output Impedance | 200Ω |
| CONTROL ROOM OUT L / R (pseudo-balanced) Jacks | |
| Connectors | 6.3mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum Output Level | +16dBu |
| Nominal Output Level | -2dBu |
| Output Impedance | 200Ω |
| AUX OUTPUT 1 - 5 (pseudo-balanced) Jacks | |
| Connectors | 6.3mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum Output Level | +16dBu |
| Nominal Output Level | -2dBu |
| Output Impedance | 200Ω |
| SUB OUTPUT 1 - 8 (pseudo-balanced) Jacks | |
| Connectors | 6.3mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Maximum Output Level | +16dBu |
| Nominal Output Level | -2dBu |
| Output Impedance | 200Ω |
| PHONES 1 / 2 Jack | |
| Connectors | 6.3mm standard stereo jack |
| Maximum Output Level | 80 mW + 80 mW (32Ω load) |
| Recommended Headphone Impedance | 16 to 600 Ω |
| Other Ratings | |
| CLICK out (pseudo-balanced) | |
| Connectors | 6.3mm standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) * Metronome click output |
| MIDI | |
| MIDI IN / MIDI OUT | |
| Connectors | 5-pin DIN |
| Format | MIDI 1.0 |
| USB | |
| Connector | USB Type-B |
| Transfer format | Mass storage class USB audio class 2.0 (USB class compliant) |
| USB Audio | |
| Sampling Rate | 44.1k / 48k Hz |
| Quantization Bit Depth | 24-bit |
| Number of Inputs | 24 channels *Output from this unit |
| Number of Outputs | 22 channels *Input to this unit |
| Input Channel EQ (Analog) | CH 1 - 12 |
| Low Cut | 100Hz, -18dB/Oct. |
| High Shelf | +/-15dB, 10kHz cutoff frequency |
| Mid Peaking | +/-15dB, 100 to 8k Hz, Q:0.55 fixed |
| Low shelf | +/-15dB, 80Hz cutoff frequency |
| Input Channel EQ (Analog) | CH 13 - 20 |
| Low Cut | 100Hz, -18dB/Oct. |
| High Shelf | +/-15dB, 10kHz cutoff frequency |
| Mid Peaking | +/-15dB, 2.5kHz Center frequency, Q:0.55 fixed |
| Low shelf | +/-15dB, 80Hz cutoff frequency |
| Master Section EQ (Digital) | |
| High Shelf | +/-12dB, 1.7k – 18k Hz |
| High Mid | +/-12dB, 32 – 18k Hz, Q:0.1 – 17.31 |
| Low Mid | +/-12dB, 32 – 18k Hz, Q:0.1 – 17.31 |
| Low Shelf | +/-12dB, 32 – 1.6k Hz |
| Master Section COMP (Digital) | |
| Threshold | -32 to 0 dB |
| Ratio | 1:1 to ∞:1 |
| Attack | 2 to 200 ms |
| Release | 10 to 1000 ms |
| Make-up | 0 to 20 dB |
| Built-in Effects Section | |
| Type |
1: HALL 1 / 2: HALL 2 / 3: ROOM 1 / 4: ROOM 2 / 5: PLATE / 6: STUDIO / 7: LIVE / 8: DELAY 1 / 9: DELAY 2 / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY + HALL 1 / 14: DELAY + HALL 2 / 15: CHORUS + HALL 1 / 16: CHORUS + HALL 2 NOTE: Selected types can be edited and registered in the library. |
| FOOTSWITCH | |
| Connector | 6.3mm standard TRS jack (Tip: footswitch 2, Ring: footswitch 1, Sleeve: GND) |
| Power | AC 100 to 240V, 50 / 60 Hz |
| Power Consumption | 65W |
| Weight | 14.0kg |
| Dimensions | |
| With Side Panels | 680.5(W) x 132.5(H) x 568.0(D) mm (Including protrusions) |
| Without Side Panels | 638.5(W) x 132.5(H) x 568.0(D) mm (Including protrusions) |
| Operating Temperature | 0 to 40˚C |
| Computer system requirements | |
| Windows | |
| Supported Operating System | Windows 11 Windows 10 64-bit |
| Computer hardware requirements |
Windows computer with a USB 2.0 (or higher) *Operation is not guaranteed using the TASCAM driver with ARM64 CPUs. |
| Mac | |
| Supported Operating System | macOS 14 Sonoma macOS 13 Ventura |
| Computer hardware requirements | Mac with a USB 2.0 (or higher) port |
| iOS / iPadOS Devices | iOS 17 / iPadOS 17 iOS 16 / iPadOS 16 |
| Model Mixer Settings Panel app | |
| Windows | |
| Supported Operating System | Windows 11 2023 Update (Version 23H2) Windows 10 64-bit 2022 Update (Version 22H2) |
| Mac | |
| Supported Operating System | macOS 14 Sonoma macOS 13 Ventura |
| iOS / iPadOS Devices | iOS 17 / iPadOS 17 iOS 16 / iPadOS 16 |
| Included Items | |
| Model 2400 x1 | |
| Power cord x1 | |
| Startup guide (including warranty) x1 | |
| TASCAM ID registration guide x1 | |
| Option | |
| AK-DC2400 : Dust cover | |
| RC-1F : Footswitch |
NOTE: 0dBV = 1Vrms, 0dBu = 0.775Vrms
Audio Performance
| Frequency Response | 20Hz to 30kHz ANALOG (+0.5 / -1.0 dB, MIC IN to MAIN OUT) 20Hz to 20kHz DIGITAL via MTR (+0.5 / -1.0 dB, MIC IN to MAIN OUT) |
| Residual Output Noise | -100dBu (MAIN OUT, MAIN mix off, All faders : min) |
| Equivalent Input Noise | -128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max, A-weighted) |
| Total Harmonic Distortion | 0.003% (MIC IN to MAIN OUT, nominal input level, +2dBu, 1kHz, GAIN min.) |
| Crosstalk | -80dB, between channels (1kHz, BPF) |
| Maximum Gain | 74dB (MIC to MAIN OUT) 54dB (MIC to INSERT OUT) 74dB (MIC to SUB OUT) 75dB (MIC to AUX 1/2 OUT) 24dB (USB/SD to MAIN OUT) (EQ flatten, PAN fully counter clockwise / fully clockwise) |
NOTE: 0dBu = 0.775Vrms
Recording Time
| Recording format | |
| WAV 16-bit / 44.1 kHz | 24 tracks: 4 hours 10 minutes (32 GB) |
| WAV 24-bit / 48 kHz | 24 tracks: 2 hours 33 minutes (32 GB) |
NOTE: The recording times shown above are not continuous recording times.They are total recordable times for SD/SDHC/SDXC cards.
Bluetooth®
| Output class | Class 2 (about 10m* unobstructed transmission distance) |
| Supported profile | A2DP |
| Supported A2DP codecs | SBC, AAC |
| Supported A2DP content protection | SCMS-T |
