Tascam MM-2D-E 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer

Save 24%
Tascam SKU: MM-2D-E
No reviews

Price:
Sale price$649.00 Regular price$849.00

Description

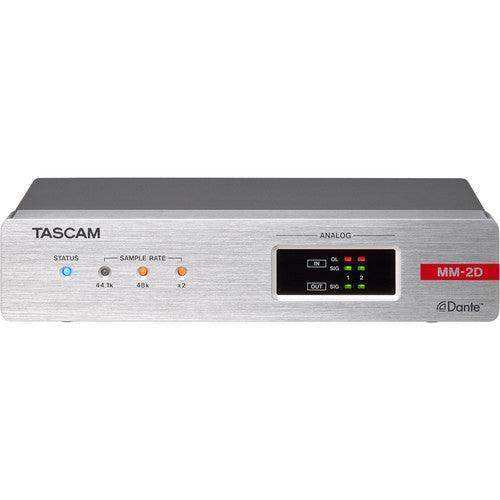

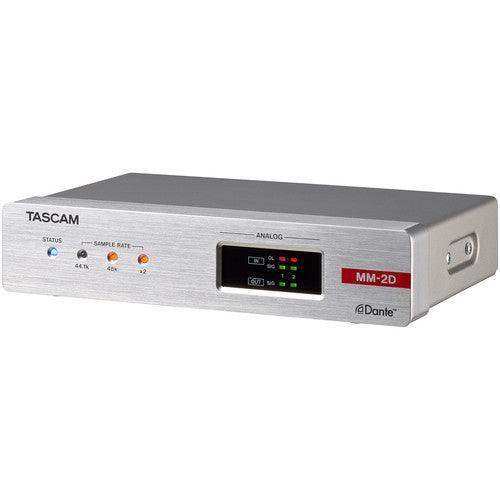

The MM-2D-E Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer from TASCAM is a compact half-rack converter that can be used to convert 2-channel mic/line input/output signals on Euroblock connectors into 4 Dante channels or the other way around for pro-audio applications.

The MM-2D-E Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets and four Euroblock plugs are included.

  • 2 analog input/outputs on Euroblock connectors
  • 4 Dante inputs/outputs
  • Supports PoE (Power over Ethernet)
  • Sample rate up to 24-bit / 96 kHz
  • Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 mode
  • Flexible scene preset function allows you to work in different area situations (up to 50 presets)
  • Two types of user-control software available for Windows/Mac/iOS/Android devices:
  •
  • TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
  • TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.
  • Remote control via Dante
  • Half-rack mountable size
  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor digital input/output signals
  • Configurable reference level (via remote control only)
  • Surface-mount adapters for installation under desks included

TASCAM MM-2D-E Specs

General
Formats Supported 44.1/48/88.2/96 kHz, 16/24-Bit, 2 Channels
Input/Output
Connector RJ-45
Transmission Protocol Dante
Gigabit Ethernet 1000 BASE-T (IEEE 802.3ab)
Cable Category 5e or Faster STP Cables
Analog Inputs

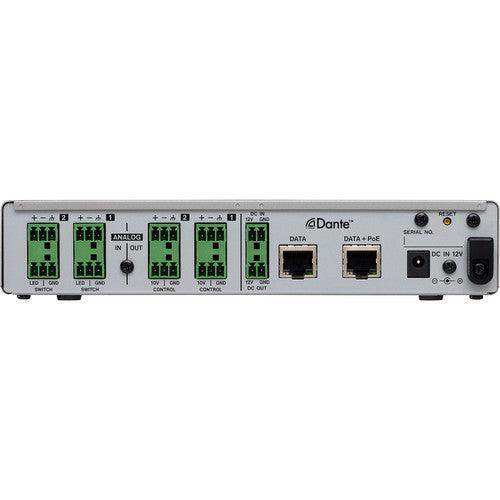

Connector Euroblock (Balanced) 3.81 mm Pitch
Minimum Input Level -74 dBu
Maximum Input Level +26 dBu
Input Impedance 2.0 kOhms or Higher
Analog Outputs
Connector Euroblock (Balanced) 3.81 mm Pitch
Nominal Output Levels +4 dBu (when Ref. Level not −9 dBFS)
+6 dBu (when Ref. Level set to −9 dBFS)
Maximum Output Level Switchable:
+15 dBu (Ref. Level: −9 dBFS)
+18 dBu (Ref. Level: −14 dBFS)
+20 dBu (Ref. Level: −16 dBFS)
+22 dBu (Ref. Level: −18 dBFS)
+24 dBu (Ref. Level: −20 dBFS)
Output Impedance 200 Ohms or Lower
Control Input/Output
External Control Interface LED/Switch: Euroblock (Balanced) 3.81 mm Pitch
LED Connectors: Open Collector (10 Ohms Output Impedance, 48V withstand Voltage, 35 mA Maximum Current)
Low level Maximum Output Voltage: 0.5 V
Switch Connectors Maximum Input Voltage: 5.5 V
High-Level Minimum Input Voltage: 2.31 V
Low-Level Maximum Input Voltage: 0.99 V
Audio Performance
Mic In to Dante Out Mic Amp EIN (Equivalent Input Noise): -125 dBu (150 Ohms, 22 kHz LPF+A, JEITA)
Frequency Response ±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)
Distortion 0.005 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Signal to Noise Ratio 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Crosstalk 100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Dynamic Range 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Frequency Response Dante In / Line Out:
±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)
Distortion (THD) 0.005 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Signal to Noise Ratio 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Crosstalk 100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Dynamic Range 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Other Features
Power PoE Class 0
TASCAM PS-P1220E AC Adapter (Sold Separately)
Power Consumption 6 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 8.4 x 1.8 x 5.4" / 21.4 x 4.4 x 13.6 cm
Weight 31.0 oz / 878.0 g
Packaging Info
Package Weight 2.955 lb
Box Dimensions (LxWxH) 13.5 x 13.1 x 9.3"
