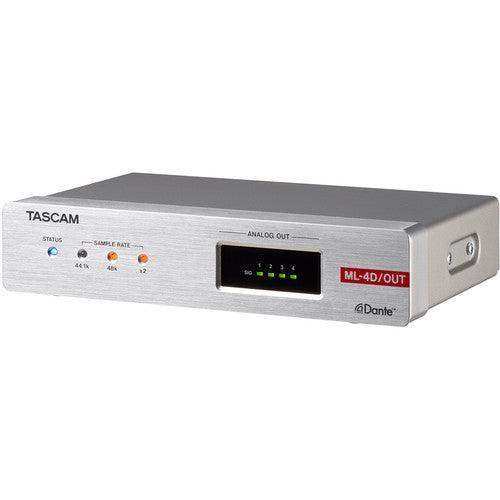

Tascam ML-4D/OUT-X 4-Channel Line-Output Dante Converter with Built-In DSP Mixer

Save 25%
Tascam SKU: ML-4D/OUT-X
No reviews
Price:
$599.00 $799.00

Description

The ML-4D/OUT-X is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-X supports up to 96kHz/24bit and uses XLR connectors for analog line output.

4 line output, 4 Dante input/output

The ML-4D/OUT-X not only converts Dante signals into 4-channel line signals; it can also convert them into 4-channel Dante output signals, making it possible to direct these to a Dante established network using the built-in DSP matrix mixer.

Half-rack size Dante Compact Processor Series

The Dante Compact Processor Series has a line-up of models with different input/output specifications:

  • MM-4D/IN, 4-channel mic/line input
  • ML-4D/OUT, 4-channel line output
  • MM-2D, 2-channel mic/line input/output
  • AE-4D, AES/EBU 4-channel input/output

For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.

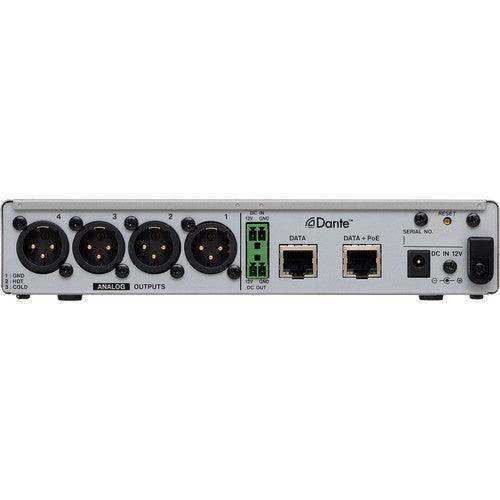

  • 4 analog outputs on 3-pin XLR connectors
  • 4 Dante inputs/outputs
  • Supports PoE (Power over Ethernet)
  • Sample rate up to 24-bit / 96 kHz
  • Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 mode
  • Flexible scene preset function allows you to work in different area situations (up to 50 presets)
  • Two types of user-control software available for Windows/Mac/iOS/Android devices:
  •
  • TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
  • TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.
  • Remote control via Dante
  • Half-rack mountable size

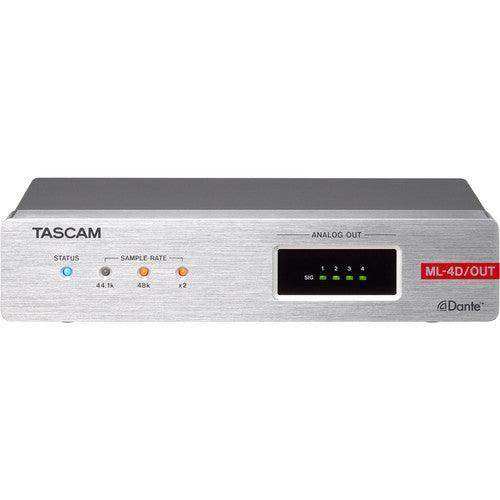

  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor analog output signals
  • Configurable reference level (via remote control only)
  • Surface-mount adapters for installation under desks included

TASCAM ML-4D/OUT-X Specs

 General
Formats Supported 44.1/48/88.2/96 kHz, 16/24-Bit, 4 Channels
Input/Output
Connector RJ-45
Transmission Protocol Dante
Gigabit Ethernet 1000 BASE-T (IEEE 802.3ab)
Cable Category 5e or Faster STP Cables
Analog Outputs
Connector 3-Pin XLR (1: Gnd, 2: Hot, 3: Cold)
Nominal Output Levels +4 dBu (when Ref. Level Not −9 dBFS)
+6 dBu (when Ref. Level Set to −9 dBFS)
Maximum Output Level Switchable:
+15 dBu (Ref. Level: −9 dBFS)
+18 dBu (Ref. Level: −14 dBFS)
+20 dBu (Ref. Level: −16 dBFS)
+22 dBu (Ref. Level: −18 dBFS)
+24 dBu (Ref. Level: −20 dBFS)
Output Impedance 200 Ohms or Lower
Audio Performance
Frequency Response Dante In / Line Out:
±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)
±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)
Distortion 0.002 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Signal to Noise Ratio 105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Crosstalk 100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Dynamic Range 108 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Other Features
Power PoE Class 0
TASCAM PS-P1220E AC Adapter (Sold Separately)
Power Consumption 4 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 8.4 x 1.8 x 5.4" / 21.4 x 4.4 x 13.6 cm
Weight 30.4 oz / 863 g
Packaging Info
Package Weight 2.85 lb
Box Dimensions (LxWxH) 12.7 x 9 x 4.1"
