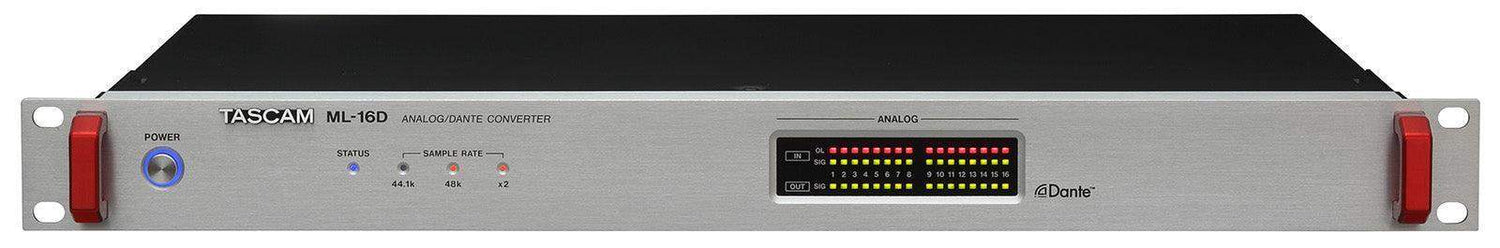

Tascam ML-16D 16-channel Analog/Dante Converter

Save 13%
Tascam SKU: ML-16D
No reviews
Price:
$1,999.00 $2,299.00

Description

The TASCAM ML-16D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize Sub-D format connectors.

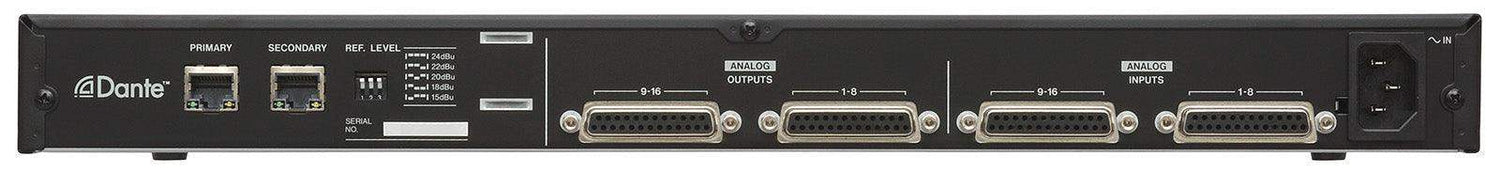

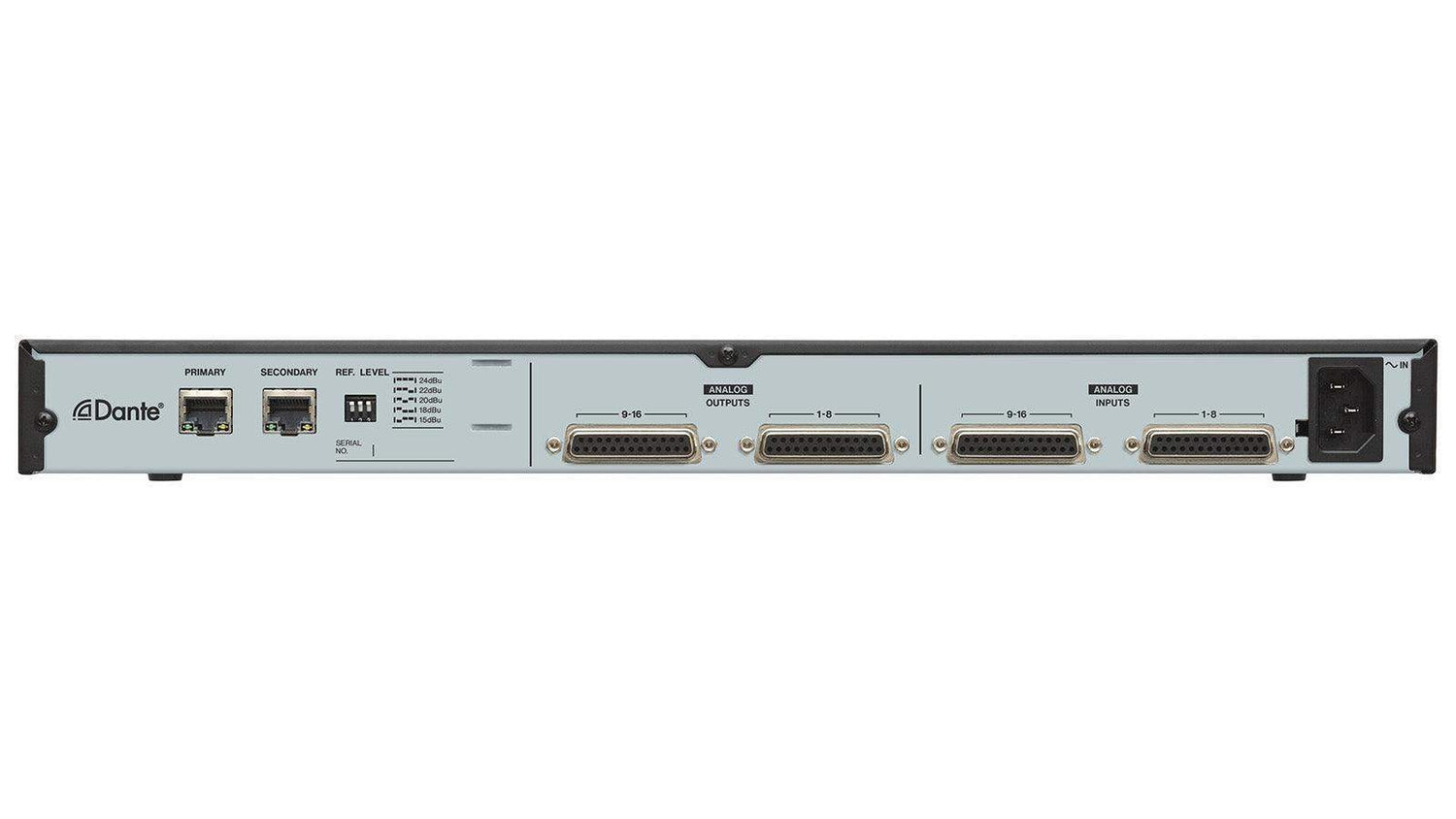

The ML-16D has 2 D-Sub inputs and 2 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into – or extracted from – the Dante audio stream.
Now compatible with SMPTE ST 2110-30

Dante module firmware V1.2.0.0 now supports SMPTE ST-2110-30, which will enable a smooth IP transmission of PCM digital audio for structuring broadcast systems.

* Audinate's provided Dante Domain Manager (DDM) v1.1 or higher is required for the operation of SMPTE ST 2110-30.

SMTPE ST 2110

 SMPTE ST-2110 is a video and audio IP network standard defined by SMPTE (Society of Motion Picture and Television Engineers). SMPTE ST-2110 is designed to separately embed and transmit video, audio, and ancillary signals, reducing the de-embedding processing load and network load of each device, while also enabling users to de-embed only the packet data they desire for further edit. ST-2110-30 realizes IP transmission of PCM digital audio, enabling high-precision synchronization using PTP (IEEE1588-2008) and low-latency transmission. It is expected to become a network standard protocol in next-generation broadcasting systems. About Dante Dante is a transmission protocol developed by Audinate. It enables multi-channel transmission (512ch IN/512ch OUT) and word-clock sync with high accuracy via network with gigabit Ethernet standard.
For further information about Dante, please visit Audinate website below.
https://www.audinate.com/

Specifications

  ML-32D ML-16D
Formats
Sampling frequency 44.1k / 48k / 88.2k / 96k Hz
Quantization bit rate 16 / 24-bit
Analog Inputs/Outputs
LINE INPUTS
Connector D-sub 25pin female × 2
Locking screws No.4-40 UNC (inch type)
Nominal input levels +4dBu,
+6dBu (only when maximum input level is +15dBu)
Maximum input levels +24dBu, +22dBu, +20dBu, +18dBu, +15dBu
(set by REF. LEVEL switches)
Input impedance 10kΩ or higher
LINE OUTPUTS
Connector D-sub 25pin female × 2
Connector No.4-40 UNC (inch type)
Output impedance 200Ω or lower
Applicable load impedance 2kΩ or higher
Nominal output levels +4dBu,
+6dBu (only when maximum output level is +15dBu)
Maximum output levels +24dBu, +22dBu, +20dBu, +18dBu, +15dBu
(set by REF. LEVEL switches)
PRIMARY/SECONDARY
Connector RJ-45 × 2
Transmission protocol Dante
Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab)
Cables Category 5e or faster STP cables
Power AC 100 - 240V, 50/60Hz
Power consumption 22W 14W
Dimensions (W×H×D) 19.0" × 1.77" × 11.96" / 483 × 45 × 303.8 mm
Weight 7.7 lbs. / 3.5 kg 7.3 lbs. / 3.3 kg
Operating temperature range 32˚F to 104˚F / 0˚C to 40˚C
Standard accessories Power cord, Rackmount screw kit, Owner’s Manual (including warranty)



Audio performance

ANALOG IN → Dante OUT

Frequency response 20Hz to 20kHz +0.1dB/–0.5dB (–16dBFS input, 44.1k/48kHz sampling frequency, JEITA)
20Hz to 40kHz +0.1dB/–0.5dB (–16dBFS input, 88.2k/96kHz sampling frequency, JEITA
Distortion (THD+N) 0.001% or lower (–1dBFS input, 1kHz, 44.1k/48k/88.2k/96kHz sampling frequency, JEITA)
S/N ratio 113dB or higher (44.1k/48k/88.2k/96kHz sampling frequency, JEITA)
Crosstalk 115dB or higher (1kHz, 44.1k/48k/88.2k/96kHz sampling frequency, JEITA)

Dante OUT → ANALOG IN

Frequency response 20Hz to 20kHz +0.1dB/–0.5dB (–16dBFS input, 44.1k/48kHz sampling frequency, JEITA)
20Hz to 40kHz +0.1dB/–1.0dB (–16dBFS input, 88.2k/96kHz sampling frequency, JEITA)
Distortion (THD+N) 0.001% or lower (–1dBFS input, 1kHz, 44.1k/48k/88.2k/96kHz sampling frequency, JEITA)
S/N ratio 110dB or higher (44.1k/48k/88.2k/96kHz sampling frequency, JEITA)
Crosstalk 115dB or higher (1kHz, 44.1k/48k/88.2k/96kHz sampling frequency, JEITA)
