Tascam MA-BT240 – 240W Mixing Amplifier with Bluetooth Receiver

Product Overview

The TASCAM MA-BT240 is a half-rack Class D mixing amplifier for small commercial spaces — retail, restaurants, cafes, schools, and offices — delivering 120W×2ch at 4Ω/8Ω for low-impedance systems or 240W×1ch at 100V/70V for high-impedance distributed loudspeaker arrays. Built-in Bluetooth reception, a switchable Mic/Line paging input with ducking, two additional line inputs, and a line output for zone cascading make it a self-contained background music and paging amplifier requiring minimal supporting equipment.

Product Description

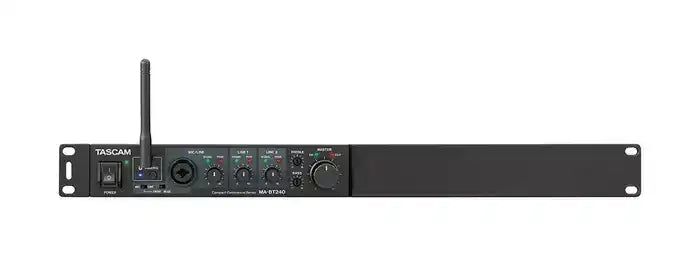

Class D efficiency gives the MA-BT240 high output power in a compact half-rack enclosure suitable for table-top, shelf, or rack-mount installation with the optional AK-RM05 kit. The high-impedance 100V/70V output drives standard distributed speaker wiring common in commercial installations, while the low-impedance stereo mode drives direct-connect bookshelf or ceiling speakers. The Mic/Line paging input automatically mutes all other sources — including Bluetooth and line inputs — when activated, ensuring announcement intelligibility without operator adjustment. Output EQ and a built-in high-pass filter shape the frequency response for the connected speaker system. A Euroblock terminal accepts an external volume controller cable for wall-mount level control at a counter or service desk. The Bluetooth antenna extends up to approximately 20 meters via RP-SMA cable for installations where the unit is mounted in a back-of-house equipment rack away from the Bluetooth source location. A line output cascades the mix to additional amplifiers for multi-zone deployments. The MA-BT240 is available at Creation Networks alongside the optional AK-RM05 rack-mount kit.

Key Features

• 120W×2ch / 240W×1ch Output — Switchable low-impedance stereo (4Ω/8Ω) or high-impedance mono (100V/70V) for distributed or direct-connect speaker systems.
• Built-In Bluetooth with Extendable Antenna — Wireless background music streaming with up to ~20m RP-SMA extension.
• Paging Input with Ducking — Switchable Mic/Line input mutes all other sources during announcements automatically.
• Output EQ and High-Pass Filter — Onboard tone shaping and overload protection for the loudspeaker system.
• Line Output for Zone Cascading — Extends the mix to additional amplifiers for multi-zone installations.
• External Volume Controller Support — Euroblock terminal for wall-mount remote level control.
• Half-Rack Compact Design — Table-top, shelf, or optional AK-RM05 rack deployment.

Typical Applications

• Retail store background music with paging
• Restaurant and cafe distributed audio amplification
• School and educational facility announcement system
• Office and hotel lobby ambient audio
• Commercial meeting space audio distribution

Technical Specifications

Frequently Asked Questions

What is the difference between the two MA-BT240 listings?

Both listings are for the same TASCAM MA-BT240 product. Specifications and features are identical across both.

Does the MA-BT240 support 70V and 100V distributed speaker systems?

Yes. The high-impedance output mode delivers 240W at 100V or 70V, compatible with standard distributed speaker wiring in commercial installations.

Can the Bluetooth antenna be moved for better reception?

Yes. The RP-SMA antenna extends up to approximately 20 meters via commercially available RP-SMA cable, allowing it to be positioned outside a rack enclosure.

Does the MA-BT240 require an external mixer for paging?

No. The built-in switchable Mic/Line input with automatic ducking handles paging directly, muting all other inputs when the microphone is active.

What warranty applies to the MA-BT240?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
