Tascam LM-8ST – 8-Stereo-Channel Rackmount Line Mixer

Product Overview

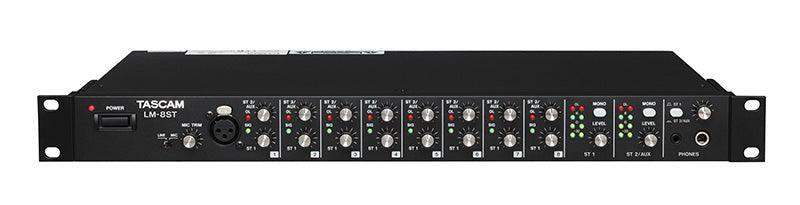

The TASCAM LM-8ST is a 1U rack-mount 8-stereo-channel line mixer with two independent output busses, designed for live performance stage submixing, studio subgroup mixing, and installed AV applications requiring a clean, compact analog line mixing solution. Eight pairs of balanced 1/4-inch TRS inputs, switchable between +4 dBu and -10 dBV, bus to XLR balanced and unbalanced RCA outputs on each of two independent stereo output busses (ST1 and ST2/AUX). A front-panel XLR mic input supports announcement and PA use alongside the line mixing function.

Product Description

The LM-8ST's eight stereo channel strips each accept two balanced 1/4-inch TRS inputs with a -10/+4 dB sensitivity switch, accommodating both consumer-level and professional line sources. Per-channel faders and a stereo pan control route signals to either or both output busses. The ST2/AUX buss can be used as a dedicated AUX send for external effects processors, with either pre-fader or post-fader bussing selectable for the alternate output. Both output busses provide balanced XLR and unbalanced RCA connectors, and master output level controls on each buss keep overall levels managed. Front-panel 1/4-inch and 3.5mm headphone jacks with independent level control enable monitoring. Channel 1 also accepts an XLR balanced mic input with trim control for simple announcement or microphone input alongside the line channels. The LM-8ST is available at Creation Networks.

Key Features

• 8 Stereo Input Channels — 8 pairs of balanced 1/4-inch TRS inputs switchable between +4 dBu and -10 dBV per channel.

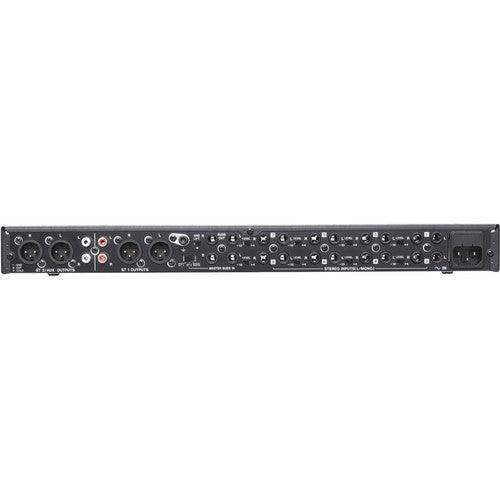

• Two Independent Output Busses — ST1 and ST2/AUX busses each with balanced XLR and unbalanced RCA outputs for flexible routing.
• ST2/AUX Pre/Post Fader Bussing — Configurable as a post-fader subgroup or pre-fader AUX send for external effects.
• XLR Mic Input on Channel 1 — Balanced mic input with trim control for simple PA use alongside line channels.
• Dual Headphone Outputs — 1/4-inch and 3.5mm headphone outputs with independent level control for monitoring.
• 1U Rack-Mount — Compact single rack-space for permanent installation and touring.

Typical Applications

• Keyboard and synthesizer stage submixing
• Studio line submixing and monitor mixing
• Installed AV source submixing in commercial spaces
• Broadcast facility line source management
• Conference room and boardroom audio submixing

Technical Specifications

Frequently Asked Questions

Can the LM-8ST accept both +4 dBu professional and -10 dBV consumer sources?

Yes. Each channel has a -10/+4 dB sensitivity switch accommodating both professional and consumer line levels on the same mixer.

How does the ST2/AUX buss differ from ST1?

The ST2/AUX buss can be configured as a pre-fader AUX send for routing to external effects processors, while ST1 is a standard post-fader summing buss. Both have XLR and RCA outputs.

Does the LM-8ST have a microphone input?

Yes. Channel 1 accepts an XLR balanced mic input with a front-panel trim control for simple PA use or voice input alongside the line channels.

What warranty applies to the LM-8ST?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
