Tascam IF-MA64/EX – 64-Channel MADI Interface Card with Optical & Coaxial for DA-6400

Product Overview

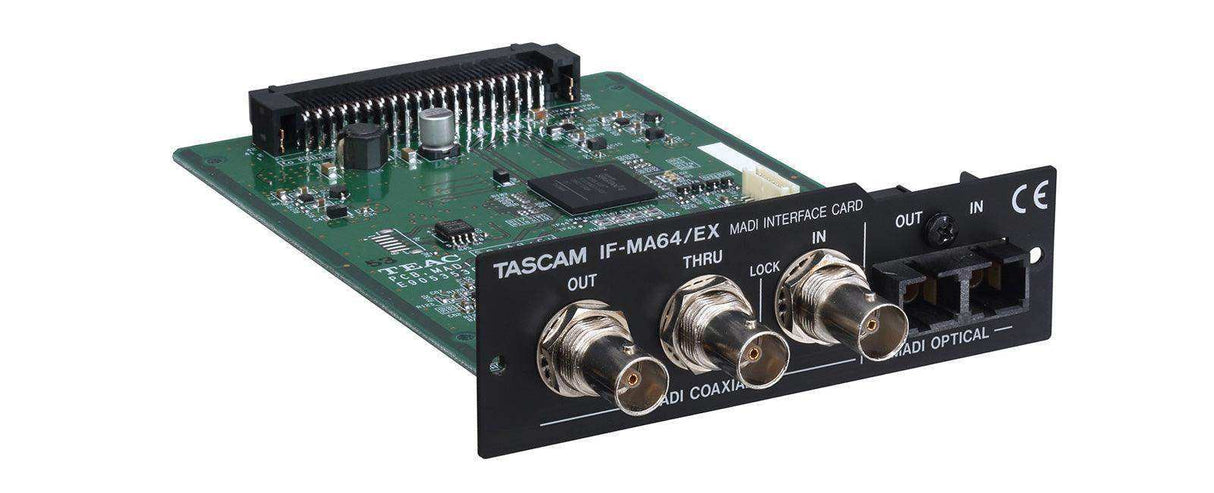

The TASCAM IF-MA64/EX is a 64-channel MADI expansion card for the DA-6400 and DA-6400dp multitrack recorders, providing both optical and coaxial MADI I/O from a single card installed in one rear expansion slot. Its defining feature for live and broadcast use is the fully redundant MADI pass-through: even if the DA-6400 loses power, MADI signal continues to flow from the input connector to any downstream device, making the DA-6400 a transparent backup recorder that does not interrupt the main audio path.

Product Description

Installing the IF-MA64/EX enables the DA-6400 to sit in-line between a MADI console and Pro Tools or another primary recording system. Audio from the console passes through the DA-6400 to the DAW continuously, while the DA-6400 records its own 64-channel backup copy. If a DAW session crashes or loses sync, the DA-6400 backup continues unaffected. The redundant MADI coaxial pass-through maintains this signal flow even during a complete power loss on the DA-6400, which no other single-device approach provides. Both optical (SC connector) and coaxial (BNC connector) MADI I/O are available on the IF-MA64/EX, while the IF-MA64/BN provides coaxial only at a lower price point. The card occupies one of the two available expansion slots on the DA-6400; the second slot can hold a Dante, AES/EBU, or second MADI card for additional I/O. The IF-MA64/EX is available at Creation Networks alongside the DA-6400, DA-6400dp, and IF-MA64/BN.

Key Features

• 64-Channel MADI I/O — Optical and coaxial MADI on a single card, carrying 64 channels in and 64 channels out.
• Redundant MADI Pass-Through — MADI signal passes from input to output even if the DA-6400 loses power entirely, enabling transparent in-line backup recording.
• Optical and Coaxial MADI — Both SC optical and BNC coaxial MADI connectors are provided for maximum system compatibility.
• In-Line DAW Backup — Place the DA-6400 between a MADI console and Pro Tools; the DA-6400 records silently while MADI passes through to the DAW.
• Dual-Slot Compatible — Occupies one expansion slot; the second can hold a Dante, AES/EBU, or second MADI card.

Typical Applications

• Live concert in-line MADI backup recording
• Broadcast studio Pro Tools DAW session backup
• Touring production MADI multitrack recording
• House of worship MADI console integration
• Auditorium and performing arts center recording

Technical Specifications

Frequently Asked Questions

What is the difference between the IF-MA64/EX and IF-MA64/BN?

The IF-MA64/EX provides both optical (SC) and coaxial (BNC) MADI I/O on a single card, plus the redundant coaxial MADI pass-through. The IF-MA64/BN provides coaxial MADI only and is a lower-cost option when optical connectivity is not required.

Does the MADI pass-through work during a DA-6400 power failure?

Yes. The redundant coaxial MADI pass-through on the IF-MA64/EX maintains signal flow from the MADI input to the output even if the DA-6400 loses power completely.

Can the IF-MA64/EX record while passing MADI through to another device?

Yes. The DA-6400 records its 64-channel backup copy while simultaneously passing MADI through to a downstream Pro Tools or DAW system without interruption.

Is the IF-MA64/EX included with the DA-6400?

No. The IF-MA64/EX is sold separately and installs into one of the two empty rear expansion slots on the DA-6400 or DA-6400dp.

What warranty applies to the IF-MA64/EX?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
