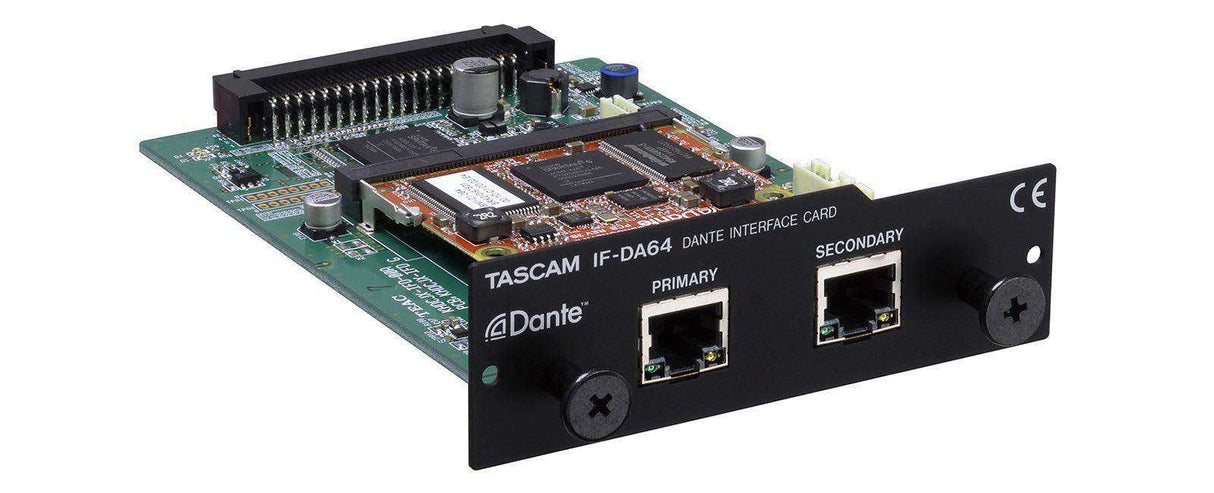

Tascam IF-DA64 – 64-Channel Dante Interface Card for DA-6400/DA-6400dp

Product Overview

The TASCAM IF-DA64 is a 64-channel Dante input/output expansion card designed for the DA-6400 and DA-6400dp 64-channel digital multitrack recorders. Installed in one of the DA-6400's two rear expansion slots, it connects the recorder directly to a Dante network, enabling 64 channels of audio to flow between the recorder and any Dante-compatible console, processor, or stage box on the same network over a single Cat5e/6 cable. The IF-DA64 also supports SMPTE ST 2110 for broadcast IP audio workflows.

Product Description

With the IF-DA64 installed, a DA-6400 or DA-6400dp can record 64 channels sourced directly from a Dante network — a single cable from a Dante-enabled digital console captures the entire show without a MADI splitter, analog patch, or separate recording interface. The card supports primary and secondary Dante network ports for redundant network streaming, and integrates with Dante Controller for channel routing and assignment. AES67 interoperability extends compatibility to Ravenna and other AES67-compliant audio-over-IP systems. SMPTE ST 2110 support makes the IF-DA64 suitable for broadcast facility deployments where IP audio runs on ST 2110 infrastructure. Two IF-DA64 cards can be installed simultaneously for 128 Dante channels if the application requires, or one slot can hold the IF-DA64 while the second carries a MADI card for simultaneous Dante and MADI I/O. The IF-DA64 is sold separately and is not included with the DA-6400 or DA-6400dp. The IF-DA64 is available at Creation Networks alongside the DA-6400 and DA-6400dp recorders.

Key Features

• 64-Channel Dante I/O — Carries 64 input and 64 output channels over a single Gigabit Ethernet cable for the DA-6400 series.
• Redundant Dante Ports — Primary and secondary network ports support redundant Dante streaming for live event reliability.
• SMPTE ST 2110 Support — Enables broadcast IP audio integration for facilities running ST 2110 infrastructure.
• AES67 Interoperability — Compatible with Ravenna and other AES67-based audio-over-IP systems.
• Dante Controller Compatible — Full Dante Controller routing for flexible channel assignment across the entire Dante network.
• Dual-Slot Compatible — Two cards can be installed in the DA-6400's dual expansion slots for simultaneous Dante and MADI I/O, or doubled Dante channel capacity.

Typical Applications

• DA-6400 live concert Dante network recording
• Broadcast studio IP audio recording via ST 2110
• Dante-networked console multitrack backup recording
• House of worship Dante system integration
• Auditorium and performing arts Dante recording

Technical Specifications

Frequently Asked Questions

Is the IF-DA64 included with the DA-6400?

No. The IF-DA64 is sold separately. The DA-6400 has two empty rear expansion slots that accept optional interface cards.

Can two IF-DA64 cards be installed in the same DA-6400?

Yes. Both expansion slots can accept an IF-DA64 card, or one slot can hold the IF-DA64 while the other holds a MADI or AES/EBU card for mixed-format I/O.

Does the IF-DA64 support SMPTE ST 2110?

Yes. The IF-DA64 supports SMPTE ST 2110 for broadcast IP audio integration alongside standard Dante and AES67 operation.

How does the IF-DA64 compare to the IF-MA64/EX MADI card?

The IF-DA64 carries 64 channels over Ethernet using Dante for network-based distribution. The IF-MA64/EX carries 64 MADI channels over optical or coaxial cable and includes a redundant MADI pass-through that maintains signal even if the DA-6400 loses power.

What warranty applies to the IF-DA64?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
