Tascam IF-AE16 – 16-Channel AES/EBU Input/Output Interface Card for DA-6400

Product Overview

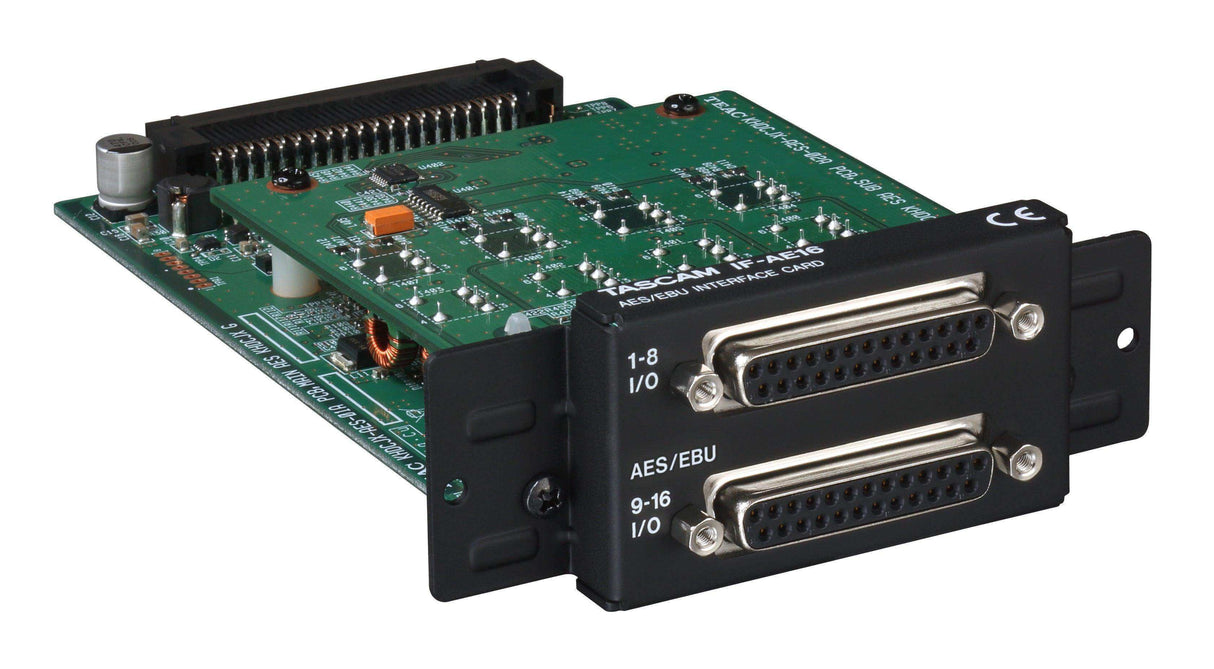

The TASCAM IF-AE16 is a 16-channel AES/EBU input/output expansion card for the DA-6400 and DA-6400dp multitrack recorders. It provides 16 channels of AES/EBU digital I/O via two D-Sub 25-pin connectors, expanding the DA-6400's connectivity to AES/EBU-equipped digital consoles, format converters, and outboard gear. Two IF-AE16 cards can be installed simultaneously in the DA-6400's dual expansion slots for 32 total AES/EBU channels.

Product Description

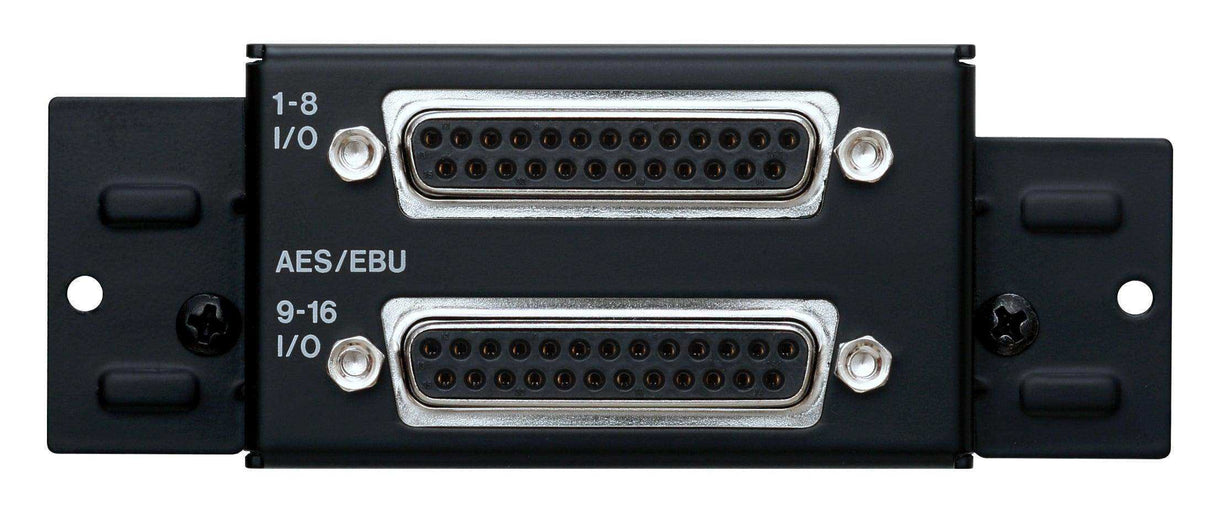

The IF-AE16 installs in one of the two rear expansion slots on the DA-6400 or DA-6400dp and immediately adds 16 AES/EBU input channels and 16 AES/EBU output channels via D-Sub 25-pin connectors on the card's rear bracket. This format is standard on large-format digital consoles and digital audio workstation interfaces, making the IF-AE16 the direct connection path for studio environments where MADI or Dante is not in use. The card also supports connection to the Sonicview digital recording console series, extending its applicability beyond DA-6400 recording to broader Sonicview system expansion. Breakout cables or boxes that convert D-Sub 25-pin to XLR are available separately for installations requiring XLR-terminated AES/EBU connections. The IF-AE16 is sold separately and is not included with the DA-6400. It is available at Creation Networks alongside the DA-6400 and compatible expansion cards.

Key Features

• 16-Channel AES/EBU I/O — 16 AES/EBU inputs and 16 AES/EBU outputs via D-Sub 25-pin connectors for direct digital console connectivity.
• DA-6400 and Sonicview Compatible — Installs in the DA-6400/DA-6400dp expansion slot and also compatible with TASCAM Sonicview series consoles.
• Dual-Card Support — Two IF-AE16 cards can occupy both DA-6400 expansion slots for 32 total AES/EBU channels.
• D-Sub 25-Pin Connectors — Industry-standard connector format for AES/EBU on large-format digital consoles and audio interfaces.

Typical Applications

• AES/EBU digital console recording via DA-6400
• Studio AES/EBU multitrack backup recording
• Broadcast facility AES/EBU format integration
• Sonicview console AES/EBU I/O expansion

Technical Specifications

Frequently Asked Questions

Is the IF-AE16 included with the DA-6400?

No. The IF-AE16 is sold separately and installs into one of the two rear expansion slots on the DA-6400 or DA-6400dp.

How many AES/EBU channels can the DA-6400 handle with two IF-AE16 cards?

With two IF-AE16 cards installed — one in each expansion slot — the DA-6400 provides 32 AES/EBU input and 32 AES/EBU output channels.

Is the IF-AE16 compatible with the Sonicview series?

Yes. The IF-AE16 is also compatible with TASCAM Sonicview recording console expansion slots.

What type of breakout cable is needed for XLR connections?

Standard D-Sub 25-pin to 8×XLR breakout cables (commonly called DB25-to-XLR or ELCO cables) connect the IF-AE16 to XLR-terminated equipment. These are available as standard third-party accessories.

What warranty applies to the IF-AE16?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
