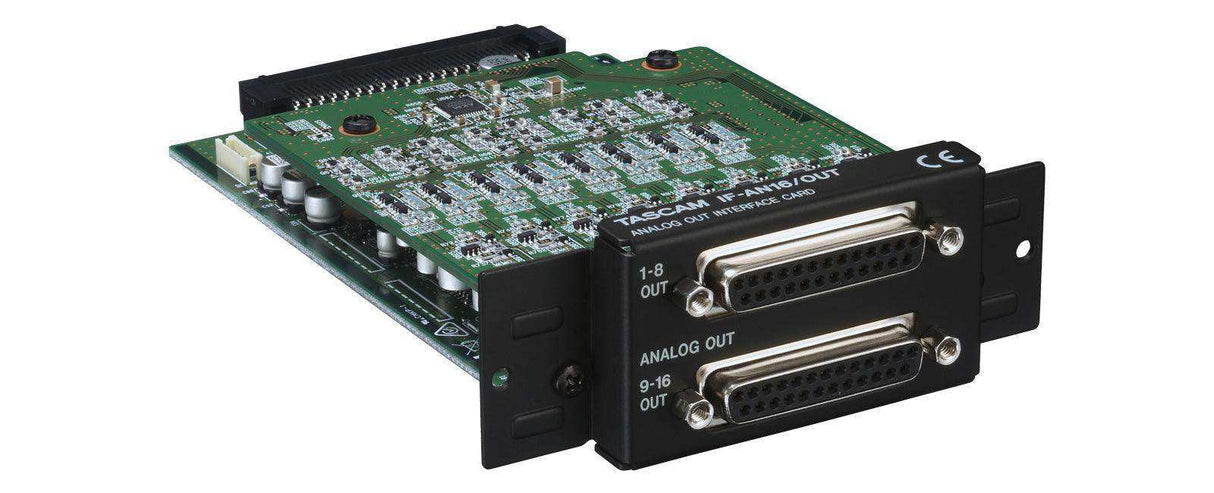

Tascam IF-AN16/OUT – 16-Channel Analog Output Interface Card for DA-6400

Product Overview

The TASCAM IF-AN16/OUT is a 16-channel analog output expansion card for the DA-6400, DA-6400dp, and Sonicview series, providing 16 channels of balanced line-level analog output via two D-Sub 25-pin connectors. It is the primary solution for engineers who need to return DA-6400 playback to an analog console, monitor system, or outboard processing chain without a separate DAC unit. The card installs in one of the DA-6400's two rear expansion slots and is sold separately.

Product Description

The IF-AN16/OUT converts up to 16 channels of digital audio from the DA-6400 or Sonicview to balanced analog line-level signals, making multitrack playback directly addressable to analog consoles, amplifiers, and outboard equipment. Two D-Sub 25-pin output connectors on the card's rear bracket are compatible with standard DB25-to-XLR or DB25-to-TRS breakout cables for connection to any analog I/O format. With one slot holding an IF-AN16/OUT and the second holding a Dante or MADI card, engineers have simultaneous analog playback and digital network I/O from a single DA-6400. The card is also compatible with the Sonicview digital recording console series for additional analog output expansion in that platform. The IF-AN16/OUT is available at Creation Networks alongside compatible DA-6400 expansion cards.

Key Features

• 16-Channel Analog Output — 16 balanced line-level analog outputs via two D-Sub 25-pin connectors for direct connection to analog consoles and outboard gear.
• DA-6400 and Sonicview Compatible — Installs in the DA-6400/DA-6400dp expansion slot and compatible with TASCAM Sonicview series.
• D-Sub 25-Pin Connectors — Industry-standard connector format, compatible with DB25-to-XLR and DB25-to-TRS breakout cables.
• Dual-Slot Compatible — Pair with a second card (Dante, MADI, AES/EBU) in the DA-6400's second expansion slot for simultaneous analog and digital I/O.

Typical Applications

• DA-6400 multitrack playback to analog console
• Studio analog monitoring from DA-6400 tracks
• Broadcast facility analog output expansion
• Sonicview console analog output expansion

Technical Specifications

Frequently Asked Questions

Does the IF-AN16/OUT also provide analog inputs?

No. The IF-AN16/OUT is an output-only card providing 16 balanced analog outputs. There is no analog input function on this card.

Can the IF-AN16/OUT and a Dante card be installed in the same DA-6400?

Yes. The DA-6400 has two independent expansion slots, so one can hold the IF-AN16/OUT and the other a Dante, MADI, or AES/EBU card simultaneously.

Is the IF-AN16/OUT compatible with the Sonicview?

Yes. The IF-AN16/OUT is compatible with TASCAM Sonicview series expansion slots in addition to the DA-6400/DA-6400dp.

What breakout cables are needed?

Standard DB25-to-XLR or DB25-to-TRS breakout cables connect the IF-AN16/OUT to analog console and outboard inputs. These are standard professional audio accessories available from multiple manufacturers.

What warranty applies to the IF-AN16/OUT?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
