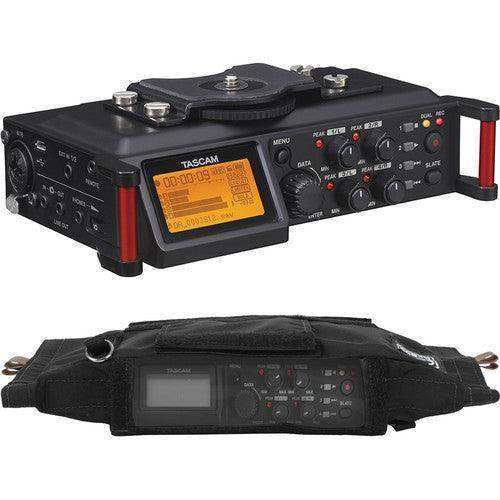

Tascam DR-70D 6-Input / 4-Track Multi-Track Field Recorder with Onboard Omni Microphones

Availability: Call for Availability
Availability: Direct Ship
Tascam SKU: DR-70D
No reviews
Price:
$299.00 $419.00

Description

For filmmaking, television, and web broadcast applications where you want to record direct sound and ambience, the TASCAM DR-70D multi-track field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphones, route audio to and from your camera, and conveniently monitor through headphones. With strap-friendly handles, a tripod mounting socket, and a camera-mount screw attachment, the DR-70D is compatible with a variety of setups and working styles.

Versatile powering methods and remote-control options make the DR-70D ideal for location recording and extended video shoots. Its four balanced XLR-1/4" combo inputs handle mic- or line-level signals (even +4 dBu from high-end sound mixers) and can independently supply phantom power. A 3.5mm mic/line input with selectable plug-in power is provided for situations that require you to record a lavalier microphone or the output of a wireless receiver. Utilize settings such as stereo safety track recording, limiting, and low-cut filtering to achieve a clean, undistorted recording.

 Onboard Omnidirectional Microphones The DR-70D's two onboard condenser microphones empower you to capture stereo sound without external mics. The omnidirectional mics respond to sound from all directions and are permanently spaced apart in an A/B configuration, yielding a broad, sphere-like pickup pattern. Use them in combination with a shotgun, handheld, or lav mic to record direct sound and ambience at the same time. Four XLR-1/4" Mic/Line Inputs with Independent Phantom Power Four locking XLR-1/4" TRS combo jacks support mic level and +4 dBu line level, allowing you to record external microphones or balanced outputs from a professional multichannel mixer. With individually switchable phantom power (24 or 48V) and up to 63 dB of gain, the low-noise HDDA (High Definition Discrete Architecture) mic preamps can serve a variety of microphones such as dynamic, ribbon, or condenser types. 3.5mm Mic/Line Input with Plug-In Power For maximum intelligibility and optimal vocal tone, recordists often prefer to use lavalier microphones that can be attached to their subject's clothing. The DR-70D's 3.5mm mini-jack input is designed for precisely that situation; clip a lav mic (available separately) to the talent, then plug it into the 3.5mm input on the DR-70D. Knowing that many lav mics require a small amount of voltage called plug-in power, TASCAM offers a selectable setting to supply plug-in power to the 3.5mm input. If you need to record the output of a wireless microphone receiver or an audio mixer, the 3.5mm input can accommodate it because it supports line-level signals and handles a maximum input level of +10 dBV.
  • Angled 128 x 64 pixel graphic LCD with backlight for easy viewing
  • Simple, efficient file transfer via USB 2.0 connection to a computer
  • Adjustable delay function eliminates time lags caused by differences in the distances of two sets of inputs from the sound source
  • Hold switch prevents accidental operation
  • MS decoding function allows proper stereo monitoring of a mid-side mic configuration
  • Automatically creates a new file when the maximum file size is reached
  • Resume function retains the last stop point even when the DR-70D is powered off/on
  • Track incrementing function allows a recording to be split by creating a new file when desired
  • File name format can be set to use a user-defined word or the date
  • The first six characters of the file name for recording can be set freely

TASCAM DR-70D Specs

 Portable Recorder
Number of Tracks 4
Maximum Sampling Rate 96 kHz / 24-Bit
Microphone Built-In Omnidirectional Electret Condenser Stereo Pair, A/B Configuration
Built-In Speaker No
Display Monochrome LCD (Backlit)
Memory Card Support SD (64 MB to 2 GB)
SDHC (4 GB to 32 GB)
SDXC (48 GB to 128 GB)
Internal Storage None
Recording
Audio File Formats BWF, WAV
Sample Rates WAV:
44.1 / 48 / 96 kHz
Bit Depth 16 / 24-Bit
Signal Processing & FX Delay, Limiter, Low-Cut Filter
Timecode Support No
Recording Time WAV 44.1 kHz/16-Bit:
1 Hr 41 Mins per GB (Stereo)
WAV 48 kHz/16-Bit:
1 Hr 33 Mins per GB (Stereo)
WAV 96 kHz/16-Bit:
46 Mins per GB (Stereo)
WAV 44.1 kHz/24-Bit:
1 Hr 7 Mins per GB (Stereo)
WAV 48 kHz/24-Bit:
1 Hr 2 Mins per GB (Stereo)
WAV 96 kHz/24-Bit:
31 Mins per GB (Stereo)
Connectivity
Analog I/O 4 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera/Line Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
1 x 2.5 mm TRS Female Remote Input
Digital I/O None
Phantom Power +24 / 48 V ± 4 V (Selectable on Individual Inputs)
Phantom Power Current 10 mA per Channel
Plug-In Power Yes
System Connection 1 x Micro-USB (2.0)
Performance
Frequency Response Line Outputs, Mic/Line Inputs:
20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz, JEITA)
Gain/Trim Range Balanced Inputs:
+21 dB to +63 dB
Unbalanced Inputs:
+3 dB to +38 dB
Max Input Level Mic Inputs:
0 dBu
Line Inputs:
+20 dBu
1/8" Inputs:
+10 dBV
Camera Inputs:
+6 dBV
Max Output Level Camera Outputs:
-24 dBV
Line Outputs:
+6 dBV
Headphone Output Power 20 mW per Channel
Impedance Mic Inputs:
2 Kilohms
Line Inputs:
≥10 Kilohms
1/8" / 3.5 mm Inputs:
10 Kilohms
Camera Outputs:
200 Ohms
Line Outputs:
200 Ohms
SNR ≥92 dB
THD ≤0.02%
EIN -120 dBu
Power
Power Options Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type 4 x AA (Not Included)
Approximate Battery Life WAV 44.1 kHz/16-Bit:
6 Hours (AA Alkaline, 2 Channels, Phantom Off, Recording)
3.5 Hours (AA Alkaline, 2 Channels, Phantom On, Recording)
11 Hours (AA Alkaline, Recording, Built-In Mic)
6.25 Hours (AA NiMH, 2 Channels, Phantom Off, Recording)
3.25 Hours (AA NiMH, 2 Channels, Phantom On, Recording)
10.5 Hours (Alkaline, Recording, Built-In Mic)
AC/DC Power Adapter 5 VDC at 1 A (Not Included)
Physical
Mounting Options 1/4"-20 Female, Shoe Mount
Operating Temperature 32 to 140°F / 0 to 40°C
Dimensions 6.7 x 2.2 x 4.2" / 169 x 55.2 x 106.5 mm
Weight 1.2 lb / 530 g (without Batteries)
1.4 lb / 625 g (with Batteries)
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 10.75 x 8.15 x 4.35"
