Tascam DR-60DMKII – 4-Track Audio Field Recorder & Mixer for DSLR

Product Overview

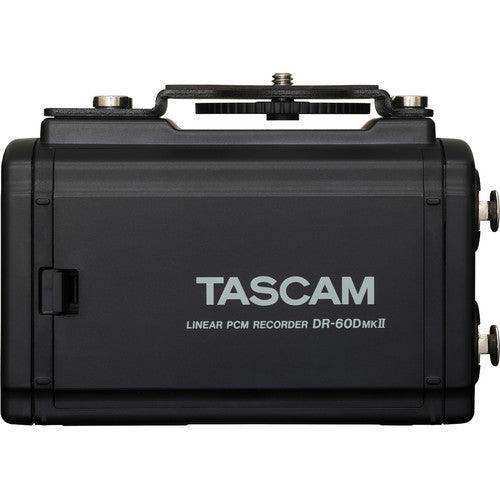

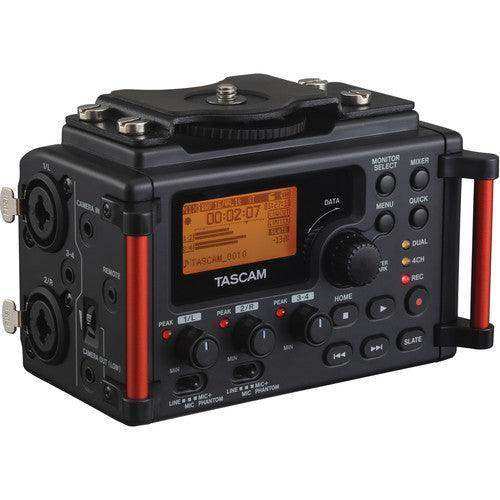

The TASCAM DR-60DMKII is a 4-track audio field recorder and mixer designed for DSLR, mirrorless, and cinema camera workflows. It mounts under or above a camera via tripod threads and a shoe mount, providing two HDDA XLR/combo mic inputs at 96kHz/24-bit with 64 dB of gain, a Camera Out connector for reference track delivery to the camera, and three independent output paths for simultaneous monitoring and distribution. At 5.25 inches wide and powered by 4 AA batteries, it is engineered for on-set production without interfering with camera operation.

Product Description

The DR-60DMKII's HDDA (High Definition Discrete Architecture) preamps achieve an EIN of -120 dBu and up to 64 dB of gain, delivering clean, low-noise mic signals from the kind of mics used in professional dialog recording. Inputs 1/L and 2/R can be linked for stereo operation or used independently for dual-mono setups. An internal digital mixer allows pan, level, limiter, high-pass filter (40/80/120 Hz), and per-channel delay adjustment without external hardware. Camera Out attenuates the DR-60DMKII's mix to mic-level for delivery to DSLR cameras that lack line-level inputs. A Line Out feeds a separate recorder or monitor. A headphone output provides direct monitoring with independent level control. All batteries can be replaced without removing the unit from the camera or tripod rig. The unit also accepts USB bus power. The DR-60DMKII is available at Creation Networks alongside the DR-70D.

Key Features

• 4-Track Recording at 96kHz/24-bit — Dual mono and stereo recording with simultaneous Camera Out reference track delivery.
• HDDA Mic Preamps, -120 dBu EIN, 64 dB Gain — Ultra-low-noise discrete preamps for professional dialog recording.

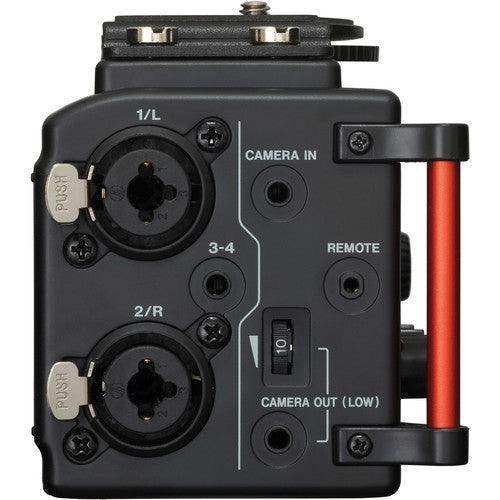

• 2 XLR/Combo Inputs with Phantom Power — Accepts condenser, dynamic, and ribbon mics with locking Neutrik-style combo jacks.
• Camera Out Connector — Adjustable mic-level output sends reference mix to DSLR/mirrorless cameras.

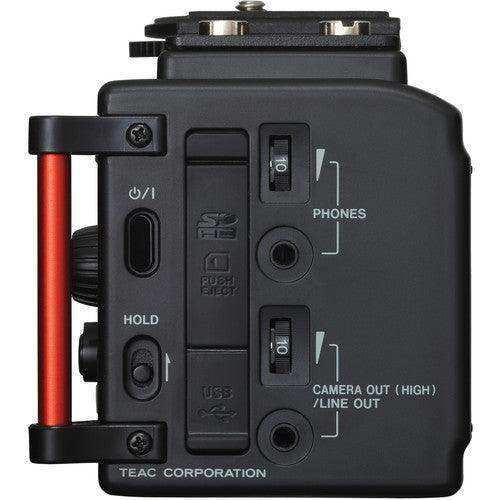

• 3 Independent Outputs — Camera Out, Line Out, and Headphone Out each with independent level control.
• Internal Digital Mixer — Pan, level, limiter, HPF (40/80/120 Hz), and delay per channel without external gear.
• Camera Mount Compatible — Top screw and bottom tripod threads for under-camera or shoe-mount attachment.

Typical Applications

• DSLR and mirrorless camera dual-system audio recording
• Documentary and indie film location sound
• Wedding and event camera-mounted audio capture
• ENG broadcast camera audio
• Video journalism field production

Technical Specifications

Frequently Asked Questions

Can the DR-60DMKII deliver audio to a DSLR camera while recording its own files?

Yes. The Camera Out sends an attenuated mix to the camera simultaneously while the DR-60DMKII records its own 4-track files, providing both a reference track in the camera and a high-quality separate recording.

Does the battery need to be removed to replace it while mounted on a camera?

No. The battery compartment is accessible without removing the DR-60DMKII from the camera or tripod rig.

What is the advantage of the HDDA preamps over standard mic preamps?

HDDA preamps use discrete circuitry with an EIN of -120 dBu and up to 64 dB of gain, providing lower noise and greater gain range than integrated-circuit preamps for transparent dialog recording in demanding field conditions.

What warranty applies to the DR-60DMKII?

TASCAM products purchased through authorized dealers including Creation Networks carry TASCAM's standard limited warranty.
