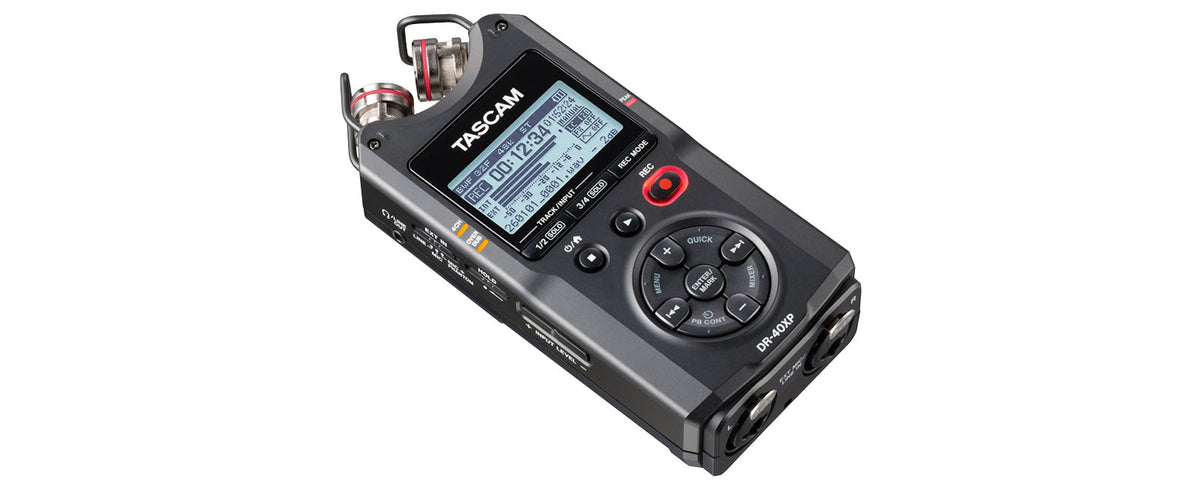

Tascam DR-40XP – 32-Bit Float 4-Track Audio Recorder/USB Interface

What is the Tascam DR-40XP?

The Tascam DR-40XP is a handheld 4-track audio recorder and USB audio interface built around 32-bit float recording, designed for field recording, interview and lecture capture, and location sound work. It records up to four channels simultaneously using its adjustable A-B/X-Y stereo condenser microphones plus two XLR/TRS combo inputs with phantom power, making it equally useful as a standalone field recorder or as a USB microphone and audio interface for conferencing and content creation. AV integrators and production teams spec the DR-40XP where a portable, self-contained recorder needs to double as a computer or mobile audio interface without a separate mixer. It fits interview capture, courtroom and lecture recording, and ENG-style field production where reliable, clip-free audio is the priority.

How does the Tascam DR-40XP work?

The DR-40XP records to microSD/SDXC media (up to 512GB) in WAV/BWF at 16-bit, 24-bit, or 32-bit float resolution, at sample rates up to 96 kHz, or in MP3 for smaller file sizes. Recording in 32-bit float removes the need to set input gain precisely before a take — the format captures an extremely wide dynamic range, so an unexpected loud passage or a quiet aside is preserved without clipping and can be leveled in post. The two front-mounted microphone capsules can be rotated between an X-Y (coincident cardioid) pattern for tighter stereo imaging or an A-B (spaced) pattern for a wider stereo field, giving one recorder two distinct capture geometries for interviews, ambient recording, or music rehearsal capture. Two combo XLR/TRS inputs with switchable +24V/+48V phantom power let the unit take external lavalier mics, shotgun mics, or line-level feeds from a mixer, and the built-in HDDA mic preamps (EIN of -126dBu or lower) keep the noise floor low even at high gain. All four inputs — two internal mic channels and two external — can record to separate tracks at once, which is useful for a lecture capture setup running a podium mic and a room mic in parallel, or an interview rig running a host mic and a guest mic independently. Beyond standalone recording, the DR-40XP functions as a USB-C 2-in/2-out audio interface and USB microphone, so it plugs directly into a laptop, desktop, or iOS device for conferencing, streaming, or DAW tracking — a practical option when a conference room or huddle space needs a higher-quality USB mic than a built-in laptop mic without adding a separate audio interface to the rack. Onboard tools include a limiter and peak reduction to protect against clipping on unpredictable sources, a built-in tuner, reverb effects for monitoring, and overdub capability for building up multitrack recordings in the field. Power comes from 3 AA batteries (alkaline, NiMH, or lithium) rated for approximately 18 hours on the internal mics, or USB bus power/an optional AC adapter for stationary use at a podium or conference table.

What are the key features of the Tascam DR-40XP?

• 32-bit float recording — captures an extremely wide dynamic range so clipping from unexpected input levels is virtually eliminated, reducing the need for gain-staging in the field.
• Adjustable A-B/X-Y stereo microphones — the built-in capsules rotate between two stereo geometries, letting one recorder handle both tight interview capture and wide ambient recording.
• Dual XLR/TRS combo inputs with phantom power — accepts external condenser or dynamic mics and line-level sources alongside the built-in mics for true 4-channel simultaneous recording.
• USB-C 2-in/2-out audio interface and USB mic — connects directly to a computer or iOS device for conferencing, streaming, or DAW recording without a separate interface.
• Ultra-low noise HDDA mic preamps — an EIN of -126dBu or lower keeps recordings clean even when gain is pushed for quiet sources.
• microSDXC support up to 512GB — long-form lecture, meeting, or multi-day field sessions fit on a single card.
• Limiter and peak reduction — protects recordings from clipping on unpredictable or sudden loud sources without constant manual monitoring.
• Approximately 18 hours of battery life — runs a full day of interviews, field sessions, or lecture capture on 3 AA batteries.
• Overdub and built-in effects — supports layered recording and includes onboard reverb and a tuner for musicians working in the field.

Where is the Tascam DR-40XP typically used?

• Government space
• Commercial meeting space
• Training room
• Broadcast studio

Technical Specifications

Specifications sourced from Tascam's official US product page: tascam.com/us/product/dr-40xp/spec

Pair the DR-40XP with the Tascam AK-DR11C MKII accessory pack for studio-adjacent use, the AK-DR11G MKIII field accessory pack for outdoor and location work, or the RC-10 wired/wireless remote for hands-free start/stop control. Browse the full line of Tascam recorders and audio equipment for additional DR-Series options.
