Tascam DR-40X 4-Channel / 4-Track Portable Audio Recorder and USB Interface with Adjustable Mic

Save 34%
Tascam SKU: DR-40X
No reviews

Price:
Sale price$199.00 Regular price$299.99

Description

For podcasts, sound effects, and music recording applications, the TASCAM DR-40X portable handheld recorder is capable of capturing up to four tracks of high-resolution audio with no external microphones required. Its onboard unidirectional condenser mics can be set for a wide or tight stereo image, and may be used simultaneously with the mic/line combo inputs. Equally adept as a handheld device or when used in stand- or camera-mounted setups, the DR-40X can handle anything from sampling sessions and interviews to podcasts and live concerts.

Flexible powering methods—batteries, USB bus power, or an AC adapter—make the DR-40X well suited to on-the-go recording, all-day video shoots, and computer-based audio production. Need to patch in external mics or an outboard mixer? The DR-40X's two balanced XLR-1/4" inputs accommodate mic- or line-level signals (even +4 dBu from professional consoles) and can supply phantom power if needed. Whether you use the built-in mics or an external source, selectable modes such as stereo safety track recording, peak reduction, limiting, and auto level give you options for achieving a clean, undistorted recording.

Adjustable Unidirectional Microphones The DR-40X's onboard condenser microphones empower you with stereo capture or 2 x stereo capture when used with the mic/line inputs. For sources producing sound pressure levels up to 125 dB, loud concerts won't be a problem. Whereas the DR-05X has omnidirectional mics in a fixed A-B setup, the DR-40X features adjustable unidirectional mics. The unidirectional mics minimize the pickup of sound entering from the rear of the capsules, resulting in a more focused tone with fewer reflections.

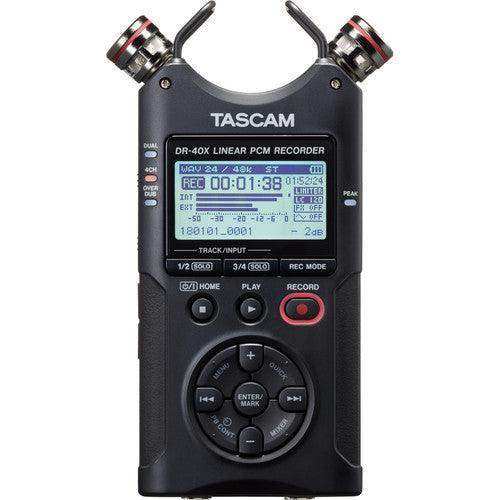

Easily pivot the capsules between two mic configurations to complement your sound source—use the A-B position (capsules facing outward) to produce a wide stereo image, or switch to the X-Y position (capsules facing inward) if you need a tighter stereo field with a strong center presence and fewer phase differences.

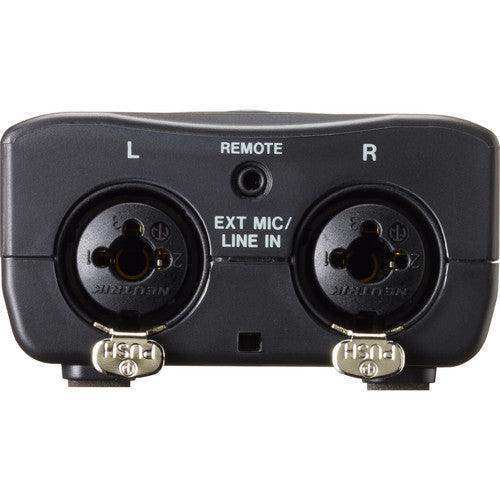

Dual XLR-1/4" Mic/Line Inputs with Phantom Power Dual Neutrik XLR-1/4" TRS combo jacks support mic level and +4 dBu line level, allowing you to record external microphones or balanced outputs from a mixer or FOH console. With switchable 24V or 48V phantom power and ample gain, the mic preamps can serve a variety of microphones such as dynamic, ribbon, or condenser types. Using the onboard microphones, you can capture the ambient sound of an audience while recording direct from an external console, which is ideal for live performances.
  • 128 x 64 pixel graphic LCD with backlight
  • Quick-menu button for easy access to various functions
  • 10 menu languages
  • Delay compensation function eliminates time lags caused by differences in the distances of two sets of inputs from the sound source
  • Overwrite function for punch-in recording with one level of undo
  • Dictation mode designed for human voice recording and transcription
  • Adjustable playback speed from 0.5 to 2 times (in 0.1 increments) at 44.1 kHz or 48 kHz
  • MS decoding function allows proper stereo monitoring of a mid-side mic configuration
  • Automatically creates a new file when the maximum file size is reached
  • File divide/delete functions
  • Loop/repeat playback
  • Resume function retains the last stop point even when the DR-40X is powered off/on
  • Jump-back playback feature skips back 1 to 10, 20, or 30 seconds during playback
  • Up to 99 marks (locate points) per track
  • Track increment creates new files at arbitrary locations during recording
  • File name format can be set to use a user-defined word or the date
  • The first six characters of the file name for recording can be set freely
  • Playlist function
  • Chromatic tuner
  • Built-in rubber feet reduce the transfer of vibrations from a desktop or table to the onboard microphones

TASCAM DR-40X Specs

Portable Recorder
Number of Tracks 4
Maximum Sampling Rate 96 kHz / 24-Bit
Microphone Built-In Cardioid Condenser Stereo Pair, A/B or X/Y Configuration
Built-In Speaker Yes, 0.3 W Mono
Display Monochrome LCD (Backlit)
Memory Card Support SD (64 MB to 2 GB)
SDHC (4 GB to 32 GB)
SDXC (48 GB to 128 GB)
Internal Storage None
Recording
Audio File Formats BWF, MP3, WAV
Sample Rates WAV:
44.1 / 48 / 96 kHz
MP3:
44.1 / 48 kHz
Bit Depth 16 / 24-Bit
Bit Rates 32 to 320 kb/s (Record)
32 to 320 kb/s + VBR (Playback)
Signal Processing & FX Auto Gain, EQ, Limiter, Low-Cut Filter, Reverb
Timecode Support No
Recording Time WAV 44.1 kHz/16-Bit:
1 Hr 41 Mins per GB (Stereo)
WAV 48 kHz/16-Bit:
1 Hr 33 Mins per GB (Stereo)
WAV 96 kHz/16-Bit:
46 Mins per GB (Stereo)
WAV 44.1 kHz/24-Bit:
1 Hr 7 Mins per GB (Stereo)
WAV 48 kHz/24-Bit:
1 Hr 2 Mins per GB (Stereo)
WAV 96 kHz/24-Bit:
31 Mins per GB (Stereo)
MP3 32 kb/s:
74 Hrs 32 Mins per GB (Stereo)
MP3 64 kb/s:
37 Hrs 16 Mins per GB (Stereo)
MP3 96 kb/s:
24 Hrs 50 Mins per GB (Stereo)
MP3 128 kb/s:
18 Hrs 38 Mins per GB (Stereo)
MP3 192 kb/s:
12 Hrs 25 Mins per GB (Stereo)
MP3 256 kb/s:
9 Hrs 19 Mins per GB (Stereo)
MP3 320 kb/s:
7 Hrs 27 Mins per GB (Stereo)
Connectivity
Analog I/O 2 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output
Digital I/O None
Phantom Power +24 / 48 V, Selectable On/Off (Applied to All Inputs)
Phantom Power Current 3 mA per Channel
Plug-In Power No
System Connection 1 x Micro-USB (2.0)
Performance
Frequency Response 20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA)
20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA)
20 kHz to 40 kHz +1/-3 dB (at 96 kHz, JEITA)
Max Input Level Mic Inputs:
-3 dBV
Line Inputs:
+20 dBu
Max Output Level +2 dBV
Headphone Output Power 20 mW per Channel into 32 Ohms
Impedance Mic Inputs:
2.2 Kilohms
Line Inputs:
10 Kilohms
Line Outputs:
12 Ohms
SNR Line Outputs:
>92 dB
THD ≤0.05%
Microphone Max SPL 125 dB SPL
Power
Power Options Battery, USB Bus Power, AC/DC Power Adapter
Battery Type 3 x AA (Included)
Approximate Battery Life WAV 44.1 kHz/16-Bit:
18 Hours (Alkaline, 2 Channels, Phantom Off, Recording)
6.5 Hours (Alkaline, 2 Channels, Phantom On, Recording)
9 Hours (Alkaline, All Channels, Phantom Off, Recording)
19.5 Hours (Alkaline, 2 Channels, Playback, with Headphones)
16 Hours (Alkaline, All Channels, Playback, with Headphones)
16 Hours (NiMH, 2 Channels, Phantom Off, Recording)
5.5 Hours (NiMH, 2 Channels, Phantom On, Recording)
7.5 Hours (NiMH, All Channels, Phantom Off, Recording)
15.5 Hours (NiMH, 2 Channels, Playback, with Headphones)
12.5 Hours (NiMH, 2 Channels, Playback, with Headphones)
WAV 96 kHz/24-Bit:
14.5 Hours (Alkaline, 2 Channels, Phantom Off, Recording)
8.5 Hours (Alkaline, All Channels, Phantom Off, Recording)
14 Hours (Alkaline, 2 Channels, Playback, with Headphones)
14 Hours (Alkaline, All Channels, Playback, with Headphones)
11 Hours (NiMH, 2 Channels, Phantom Off, Recording)
7.5 Hours (NiMH, All Channels, Phantom Off, Recording)
12 Hours (NiMH, 2 Channels, Playback, with Headphones)
11.5 Hours (NiMH, All Channels, Playback, with Headphones)
MP3 128 kb/s:
16 Hours (Alkaline, 2 Channels, Phantom Off, Recording)
9 Hours (Alkaline, All Channels, Phantom Off, Recording)
16.5 Hours (Alkaline, 2 Channels, Playback, with Headphones)
16.5 Hours (Alkaline, All Channels, Playback, with Headphones)
12.5 Hours (NiMH, 2 Channels, Phantom Off, Recording)
8 Hours (NiMH, All Channels, Phantom Off, Recording)
13 Hours (NiMH, 2 Channels, Playback, with Headphones)
13.5 Hours (NiMH, All Channels, Playback, with Headphones)
AC/DC Power Adapter VDC Not Included
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Mounting Options 1/4"-20 Female
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 2.8 x 6.1 x 1.4" / 70 x 155 x 35 mm (Mics Closed)
3.5 x 6.1 x 1.4" / 90 x 155 x 35 mm (Mics Open)
Weight 7.5 oz / 213 g (without Batteries)
9.9 oz / 282 g (with Batteries)
Packaging Info
Package Weight 1.05 lb
Box Dimensions (LxWxH) 15.95 x 8.2 x 1.06"
